Resistors / Metal Glaze/Thick Film Resistors / RC0805JR-0710RL
Datasheets
RC0805JR-0710RL by:

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RC0805JR-0710RL by YAGEO Corporation

Results Overview of RC0805JR-0710RL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0805JR-0710RL Information

RC0805JR-0710RL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0805JR-0710RL

Part # Distributor Description Stock Price Buy
DISTI # 68AK7886
Newark Res, 10R, 5%, 0.125W, Thick Film, 0805 Rohs Compliant: Yes |Yageo RC0805JR-0710RL RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 5000
  • 5,000 $0.0060
  • 10,000 $0.0050
$0.0050 / $0.0060 Buy Now
DISTI # 68R0259
Newark Res, Thick Film, 10R, 5%, 0.125W, 0805, Resistance:10Ohm, Resistance Tolerance:± 5%, Power Rating:125Mw, Resistor Case/Package:0805 [2012 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:150V Rohs Compliant: Yes |Yageo RC0805JR-0710RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 202
  • 1 $0.0030
  • 25 $0.0030
  • 50 $0.0030
  • 100 $0.0030
  • 250 $0.0030
  • 500 $0.0030
  • 1,000 $0.0030
  • 2,500 $0.0030
$0.0030 Buy Now
DISTI # 311-10ARCT-ND
DigiKey RES 10 OHM 5% 1/8W 0805 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 14304
In Stock
  • 1 $0.1000
  • 10 $0.0180
  • 50 $0.0168
  • 100 $0.0153
  • 500 $0.0138
  • 1,000 $0.0122
  • 5,000 $0.0061
  • 10,000 $0.0053
$0.0053 / $0.1000 Buy Now
DISTI # RC0805JR-0710RL
Avnet Americas SMD Chip Resistor, 10 ohm, ? 5%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC0805JR-0710RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel 70000
  • 5,000 $0.0046
  • 10,000 $0.0045
  • 20,000 $0.0044
  • 30,000 $0.0043
  • 40,000 $0.0043
$0.0043 / $0.0046 Buy Now
DISTI # 68R0259
Avnet Americas SMD Chip Resistor, 10 ohm, ? 5%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 68R0259) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 4 Days Container: Ammo Pack 0
  • 1 $0.0230
$0.0230 Buy Now
DISTI # 603-RC0805JR-0710RL
Mouser Electronics Thick Film Resistors - SMD 10 Ohms 125 mW 0805 5% RoHS: Compliant 85724
  • 1 $0.1000
  • 10 $0.0180
  • 100 $0.0150
  • 1,000 $0.0120
  • 5,000 $0.0060
  • 10,000 $0.0050
$0.0050 / $0.1000 Buy Now
Future Electronics RC Series 0805 0.125 W 10 Ohm ±5% ±100 ppm/°C SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks Container: Reel 1045000
Reel
  • 5,000 $0.0071
  • 15,000 $0.0068
  • 20,000 $0.0068
  • 50,000 $0.0066
  • 75,000 $0.0064
$0.0064 / $0.0071 Buy Now
Onlinecomponents.com Res Thick Film 0805 10 Ohm 5% 1/8W ¦200ppm/¦C SMD Paper T/R RoHS: Compliant 55000 In Stock
  • 1 $0.0079
  • 25,000 $0.0072
  • 50,000 $0.0071
  • 100,000 $0.0069
  • 150,000 $0.0068
  • 500,000 $0.0065
$0.0065 / $0.0079 Buy Now
Bristol Electronics   223034
RFQ
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 5 %, 200 PPM, 10 OHM, SURFACE MOUNT, 0805, LEAD FREE 156784
  • 1 $0.1500
  • 25,001 $0.0175
  • 57,144 $0.0150
$0.0150 / $0.1500 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 5 %, 200 PPM, 10 OHM, SURFACE MOUNT, 0805, LEAD FREE 16591
  • 1 $0.0224
  • 1,430 $0.0084
  • 5,953 $0.0042
$0.0042 / $0.0224 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 5 %, 200 PPM, 10 OHM, SURFACE MOUNT, 0805, LEAD FREE 7928
  • 1 $0.0750
  • 401 $0.0250
  • 2,001 $0.0150
$0.0150 / $0.0750 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 5 %, 200 PPM, 10 OHM, SURFACE MOUNT, 0805, LEAD FREE 7744
  • 1 $0.0420
  • 715 $0.0140
  • 3,572 $0.0084
$0.0084 / $0.0420 Buy Now
DISTI # RC0805JR-0710RL
TTI Thick Film Resistors - SMD 10 Ohms 125 mW 0805 5% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 645000
In Stock
  • 5,000 $0.0048
  • 10,000 $0.0047
  • 15,000 $0.0046
  • 30,000 $0.0045
$0.0045 / $0.0048 Buy Now
Future Electronics RC Series 0805 0.125 W 10 Ohm �5% �100 ppm/�C SMT Thick Film Chip Resistor Min Qty: 5000 Package Multiple: 5000 1045000
null
  • 5,000 $0.0071
  • 15,000 $0.0069
  • 20,000 $0.0068
  • 50,000 $0.0067
  • 75,000 $0.0065
$0.0065 / $0.0071 Buy Now
DISTI # RC0805JR-0710R
TME Resistor: thick film, SMD, 0805, 10Ω, 0.125W, ±5%, -55÷155°C Min Qty: 1 10855
  • 1 $0.0877
  • 10 $0.0232
  • 50 $0.0176
  • 100 $0.0156
  • 500 $0.0120
  • 1,000 $0.0106
  • 2,000 $0.0095
  • 5,000 $0.0081
  • 10,000 $0.0072
  • 100,000 $0.0049
$0.0049 / $0.0877 Buy Now
DISTI # RC0805JR-0710RL
IBS Electronics SMD CHIP RESISTOR 10 OHM &#xBD, 5% 125 MW 0805 [2012 METRIC] THICK FILM GENERAL PURPOSE Min Qty: 25000 Package Multiple: 1 126500
  • 20,000 $0.0025
  • 25,000 $0.0026
  • 100,000 $0.0024
  • 200,000 $0.0023
  • 625,000 $0.0022
$0.0022 / $0.0026 Buy Now
DISTI # WRC31413
Rutronik RC0805 10R 5% 0,125W TK200 RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel Stock DE - 685000
Stock HK - 10000
Stock US - 0
Stock SG - 0
  • 5,000 $0.0031
  • 15,000 $0.0025
  • 25,000 $0.0024
  • 50,000 $0.0024
  • 300,000 $0.0023
$0.0023 / $0.0031 Buy Now
DISTI # SMC-RC0805JR-0710RL
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 11824
RFQ
DISTI # SMC-RC0805JR-0710RL
Sensible Micro Corporation Smt Resistor 110K 5% 0805 Lf RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1005 Container: Tape & Reel 2952
RFQ
Chip 1 Exchange INSTOCK 513506
RFQ
DISTI # RC0805JR-0710RL
Avnet Abacus SMD Chip Resistor 10 ohm 5 125 mW 0805 2012 Metric Thick Film General Purpose - Tape and Reel (Alt: RC0805JR-0710RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 810000
Buy Now
DISTI # RC0805JR-0710RL
Avnet Asia SMD Chip Resistor, 10 ohm, ? 5%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose (Alt: RC0805JR-0710RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 6 Days 0
  • 5,000 $0.0027
  • 25,000 $0.0023
  • 125,000 $0.0017
  • 250,000 $0.0017
  • 500,000 $0.0016
  • 1,000,000 $0.0016
  • 2,500,000 $0.0016
$0.0016 / $0.0027 Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 49425
RFQ
Component Electronics, Inc IN STOCK SHIP TODAY 4095
  • 1 $0.0800
  • 100 $0.0600
  • 1,000 $0.0500
$0.0500 / $0.0800 Buy Now
Cytech Systems Limited RES 10OHM 5% 0.125W 0805 73003
RFQ
DISTI # RMC0805-10R-Y
Maritex Chip Resistor, SMD, 0805, 10R, 5%, 1/8W Min Qty: 100 Package Multiple: 100 46525
  • 1 $0.0910
  • 10 $0.0170
  • 100 $0.0140
  • 500 $0.0140
  • 1,000 $0.0110
  • 5,000 $0.0050
  • 10,000 $0.0050
$0.0050 / $0.0910 Buy Now
New Advantage Corporation RC Series 0805 0.125 W 10 Ohms 5% �100 ppm/�C SMT Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 1160000
  • 15,000 $0.0120
  • 1,160,000 $0.0111
$0.0111 / $0.0120 Buy Now
Vyrian Resistors 233122
RFQ

Part Details for RC0805JR-0710RL

RC0805JR-0710RL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

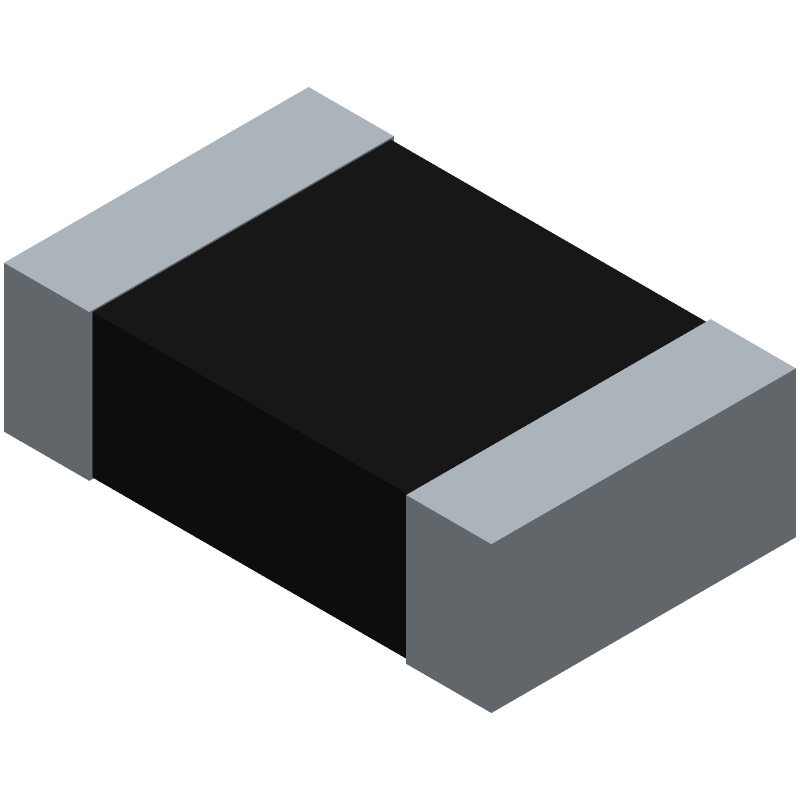

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0805JR-0710RL Part Data Attributes

Parametric Data
RC0805JR-0710RL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0805JR-0710RL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 18 Weeks, 4 Days
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 10 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 150 V

Alternate Parts for RC0805JR-0710RL

This table gives cross-reference parts and alternative options found for RC0805JR-0710RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0805JR-0710RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RK73B2ARTTEB100J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RC0805JR-0710RL vs RK73B2ARTTEB100J
RK73A2ALTED100J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-0710RL vs RK73A2ALTED100J
RK73B2ALTC100J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RC0805JR-0710RL vs RK73B2ALTC100J
CRCW080510R0JNEBC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-0710RL vs CRCW080510R0JNEBC
TSR6LJ100V Tateyama Kagaku Group Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-0710RL vs TSR6LJ100V
RM73B2ATED100J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-0710RL vs RM73B2ATED100J
232273011109L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805 RC0805JR-0710RL vs 232273011109L
CR0805J10RP20 Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RC0805JR-0710RL vs CR0805J10RP20
MC0805-100-JB201Q RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 10ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP RC0805JR-0710RL vs MC0805-100-JB201Q
CR0805-10W-100JPT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 10ohm, 150V, 5% +/-Tol, -200,200ppm/Cel, 0805, RC0805JR-0710RL vs CR0805-10W-100JPT-13

RC0805JR-0710RL Related Parts

RC0805JR-0710RL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the RC0805JR-0710RL is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the RC0805JR-0710RL is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.

  • The RC0805JR-0710RL has an MSL rating of 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment.

  • The RC0805JR-0710RL is rated for operation up to 155°C, but it's recommended to derate the power rating above 125°C to ensure reliability.

  • Yes, the RC0805JR-0710RL is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
