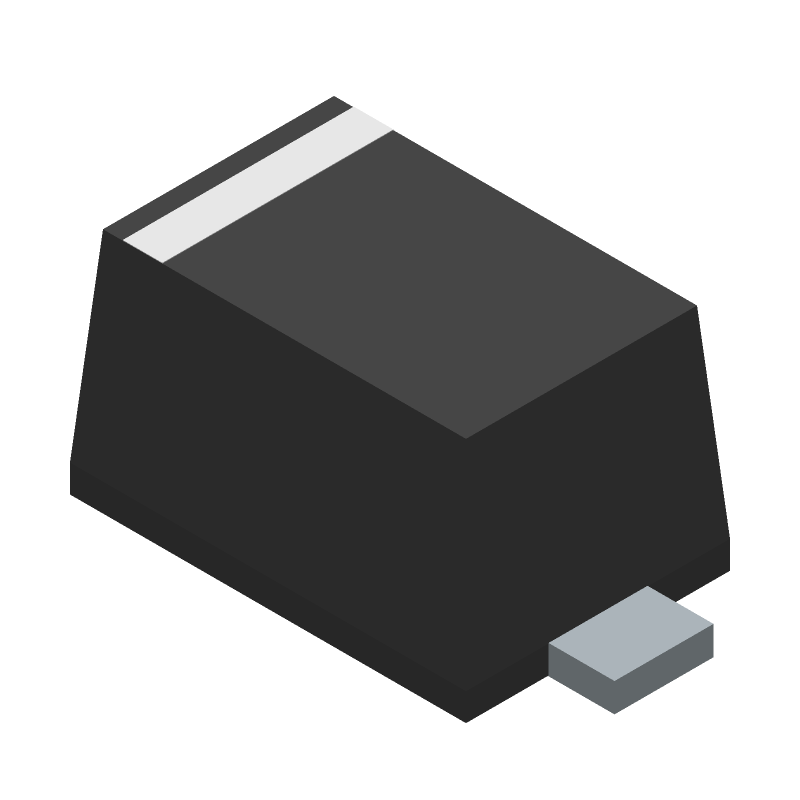

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RB521S30T5G by onsemi
Results Overview of RB521S30T5G by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RB521S30T5G Information
RB521S30T5G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RB521S30T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AK4603
|
Newark | Schottky Diode, 30V, 0.2A, Sod-523 Rohs Compliant: Yes |Onsemi RB521S30T5G RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 1 Container: Reel | 32000 |
|
$0.0220 / $0.0250 | Buy Now |
|
DISTI #
RB521S30T5GOSCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 200MA SOD523 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
24257 In Stock |
|
$0.0140 / $0.1000 | Buy Now |
|
DISTI #
RB521S30T5G
|
Avnet Americas | Diode Schottky 30V 0.2A 2-Pin SOD-523 T/R - Tape and Reel (Alt: RB521S30T5G) RoHS: Compliant Min Qty: 48000 Package Multiple: 8000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0134 / $0.0137 | Buy Now |
|
DISTI #
863-RB521S30T5G
|
Mouser Electronics | Schottky Diodes & Rectifiers SCHOTTKY DIODE RoHS: Compliant | 0 |
|
$0.0140 / $0.1000 | Order Now |
|
DISTI #
V72:2272_07291081
|
Arrow Electronics | Diode Schottky 0.2A 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2232 Container: Cut Strips | Americas - 34 |
|
$0.0321 / $0.0933 | Buy Now |
|
|
Onlinecomponents.com | 200 mA, 30 V, Schottky Diode RoHS: Compliant |
32000 In Stock |
|
$0.0129 / $0.0153 | Buy Now |
|
DISTI #
83641222
|
Verical | Diode Schottky 0.2A 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Date Code: 2432 | Americas - 32000 |
|
$0.0176 / $0.0199 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 0.2A, 30V V(RRM), SILICON | 6796 |
|
$0.0193 / $0.0428 | Buy Now |
|
|
Rochester Electronics | RB521 - Rectifier Diode, Schottky, 0.2A, 30V RoHS: Compliant Status: Active Min Qty: 1 | 11210 |
|
$0.0189 / $0.0305 | Buy Now |
|
DISTI #
RB521S30T5G
|
TME | Diode: Schottky switching, SOD523, SMD, 0.2A, reel,tape Min Qty: 1 | 0 |
|
$0.0186 / $0.3970 | RFQ |
Part Details for RB521S30T5G
RB521S30T5G CAD Models
RB521S30T5G Part Data Attributes
|
|
RB521S30T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
RB521S30T5G
onsemi
200 mA, 30 V, Schottky Diode, SOD-523 2 LEAD, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-523 2 LEAD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, MINIATURE, CASE 502-01, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 502 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | FAST RECOVERY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.5 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 1 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 30 µA | |
| Reverse Test Voltage | 10 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for RB521S30T5G
This table gives cross-reference parts and alternative options found for RB521S30T5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RB521S30T5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RB521S-30 | Surge Components Inc | Check for Price | Rectifier Diode, | RB521S30T5G vs RB521S-30 |
| RB521S30_R1_10001 | PanJit Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.2A, 30V V(RRM), Silicon, SOD-523, 2 PIN | RB521S30T5G vs RB521S30_R1_10001 |
| RB521S30_R1_00001 | PanJit Semiconductor | $0.0301 | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | RB521S30T5G vs RB521S30_R1_00001 |
| RB521SM-30T2R | ROHM Semiconductor | $0.0564 | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, SC-79, 2 PIN | RB521S30T5G vs RB521SM-30T2R |
| RB521SM-30 | ROHM Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, ULTRA SMALL, PLASTIC, SC-79, EMD2, 2 PIN | RB521S30T5G vs RB521SM-30 |
| RB521S30-R1-10001 | PanJit Semiconductor | Check for Price | Rectifier Diode, | RB521S30T5G vs RB521S30-R1-10001 |
| RB521S-30 | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, PLASTIC PACKAGE-2 | RB521S30T5G vs RB521S-30 |
RB521S30T5G Frequently Asked Questions (FAQ)
-
A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. Ensure a minimum of 1 oz copper thickness and a 1-inch square copper pour under the device for optimal heat dissipation.
-
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
-
Monitor the device's junction temperature (TJ), drain-source voltage (VDS), drain current (ID), and gate-source voltage (VGS) to detect potential faults and ensure reliable operation.
-
Choose a gate driver with a high current capability (> 1A) and a fast rise/fall time (< 10 ns) to ensure reliable switching. Ensure the gate driver's output voltage is compatible with the RB521S30T5G's gate-source voltage rating (VGS).
-
Implement ESD protection measures such as TVS diodes, ESD diodes, or ESD arrays on the PCB to protect the device from electrostatic discharge. Ensure the protection devices are rated for the device's maximum voltage and current ratings.
