RB521S-30-TP Information
RB521S-30-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for RB521S-30-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RB521S-30-TPMSCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 200MA SOD523 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
16197 In Stock |
|
$0.0456 / $0.2400 | Buy Now |
|
DISTI #
833-RB521S-30-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 30V 1A RoHS: Compliant | 6484 |
|
$0.0480 / $0.2400 | Buy Now |
|
DISTI #
RB521S-30-TP
|
IBS Electronics | RB521S-30-TP by MCC is a surface mount Schottky barrier diode in SOD-523 package, featuring 30V reverse voltage, 200mA forward current, and low forward voltage drop, ideal for rectification applications. Min Qty: 8000 Package Multiple: 1 | 0 |
|
$0.0520 / $0.0549 | Buy Now |
|
|
LCSC | 30V 500mV200mA 200mA SOD-523 Schottky Diodes ROHS | 11300 |
|
$0.0070 / $0.0150 | Buy Now |
|
|
Vyrian | Diodes | 13321 |
|
RFQ |
Part Details for RB521S-30-TP

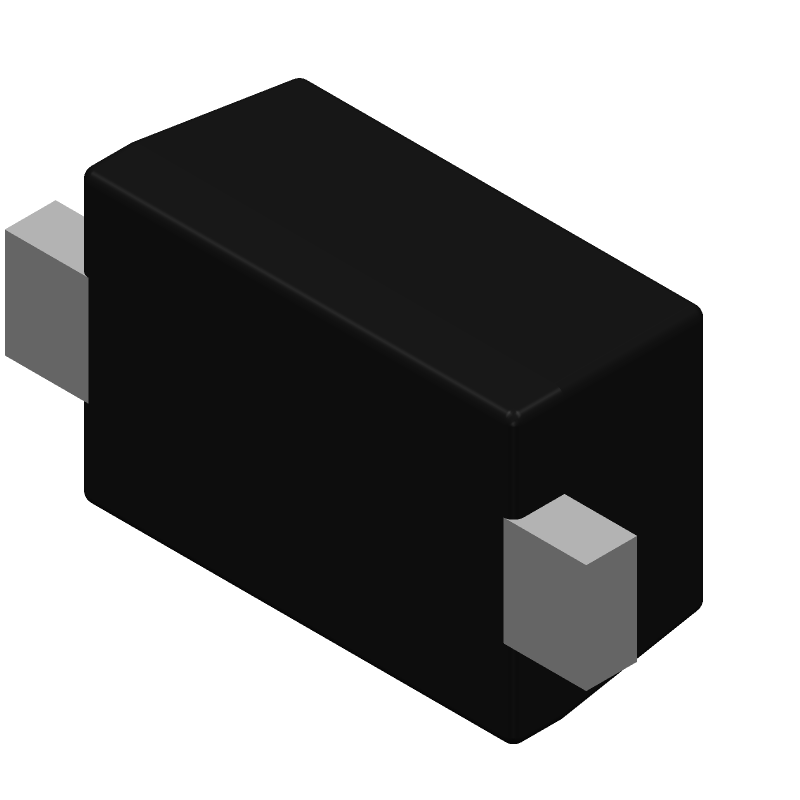

RB521S-30-TP CAD Models
RB521S-30-TP Part Data Attributes
|
|
RB521S-30-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
RB521S-30-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.5 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 1 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 30 µA | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
RB521S-30-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for RB521S-30-TP is -40°C to 100°C.
-
Yes, the RB521S-30-TP is designed to be moisture-resistant, with a moisture sensitivity level (MSL) of 1, per IPC/JEDEC J-STD-020.
-
The maximum power dissipation of the RB521S-30-TP is 1.5W, with a thermal resistance (RθJA) of 125°C/W.
-
Yes, the RB521S-30-TP is designed for high-reliability applications, with a failure rate of < 1% per 1,000 hours, per MIL-HDBK-217F.
-
Yes, the RB521S-30-TP is compliant with the European Union's RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
