Part Details for RAVF168DJT4K70 by SEI Stackpole Electronics Inc
Results Overview of RAVF168DJT4K70 by SEI Stackpole Electronics Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RAVF168DJT4K70 Information
RAVF168DJT4K70 by SEI Stackpole Electronics Inc is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RAVF168DJT4K70
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RAVF168DJT4K70
|
Avnet Americas | - Tape and Reel (Alt: RAVF168DJT4K70) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
708-RAVF168DJT4K70
|
Mouser Electronics | Resistor Networks & Arrays RES ARRAY, 4.7 Kohm, 5%, 0603x8, CONVEX RoHS: Compliant | 0 |
|
$0.0350 / $0.0440 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.0305 / $0.0357 | Buy Now |
|
|
NAC | RESISTOR ARRAY, 4.7 Kohm, 5%, 0603x8, CONVEX - Chip Resistor Array - Convex Termination RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | 0 |
|
$0.0625 / $0.0830 | Buy Now |
Part Details for RAVF168DJT4K70

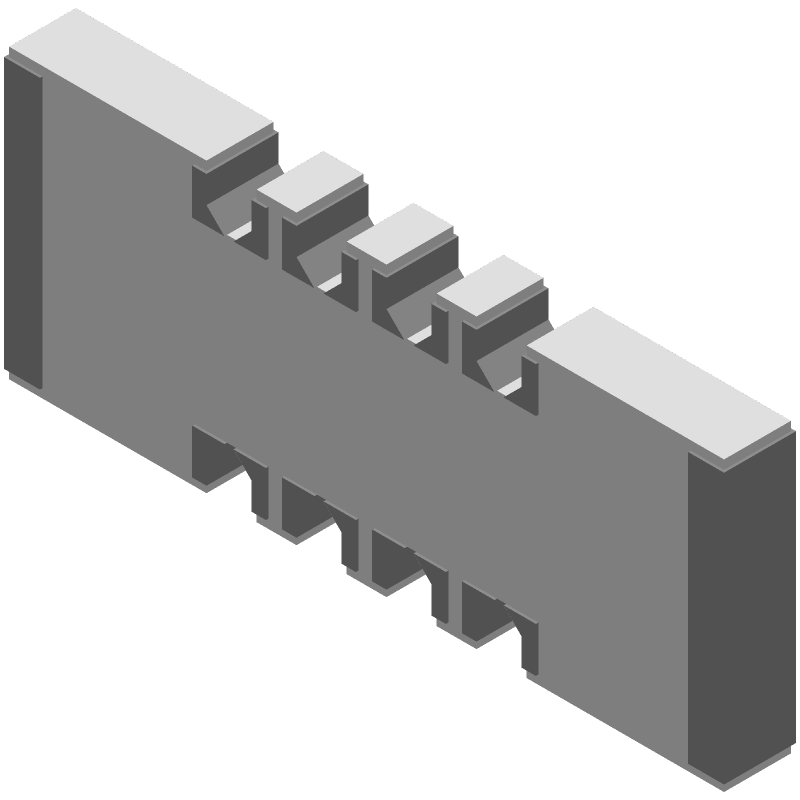

RAVF168DJT4K70 CAD Models
RAVF168DJT4K70 Part Data Attributes
|
|
RAVF168DJT4K70
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RAVF168DJT4K70
SEI Stackpole Electronics Inc
Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.5W, 4700ohm, 25V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 0616, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | SMT, 1606 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| Element Power Dissipation | 0.063 W | |
| First Element Resistance | 4700 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Network Type | ISOLATED | |
| Number of Elements | 1 | |
| Number of Functions | 8 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.4 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 4 mm | |
| Packing Method | TR | |
| Rated Temperature | 70 °C | |
| Resistance | 4700 Ω | |
| Resistor Type | ARRAY/NETWORK RESISTOR | |
| Second/Last Element Resistance | 4700 Ω | |
| Size Code | 0616 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 250 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 25 V |
