RAVF164DFT10K0 Information
RAVF164DFT10K0 by SEI Stackpole Electronics Inc is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RAVF164DFT10K0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
738-RAVF164DFT10K0CT-ND
|
DigiKey | RES ARRAY 4 RES 10K OHM 1206 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6080 In Stock |
|
$0.0101 / $0.1200 | Buy Now |
|
DISTI #
RAVF164DFT10K0
|
Avnet Americas | - Tape and Reel (Alt: RAVF164DFT10K0) RoHS: Compliant Min Qty: 50000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.0128 / $0.0130 | Buy Now |
|
DISTI #
708-RAVF164DFT10K0
|
Mouser Electronics | Resistor Networks & Arrays 10KOhms 0603x4 0.1W 5% Convex Term AEC-Q200 RoHS: Compliant | 330 |
|
$0.0120 / $0.1200 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.0122 / $0.0143 | Buy Now |
|
DISTI #
53940111
|
Verical | Res Thick Film Array 10K Ohm 1% ±200ppm/°C ISOL Molded 8-Pin 1206(4 X 0603) Convex SMD Automotive AEC-Q200 T/R Min Qty: 5000 Package Multiple: 5000 | Americas - 5000 |
|
$0.1176 | Buy Now |
|
DISTI #
RAVF164DFT10K0
|
IBS Electronics | RES THICK FILM ARRAY 10K OHM 1% 0.25 (1/4)W ±, 200PPM/°, C ISOL MOLDED 8-PIN 1206(4 X 0603) CONVEX SMD T/R Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.0165 / $0.0175 | Buy Now |
|
|
NAC | RESISTOR ARRAY, 10 Kohm, 1%, 0603x4, CONVEX - Chip Resistor Array - Convex Termination RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 5000 |
|
$0.0250 / $0.0330 | Buy Now |
|
DISTI #
RAVF164DFT10K0
|
Avnet Asia | Res Thick Film Array 10K Ohm 1% 1/4W ?200ppm/?C ISOL Molded 8-Pin 1206(4 X 0603) Convex SMD T/R (Alt: RAVF164DFT10K0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days | 25000 |
|
$0.0065 / $0.0110 | Buy Now |
|
|
Greenchips | Date Code: 19+/TW | 2997 |
|
$0.0100 | Buy Now |
|
|
Greenchips | Date Code: N/A | 0 |
|
$0.0100 | Buy Now |
Part Details for RAVF164DFT10K0

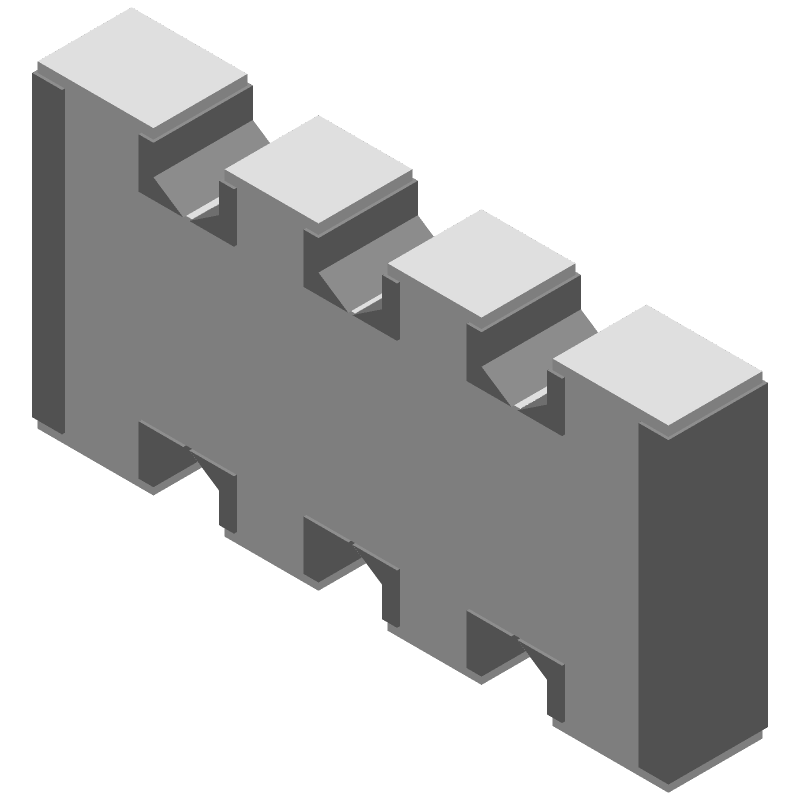

RAVF164DFT10K0 CAD Models
RAVF164DFT10K0 Part Data Attributes
|
|
RAVF164DFT10K0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
RAVF164DFT10K0
SEI Stackpole Electronics Inc
Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.25W, 10000ohm, 50V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Rectangular | |
| Element Power Dissipation | 0.1 W | |
| First Element Resistance | 10000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Network Type | ISOLATED | |
| Number of Elements | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 10000 Ω | |
| Resistor Type | ARRAY/NETWORK RESISTOR | |
| Second/Last Element Resistance | 10000 Ω | |
| Size Code | 0612 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 50 V |
RAVF164DFT10K0 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the RAVF164DFT10K0 is 260°C for 10 seconds.
-
Yes, the RAVF164DFT10K0 is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds.
-
Yes, the RAVF164DFT10K0 is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.
-
The RAVF164DFT10K0 has an MSL rating of 1, which means it can withstand exposure to moisture without damage.
-
Yes, the RAVF164DFT10K0 is compliant with both RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
