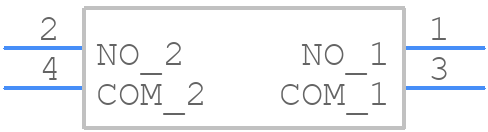

Part Symbol
-

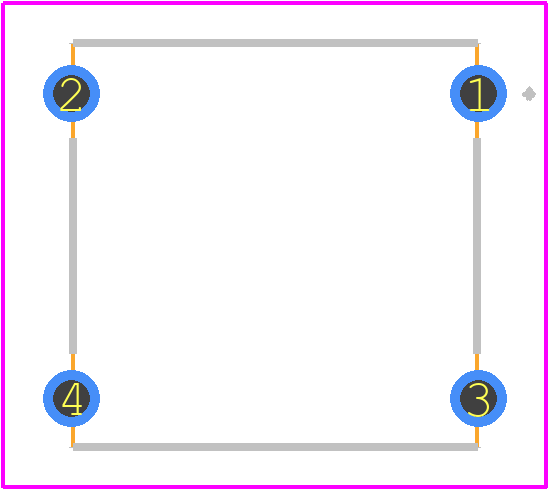

Footprint
-

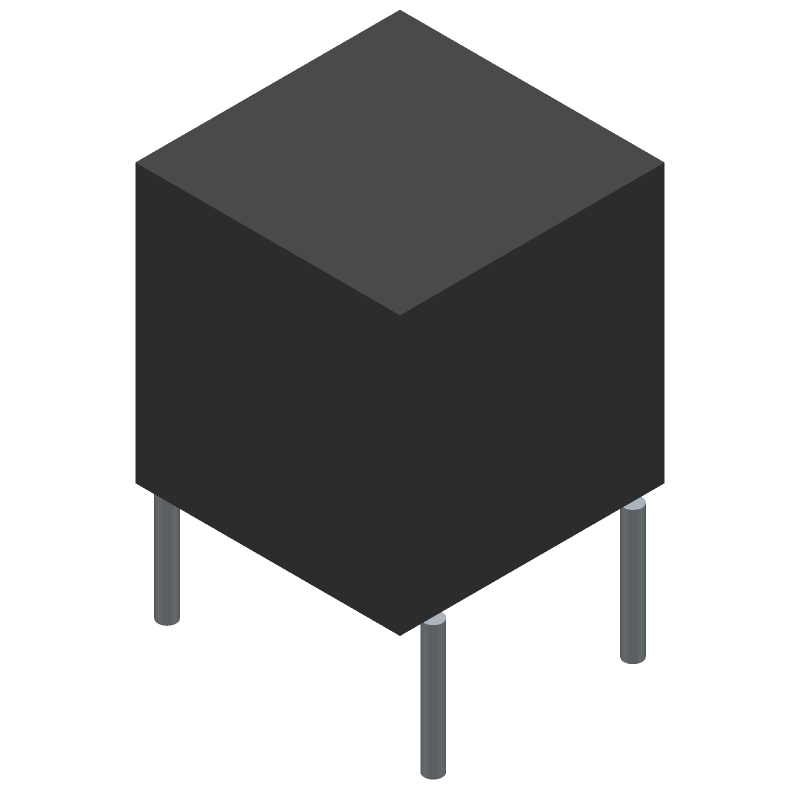

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RA3FTH9 by APEM Inc
Results Overview of RA3FTH9 by APEM Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
RA3FTH9 Information
RA3FTH9 by APEM Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for RA3FTH9
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Switches | 1574 |
|
RFQ |
Part Details for RA3FTH9
RA3FTH9 CAD Models
RA3FTH9 Part Data Attributes
|
|
RA3FTH9
APEM Inc
Buy Now
Datasheet
|
Compare Parts:
RA3FTH9
APEM Inc
Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 3N, Solder Terminal, Through Hole-straight,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | APEM COMPONENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | Apem | |
| Body Breadth | 9.56 mm | |
| Body Height | 6.5 mm | |
| Body Length or Diameter | 12.5 mm | |
| Circuit Configuration | 1X1 | |
| Contact Bounce Time-Max | 2 ms | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | .05A@24VDC | |
| Contact Voltage(DC)-Max | 24 V | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Switches | 1 | |
| Operating Force-Max | 3 N | |
| Operating Temperature-Max | 160 °C | |
| Operating Temperature-Min | -40 °C | |
| Sealing | IP67; MOISTURE PROOF | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Termination Type | SOLDER |
Alternate Parts for RA3FTH9
This table gives cross-reference parts and alternative options found for RA3FTH9. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RA3FTH9, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1-1825910-5 | TE Connectivity | $0.1660 | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 2.548N, Solder Terminal, Panel Mount | RA3FTH9 vs 1-1825910-5 |
| 3-1825910-6 | TE's AMP | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | RA3FTH9 vs 3-1825910-6 |
| 3FTL620 | APEM Inc | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight | RA3FTH9 vs 3FTL620 |
| 1-1825955-6 | TE Connectivity | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight | RA3FTH9 vs 1-1825955-6 |
| 1825955-3 | TE Connectivity | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | RA3FTH9 vs 1825955-3 |
| 1825955-7 | TE Connectivity | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | RA3FTH9 vs 1825955-7 |
| 1825955-1 | TE Connectivity | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 1.47N, Solder Terminal, Through Hole-straight | RA3FTH9 vs 1825955-1 |
| 1825955-4 | TE Connectivity | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight | RA3FTH9 vs 1825955-4 |
| 2-1825910-0 | TE Connectivity | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight | RA3FTH9 vs 2-1825910-0 |
| 1-1825955-2 | TE Connectivity | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6.08N, Solder Terminal, Through Hole-straight | RA3FTH9 vs 1-1825955-2 |
