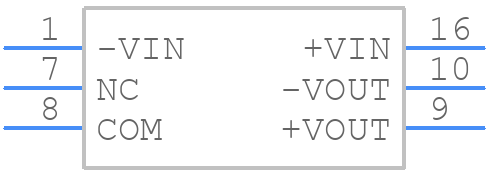

Part Symbol
-

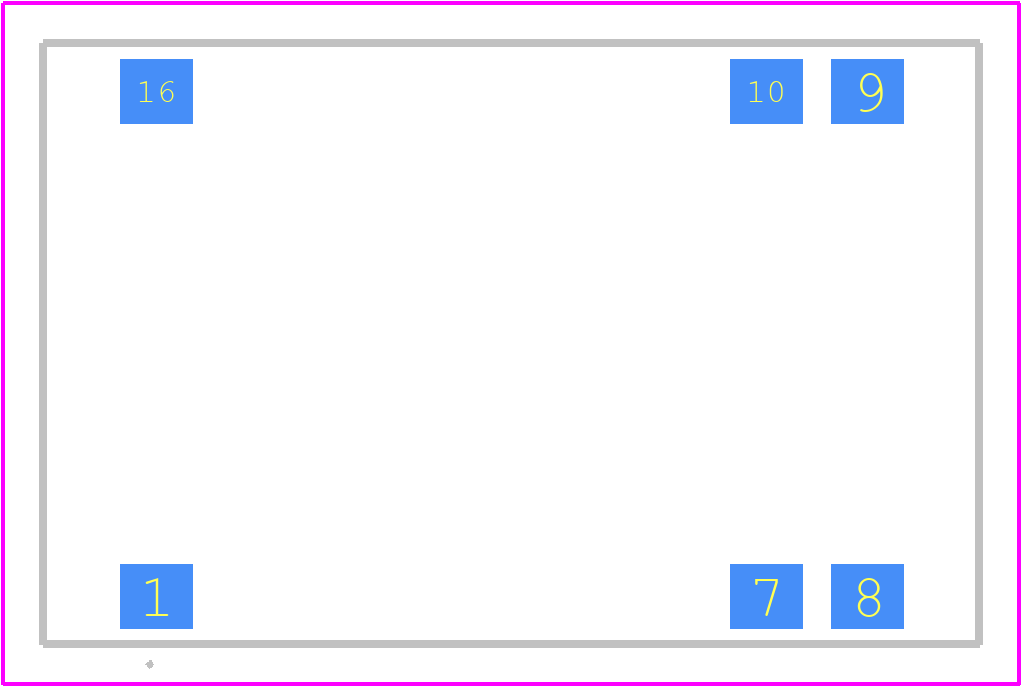

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RA3-120701D/SMD by RECOM Power GmbH
Results Overview of RA3-120701D/SMD by RECOM Power GmbH
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
RA3-120701D/SMD Information
RA3-120701D/SMD by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BLM15PX181BH1D | Murata Manufacturing Co Ltd | FB SMD 0402inch 180ohm POWRTRN | |
| BLM15PX221SH1D | Murata Manufacturing Co Ltd | FB SMD 0402inch 220ohm POWRTRN | |
| BLM21HE601SH1L | Murata Manufacturing Co Ltd | FB SMD 0805inch 600ohm POWRTRN |
Price & Stock for RA3-120701D/SMD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08AK8769
|
Newark | Dc-Dc Converter, 7V/-1V, 0.42A/-0.1A, Power Supply Applications:-, Dc/Dc Converter Type:Surface Mount Dip, Input Ratio:-, Output Power Max:3W, No. Of Outputs:2 Output, Output Voltage - Output 1:7V, Output Current - Output 1:420Ma Rohs Compliant: Yes |Recom Power RA3-120701D/SMD RoHS: Compliant Min Qty: 16 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$14.1800 / $19.6500 | Buy Now |
|
DISTI #
945-RA3-120701D/SMD-ND
|
DigiKey | DC DC CONVERTER 7V 1V 3W Min Qty: 16 Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
$13.4906 | Buy Now |
|
DISTI #
V99:2348_26420623
|
Arrow Electronics | Module DC-DC 12VIN 2-OUT 7V/-1V 0.42A/-0.1A 3W 6-Pin SMD Module Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2215 | Americas - 3 |
|
$10.9190 / $11.8680 | Buy Now |
|
DISTI #
10019983
|
RECOM Power | 3W DC/DC-Converter 'ECONOLINE' SMD DIP16 5.2kV unreg RoHS: Compliant | 0 |
|
$13.4900 | RFQ |
|
|
Onlinecomponents.com | Dual Output DC/DC-Converter - 3W - Input: 10.8V to 13.2V - Output: +07/-01V - SMD DIP16 - 5.2kV - Unregulated RoHS: Compliant | 0 |
|
$10.8900 / $12.9500 | Buy Now |
|
DISTI #
RA3-120701D/SMD
|
TME | Converter: DC/DC, 3W, Uin: 12VDC, Uout: 7VDC, Uout2: -1VDC, SMT, RA3 Min Qty: 1 | 0 |
|
$10.7700 / $12.3100 | RFQ |
|
DISTI #
RA3-120701D/SMD
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 16 | 0 |
|
$10.3600 | Buy Now |
|
DISTI #
000000000006320373
|
Sager | Isolated DC/DC Converters - SMD 3W 12Vin +7/-1Vout +420/-100mA Min Qty: 1 | 0 |
|
$11.8500 / $13.8200 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 5 |
|
RFQ |
Part Details for RA3-120701D/SMD
RA3-120701D/SMD CAD Models
RA3-120701D/SMD Part Data Attributes
|
|
RA3-120701D/SMD
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RA3-120701D/SMD
RECOM Power GmbH
DC-DC Unregulated Power Supply Module
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Description | 3W DC/DC-Converter 'ECONOLINE' SMD DIP16 5.2kV unreg | |
| Samacsys Manufacturer | RECOM Power | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Category CO2 Kg | 504 | |
| Compliance Temperature Grade | Industrial: -40C to +85C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.31 | |
| Qualifications | UL | |
| Additional Feature | -1V ADDITIONAL OUTPUT AVAILABLE; TUBE 16 PCS PACKING IS ALSO AVAILABLE | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | EN,IEC,UL | |
| Efficiency (Main Output) | 82% | |
| Input Voltage-Max | 13.2 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDMA-N6 | |
| Length | 23.4 mm | |
| Line Regulation-Max | 1.2% | |
| Load Regulation-Max | 15% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.42 A | |
| Output Voltage-Max | 7.35 V | |
| Output Voltage-Min | 6.65 V | |
| Output Voltage-Nom | 7 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,6LEAD(UNSPEC) | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Ripple Voltage (Main Out) | 0.07777 Vrms | |
| Screening Level | EN/IEC/UL 62368-1 | |
| Seated Height-Max | 8.75 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 15 mm |
Alternate Parts for RA3-120701D/SMD
This table gives cross-reference parts and alternative options found for RA3-120701D/SMD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RA3-120701D/SMD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RA3-120701D/SMD-R | RECOM Power GmbH | $10.4900 | DC-DC Unregulated Power Supply Module | RA3-120701D/SMD vs RA3-120701D/SMD-R |
