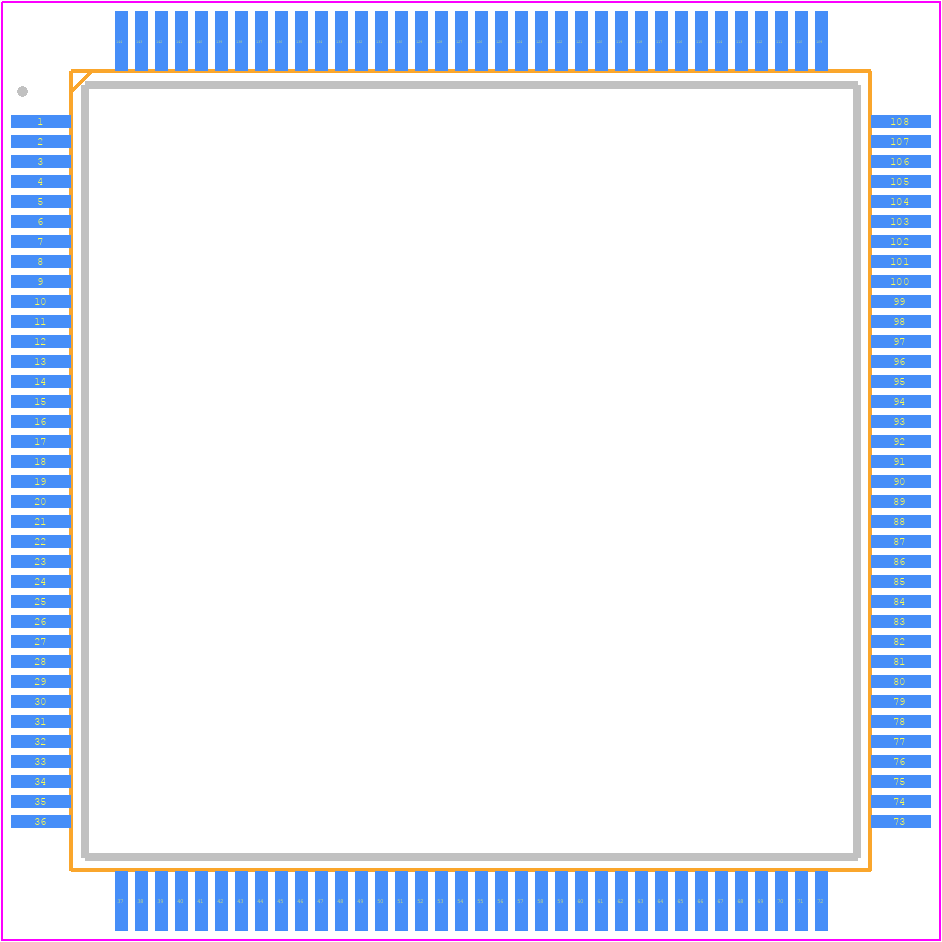

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F56218BDFB#V0 by Renesas Electronics Corporation
Results Overview of R5F56218BDFB#V0 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Industrial Automation
Smart Cities
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
R5F56218BDFB#V0 Information
R5F56218BDFB#V0 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F56218BDFB#V0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AC2641
|
Newark | Mcu, 32Bit, 100Mhz, Lqfp-64, Product Range:Rx600 Series Microcontrollers, Architecture:Rx, No. Of Bits:32Bit, Cpu Speed:100Mhz, Program Memory Size:512Kb, Ram Memory Size:96Kb, No. Of Pins:144Pins, Mcu Case Style:Lqfp, No. Of Rohs Compliant: Yes |Renesas R5F56218BDFB#V0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 170 |
|
$10.2600 | Buy Now |
|
DISTI #
R5F56218BDFB#V0-ND
|
DigiKey | IC MCU 32BIT 512KB FLASH 144LQFP Min Qty: 180 Lead time: 12 Weeks Container: Tray | Limited Supply - Call |
|
$10.2614 | Buy Now |
|
DISTI #
968-R5F56218BDFB#V0
|
Mouser Electronics | 32-bit Microcontrollers - MCU 32BIT MCU RX621 512K/96K QFP144 RoHS: Compliant | 666 |
|
$10.4200 / $17.1700 | Buy Now |
|
DISTI #
R5F56218BDFB#V0
|
Avnet Silica | (Alt: R5F56218BDFB#V0) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for R5F56218BDFB#V0
R5F56218BDFB#V0 CAD Models
R5F56218BDFB#V0 Part Data Attributes
|
|
R5F56218BDFB#V0
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F56218BDFB#V0
Renesas Electronics Corporation
32-bit Microcontroller with 100MHz High-speed Operation and Built-in Connectivity Functions such as Ethernet and USB Host, LQFP, /Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Pin Count | 144 | |
| Manufacturer Package Code | PLQP0144KA | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 32 | |
| Clock Frequency-Max | 8 MHz | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| JESD-30 Code | S-PQFP-G144 | |
| Length | 20 mm | |
| Number of I/O Lines | 103 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 98304 | |
| ROM (words) | 524288 | |
| ROM Programmability | FLASH | |
| Speed | 100 MHz | |
| Supply Current-Max | 100 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
R5F56218BDFB#V0 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the R5F56218BDFB#V0 is 32 MHz.
-
The R5F56218BDFB#V0 has 128 KB of flash memory.
-
The minimum operating voltage of the R5F56218BDFB#V0 is 2.7 V.
-
Yes, the R5F56218BDFB#V0 has a built-in oscillator that can be used as a clock source.
-
The maximum current consumption of the R5F56218BDFB#V0 is approximately 15 mA at 32 MHz.
