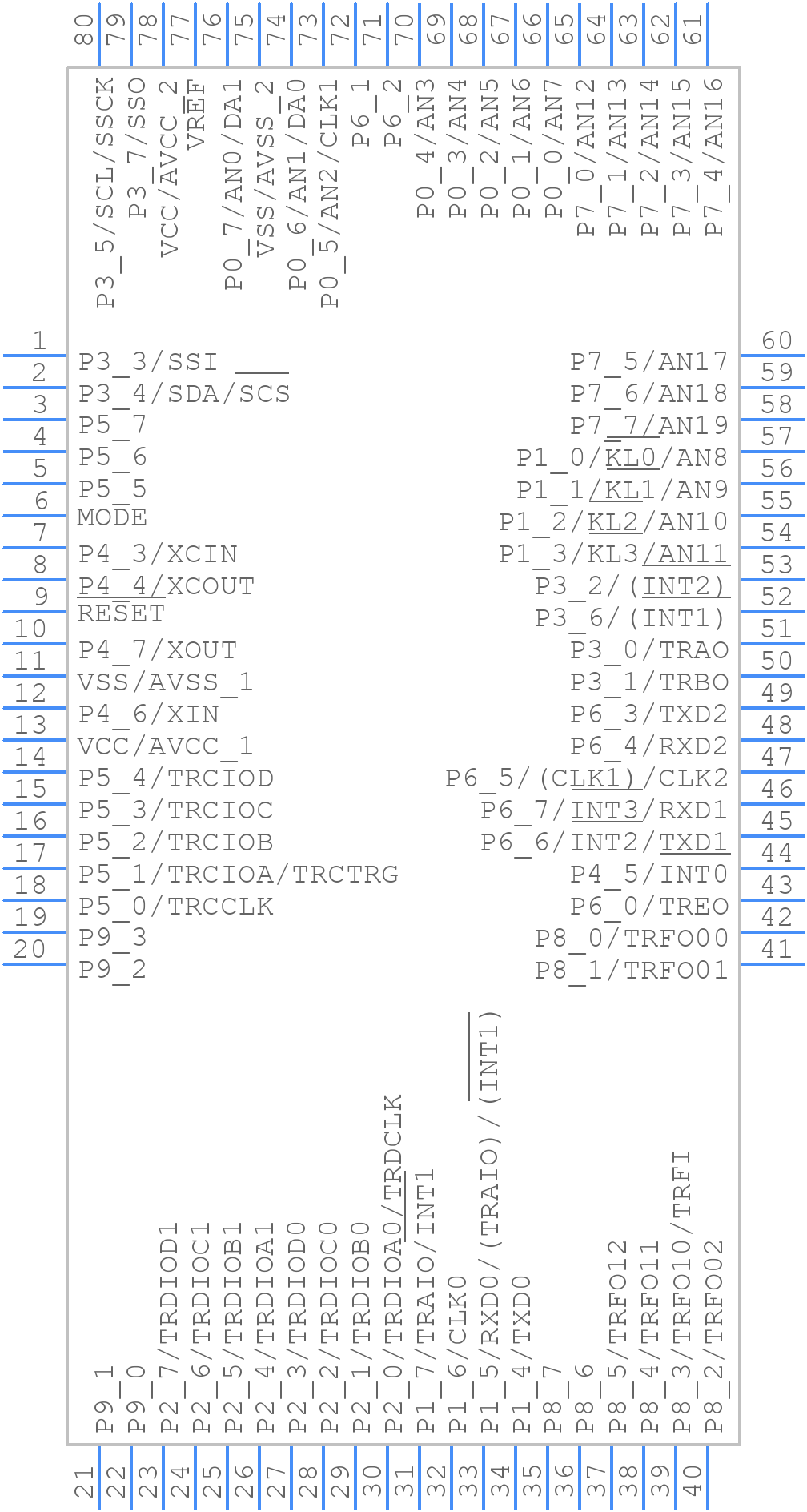

Part Symbol
-

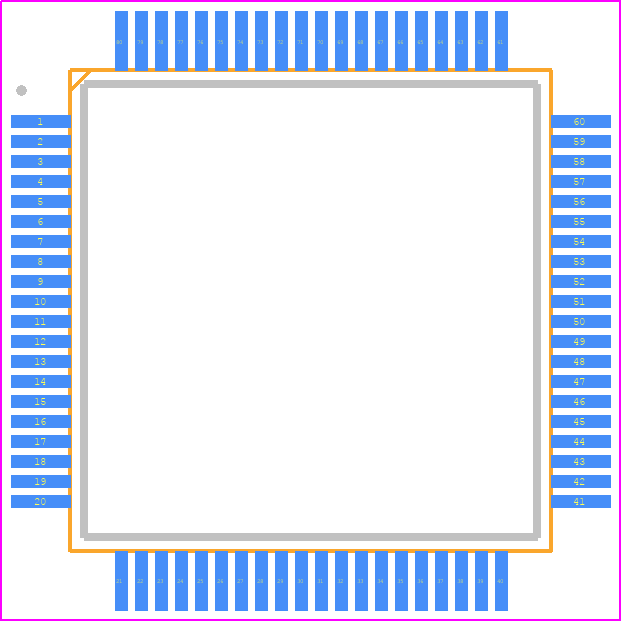

Footprint
-

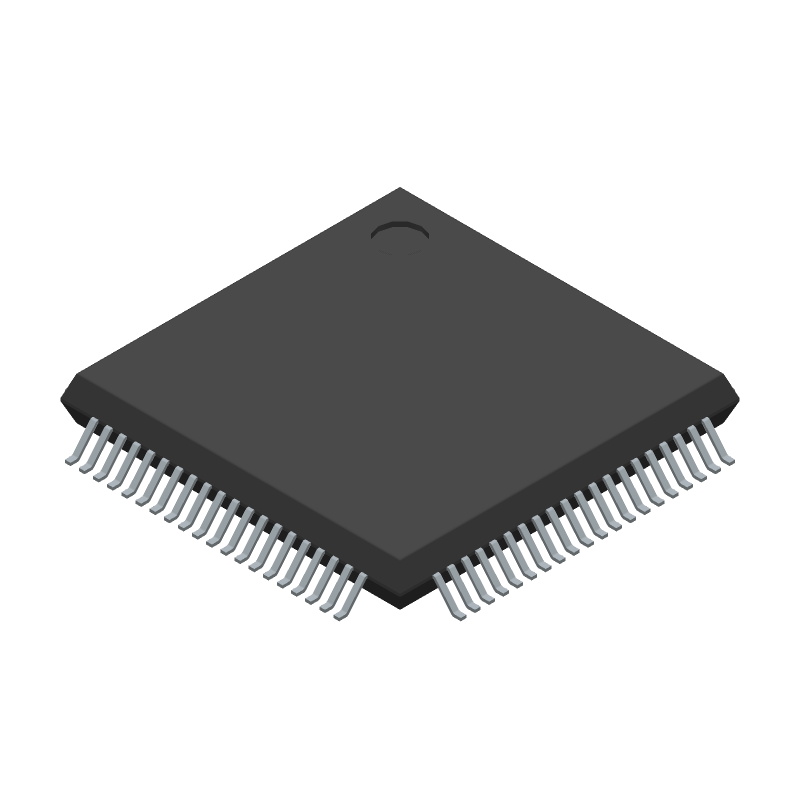

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F212CCSDFP#V2 by Renesas Electronics Corporation
Results Overview of R5F212CCSDFP#V2 by Renesas Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Automotive
R5F212CCSDFP#V2 Information
R5F212CCSDFP#V2 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F212CCSDFP#V2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R5F212CCSDFP#V2-ND
|
DigiKey | IC MCU 16BIT 128KB FLASH 80LQFP Lead time: 12 Weeks Container: Tray | Temporarily Out of Stock |
|
Buy Now | |
|
DISTI #
R5F212CCSDFP#V2
|
Avnet Americas | - Trays (Alt: R5F212CCSDFP#V2) RoHS: Compliant Min Qty: 238 Package Multiple: 119 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$7.6400 | Buy Now |
|
DISTI #
968-R5F212CCSDFP#V2
|
Mouser Electronics | 16-bit Microcontrollers - MCU R8C/2C 128K/7.5K 80LQFP 12x12 -40-+85C RoHS: Compliant | 0 |
|
$8.3900 / $8.9600 | Order Now |
Part Details for R5F212CCSDFP#V2
R5F212CCSDFP#V2 CAD Models
R5F212CCSDFP#V2 Part Data Attributes
|
|
R5F212CCSDFP#V2
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F212CCSDFP#V2
Renesas Electronics Corporation
16-bit Microcontrollers with R8C CPU Core (Non Promotion), LQFP, /Tray/Embossed tape
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | LFQFP, | |
| Pin Count | 80 | |
| Manufacturer Package Code | PLQP0080KB | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | IT ALSO OPERATES IN 2.2V AT 5MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G80 | |
| Length | 12 mm | |
| Number of I/O Lines | 73 | |
| Number of Terminals | 80 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 20 MHz | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
R5F212CCSDFP#V2 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the R5F212CCSDFP#V2 is 32 MHz.
-
The R5F212CCSDFP#V2 has 128 KB of flash memory.
-
The maximum ambient temperature range for the R5F212CCSDFP#V2 is -40°C to +85°C.
-
Yes, the R5F212CCSDFP#V2 has a built-in oscillator that can be used as a clock source.
-
The power consumption of the R5F212CCSDFP#V2 in sleep mode is typically around 1.5 μA.
