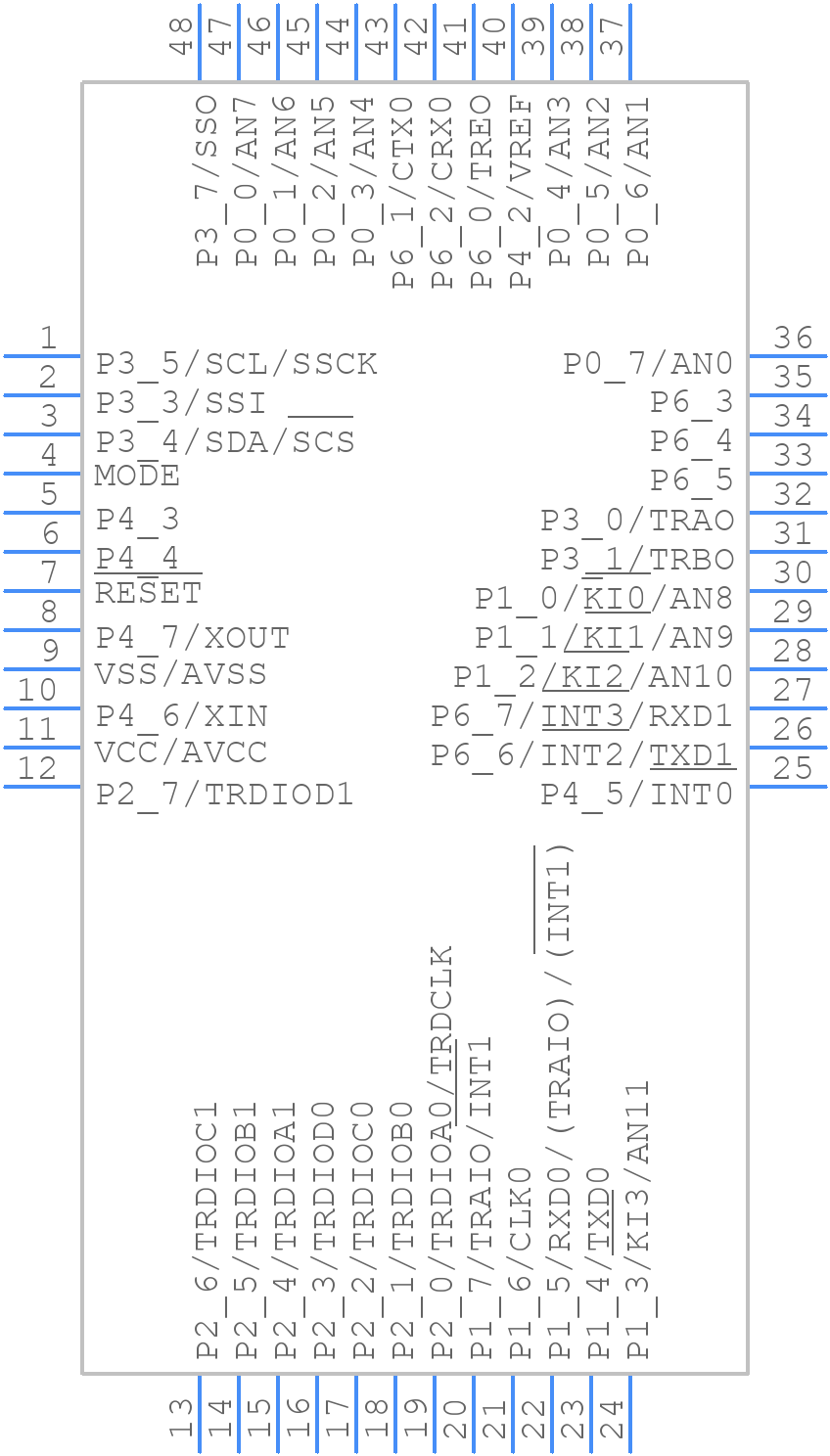

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F21238KFP#U1 by Renesas Electronics Corporation
Results Overview of R5F21238KFP#U1 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R5F21238KFP#U1 Information
R5F21238KFP#U1 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F21238KFP#U1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R5F21238KFP#U1-ND
|
DigiKey | IC MCU 16BIT 64KB FLASH 48LFQFP Min Qty: 250 Lead time: 12 Weeks Container: Tray | Limited Supply - Call |
|
$7.8370 | Buy Now |
|
DISTI #
R5F21238KFP#U1
|
Avnet Americas | MCU 16-bit R8C CISC 64KB Flash 3.3V/5V 48-Pin LQFP Tray - Trays (Alt: R5F21238KFP#U1) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$7.2900 | Buy Now |
|
DISTI #
968-R5F21238KFP#U1
|
Mouser Electronics | 16-bit Microcontrollers - MCU MCU 3/5V 64+2K -40/125C AU PbFree 48LQFP RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
R5F21238KFP#U1
|
Avnet Silica | MCU 16bit R8C CISC 64KB Flash 33V5V 48Pin LQFP Tray (Alt: R5F21238KFP#U1) RoHS: Compliant Min Qty: 18750 Package Multiple: 250 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for R5F21238KFP#U1
R5F21238KFP#U1 CAD Models
R5F21238KFP#U1 Part Data Attributes
|
|
R5F21238KFP#U1
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F21238KFP#U1
Renesas Electronics Corporation
16-bit Microcontrollers with R8C CPU Core (Non Promotion), LQFP, /Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | LFQFP, QFP48,.35SQ,20 | |
| Pin Count | 48 | |
| Manufacturer Package Code | PLQP0048KB | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | IT ALSO OPERATES IN 2.7V AT 10MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| CPU Family | R8C | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| Length | 7 mm | |
| Number of I/O Lines | 44 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 3072 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
R5F21238KFP#U1 Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VCC first, followed by AVCC, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
-
The clock settings can be configured using the Clock Control Register (CKCR). The register allows selection of the clock source, clock frequency, and clock mode. Refer to the datasheet for specific register settings and bit assignments.
-
The VCAP pin is used to connect an external capacitor for the internal voltage regulator. This capacitor helps to stabilize the internal voltage and ensure proper operation of the microcontroller.
-
The ADC on the R5F21238KFP#U1 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). The ADC can be triggered by a software trigger or an external trigger signal.
-
The maximum operating frequency of the R5F21238KFP#U1 is 32 MHz. However, the actual operating frequency may be limited by the clock source and the system design.
