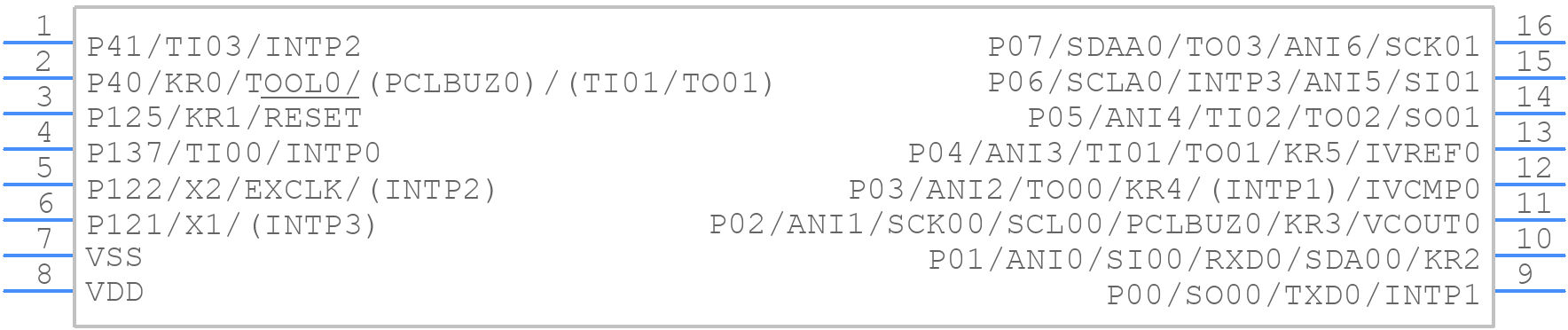

Part Symbol
-

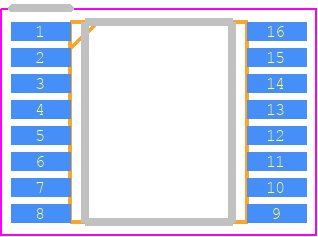

Footprint
-

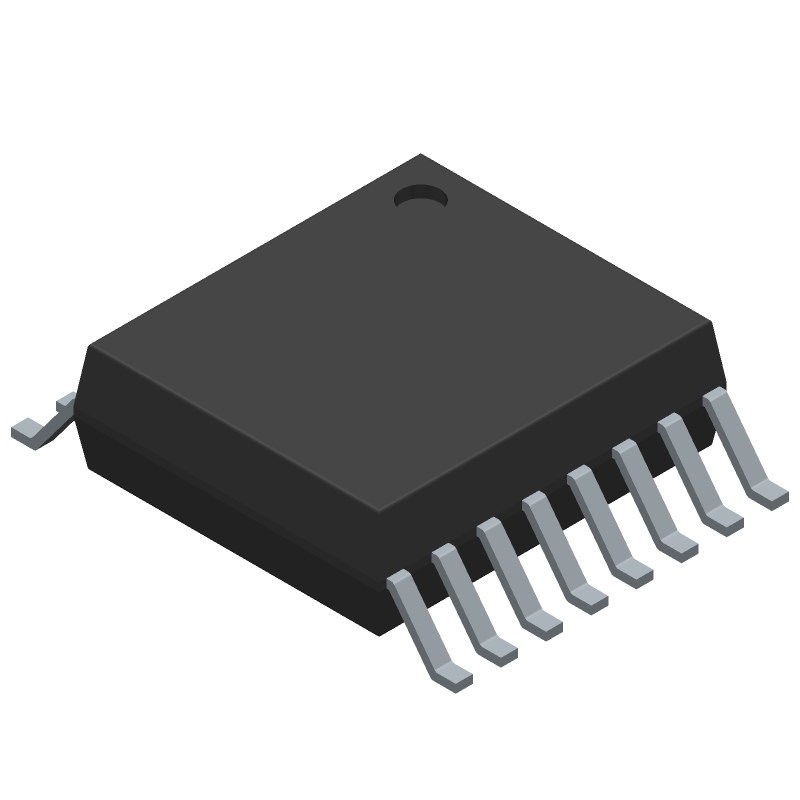

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F10Y47DSP#10 by Renesas Electronics Corporation
Results Overview of R5F10Y47DSP#10 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R5F10Y47DSP#10 Information
R5F10Y47DSP#10 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F10Y47DSP#10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-R5F10Y47DSP#10-ND
|
DigiKey | IC MCU 16BIT 4KB FLASH 16SSOP Min Qty: 3920 Lead time: 12 Weeks Container: Tray | Temporarily Out of Stock |
|
$0.5139 | Buy Now |
|
DISTI #
R5F10Y47DSP#10
|
Avnet Americas | - Trays (Alt: R5F10Y47DSP#10) RoHS: Compliant Min Qty: 3920 Package Multiple: 3920 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$0.5700 | Buy Now |
|
DISTI #
968-R5F10Y47DSP#10
|
Mouser Electronics | 16-bit Microcontrollers - MCU 8BIT MCU RL78/G10 4K/0.5K SOP16 RoHS: Compliant | 0 |
|
$0.5070 / $0.5130 | Order Now |
|
DISTI #
R5F10Y47DSP#10
|
Avnet Silica | (Alt: R5F10Y47DSP#10) RoHS: Compliant Min Qty: 3920 Package Multiple: 3920 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for R5F10Y47DSP#10
R5F10Y47DSP#10 CAD Models
R5F10Y47DSP#10 Part Data Attributes
|
|
R5F10Y47DSP#10
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F10Y47DSP#10
Renesas Electronics Corporation
Low Power, Low Pin Count Microcontrollers for General Purpose Applications, , /
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Pin Count | 16 | |
| Manufacturer Package Code | PRSP0016JC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | RL78 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 5 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 5 | |
| Number of I/O Lines | 14 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 16 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| RAM (bytes) | 512 | |
| ROM (words) | 4096 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.725 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 2.14 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
R5F10Y47DSP#10 Frequently Asked Questions (FAQ)
-
The recommended oscillator crystal frequency for the R5F10Y47DSP#10 is 32.768 kHz, which is a standard frequency for many microcontrollers.
-
To configure the clock settings for optimal performance, refer to the 'Clock Generation' section in the datasheet and set the clock source to the high-speed internal oscillator (HSIO) or an external clock source. Adjust the clock divider settings according to your application's requirements.
-
The R5F10Y47DSP#10 has an operating temperature range of -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.
-
The R5F10Y47DSP#10 has several power-saving modes, including Sleep, Stop, and Low-Power modes. Refer to the 'Power Management' section in the datasheet for details on how to implement these modes using the Power Management Controller (PMC) and the Clock Generation Unit (CGU).
-
The R5F10Y47DSP#10 has 256 KB of flash memory and 16 KB of RAM, providing a good balance between program storage and data processing capabilities.
