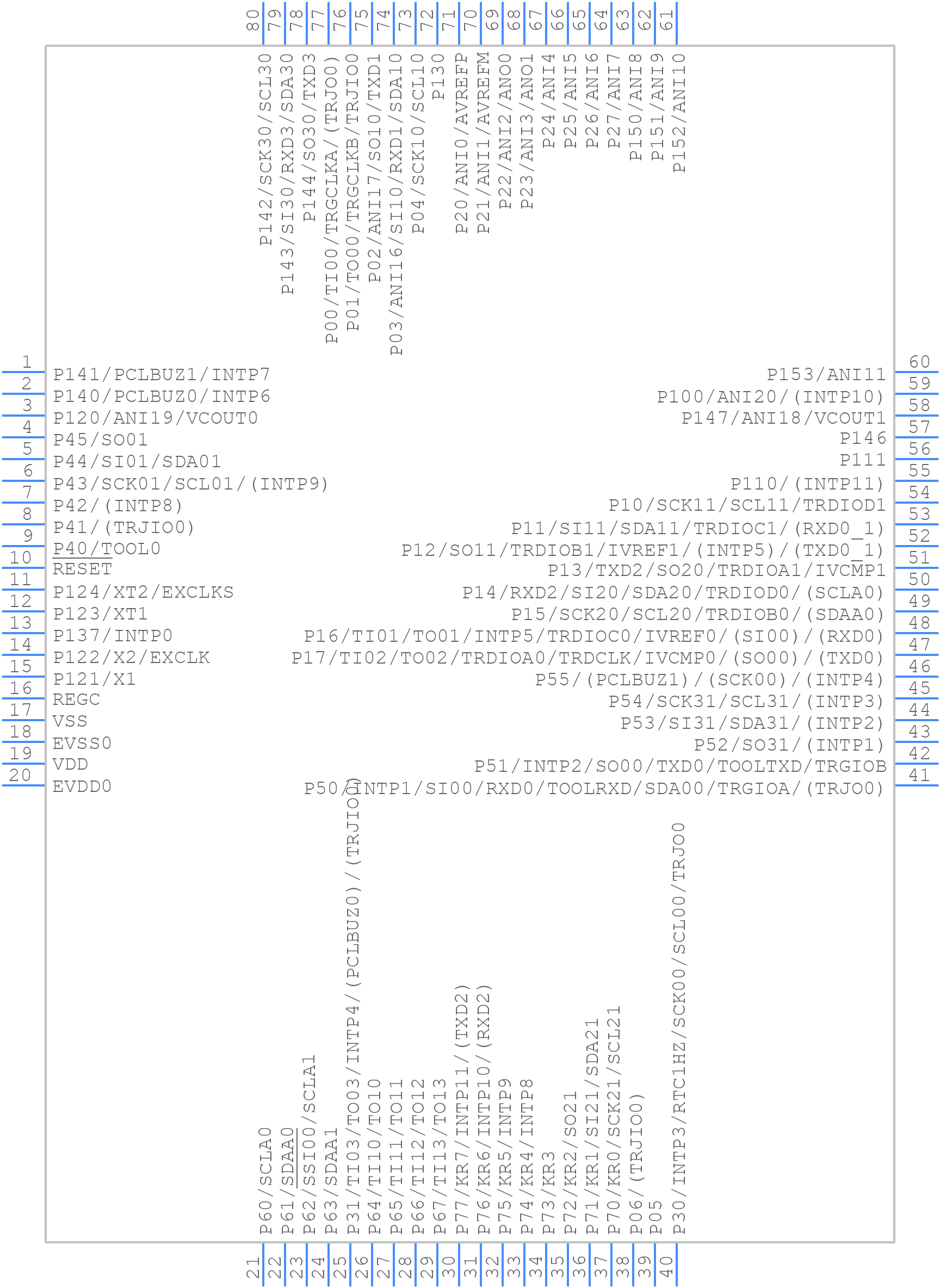

Part Symbol
-

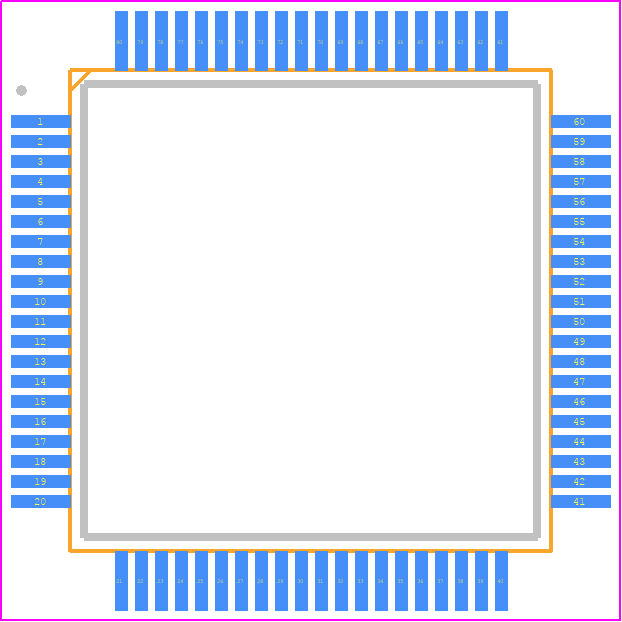

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F104MJAFB#50 by Renesas Electronics Corporation
Results Overview of R5F104MJAFB#50 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Consumer Electronics
Education and Research
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
R5F104MJAFB#50 Information
R5F104MJAFB#50 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F104MJAFB#50
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-R5F104MJAFB#50CT-ND
|
DigiKey | IC MCU 16BIT 256KB FLASH 80LQFP Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.4504 / $7.8300 | Buy Now |
|
DISTI #
R5F104MJAFB#50
|
Avnet Americas | MCU 16-Bit RL78/G14 RL78 CISC 256KB Flash 1.6V to 5.5V 80-Pin LFQFP Emboss T/R - Tape and Reel (Alt: R5F104MJAFB#50) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$3.9200 | Buy Now |
|
DISTI #
968-R5F104MJAFB#50
|
Mouser Electronics | 16-bit Microcontrollers - MCU 16BIT MCU RL78/G14 256K LFQFP80 -40/+85C RoHS: Compliant | 0 |
|
$3.4100 / $3.4500 | Order Now |
|
DISTI #
R5F104MJAFB#50
|
Avnet Silica | MCU 16Bit RL78G14 RL78 CISC 256KB Flash 16V to 55V 80Pin LFQFP Emboss TR (Alt: R5F104MJAFB#50) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for R5F104MJAFB#50
R5F104MJAFB#50 CAD Models
R5F104MJAFB#50 Part Data Attributes
|
|
R5F104MJAFB#50
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F104MJAFB#50
Renesas Electronics Corporation
Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications, LQFP, /Tray/Embossed tape
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Pin Count | 80 | |
| Manufacturer Package Code | PLQP0080KB | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHz | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | RL78 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G80 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 12 | |
| Number of I/O Lines | 74 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 80 | |
| Number of Timers | 9 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP80,.55SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| RAM (bytes) | 24576 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 32 MHz | |
| Supply Current-Max | 10.2 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for R5F104MJAFB#50
This table gives cross-reference parts and alternative options found for R5F104MJAFB#50. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R5F104MJAFB#50, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| R5F104MJDFB#30 | Renesas Electronics Corporation | Check for Price | Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications, LQFP, /Tray | R5F104MJAFB#50 vs R5F104MJDFB#30 |
R5F104MJAFB#50 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for R5F104MJAFB#50 is 2.7V to 5.5V.
-
The clock settings for R5F104MJAFB#50 can be configured using the Clock Generator Unit (CGU) and the Clock Control Unit (CCU). Refer to the user manual for detailed instructions.
-
The maximum clock frequency supported by R5F104MJAFB#50 is 32 MHz.
-
The ADC on R5F104MJAFB#50 can be used by configuring the ADC channel, setting the conversion mode, and enabling the ADC clock. Refer to the user manual for detailed instructions.
-
The power consumption of R5F104MJAFB#50 in sleep mode is typically around 1.5 μA.
