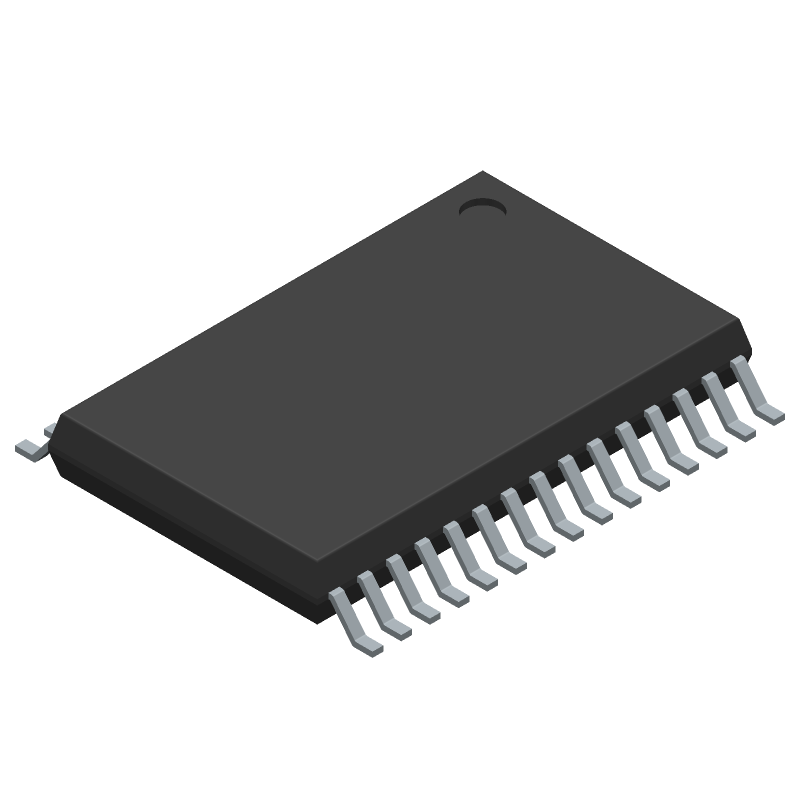

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R5F103A8ASP#10 by Renesas Electronics Corporation
Results Overview of R5F103A8ASP#10 by Renesas Electronics Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
R5F103A8ASP#10 Information
R5F103A8ASP#10 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F103A8ASP#10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-R5F103A8ASP#10-ND
|
DigiKey | IC MCU 16BIT 8KB FLASH 30LSSOP Min Qty: 3360 Lead time: 12 Weeks Container: Tray | Temporarily Out of Stock |
|
$0.6795 | Buy Now |
|
DISTI #
R5F103A8ASP#10
|
Avnet Americas | - Trays (Alt: R5F103A8ASP#10) RoHS: Compliant Min Qty: 3360 Package Multiple: 1680 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$0.7800 | Buy Now |
|
DISTI #
968-R5F103A8ASP#10
|
Mouser Electronics | 16-bit Microcontrollers - MCU 16BIT MCU RL78/G12 8K/0.75K SOP30 RoHS: Compliant | 0 |
|
$0.6750 / $0.6790 | Order Now |
|
DISTI #
75724166
|
Verical | R5F103A8ASP#10 Min Qty: 58 Package Multiple: 1 Date Code: 2343 | Americas - 3360 |
|
$0.5900 / $1.1900 | Buy Now |
|
DISTI #
R5F103A8ASP#10
|
Avnet Asia | Microcontroller 16-Bit RL78 CISC 8KB Flash 30-Pin SSOP (Alt: R5F103A8ASP#10) RoHS: Compliant Min Qty: 3360 Package Multiple: 1680 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
R5F103A8ASP#10
|
Avnet Silica | (Alt: R5F103A8ASP#10) RoHS: Compliant Min Qty: 1680 Package Multiple: 1680 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
R5F103A8ASP#10
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: No Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray | 3360 |
|
$0.4270 / $1.1900 | Buy Now |
Part Details for R5F103A8ASP#10
R5F103A8ASP#10 CAD Models
R5F103A8ASP#10 Part Data Attributes
|
|
R5F103A8ASP#10
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F103A8ASP#10
Renesas Electronics Corporation
Compact, Low Power Microcontrollers for General Purpose Applications Ideal for Sub-MCUs, , /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Pin Count | 30 | |
| Manufacturer Package Code | PLSP0030JB | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | RL78 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G30 | |
| Length | 9.85 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 26 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 30 | |
| Number of Timers | 9 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP30,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| RAM (bytes) | 768 | |
| ROM (words) | 8192 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.4 mm | |
| Speed | 24 MHz | |
| Supply Current-Max | 5 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 6.1 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
