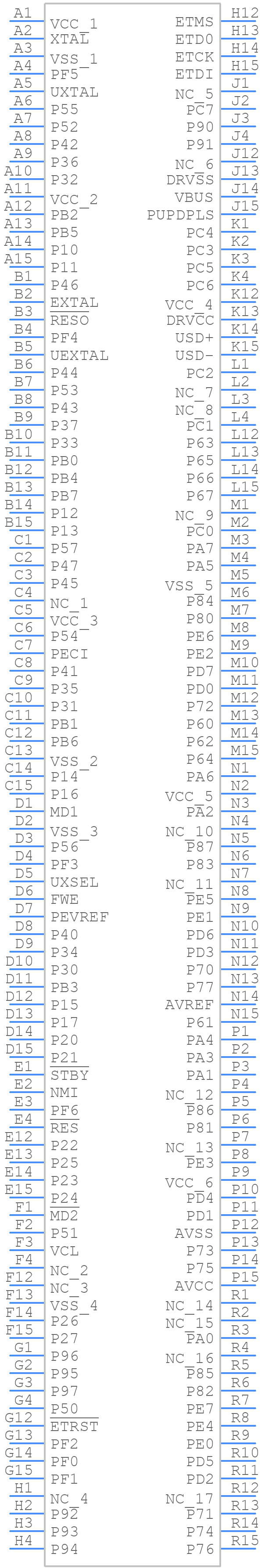

Part Symbol
-
Footprint
-

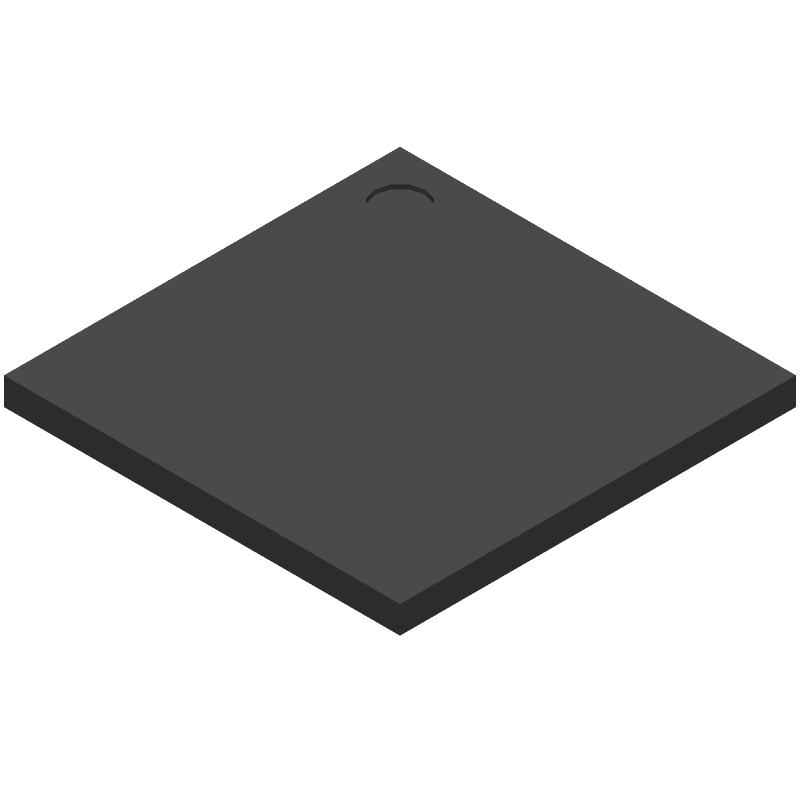

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R4F2472VBR34DV by Renesas Electronics Corporation
Results Overview of R4F2472VBR34DV by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
R4F2472VBR34DV Information
R4F2472VBR34DV by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R4F2472VBR34DV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R4F2472VBR34DV-ND
|
DigiKey | IC MCU 16BIT 512KB FLSH 176LFBGA Min Qty: 152 Lead time: 18 Weeks Container: Tray | Limited Supply - Call |
|
$25.6836 | Buy Now |
|
DISTI #
R4F2472VBR34DV
|
Avnet Americas | - Trays (Alt: R4F2472VBR34DV) RoHS: Compliant Min Qty: 152 Package Multiple: 152 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$24.2600 | Buy Now |
|
DISTI #
968-R4F2472VBR34DV
|
Mouser Electronics | 16-bit Microcontrollers - MCU MCU 3V 512K I Temp PB-Free 176-BGA RoHS: Compliant | 0 |
|
Order Now | |
|
|
Bristol Electronics | 255 |
|
RFQ |
Part Details for R4F2472VBR34DV
R4F2472VBR34DV CAD Models
R4F2472VBR34DV Part Data Attributes
|
|
R4F2472VBR34DV
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R4F2472VBR34DV
Renesas Electronics Corporation
Microcontrollers with 16-bit High-speed H8S/2600 CPU (Non Promotion), LFBGA, /Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LFBGA | |
| Pin Count | 176 | |
| Manufacturer Package Code | PLBG0176GA | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 16 | |
| Clock Frequency-Max | 34 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| JESD-30 Code | S-PBGA-N176 | |
| Length | 13 mm | |
| Number of I/O Lines | 120 | |
| Number of Terminals | 176 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.4 mm | |
| Speed | 34 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 13 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
R4F2472VBR34DV Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the R4F2472VBR34DV is 240 MHz.
-
The R4F2472VBR34DV has 256 KB of flash memory.
-
The maximum ambient temperature range for the R4F2472VBR34DV is -40°C to 125°C.
-
Yes, the R4F2472VBR34DV has a 12-bit analog-to-digital converter (ADC) with 16 channels.
-
The power consumption of the R4F2472VBR34DV in sleep mode is approximately 1.5 μA.
