Power Circuits / Power Supply Modules / R1Z-1505/P
Datasheets

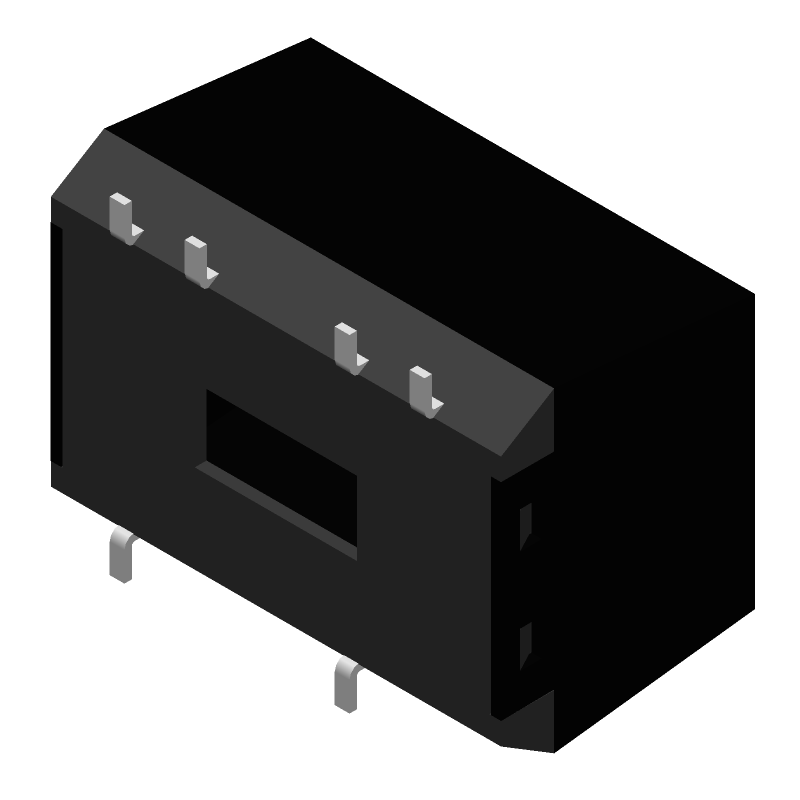

R1Z-1505/P by: RECOM Power GmbH

DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-10/6

Part Details for R1Z-1505/P by RECOM Power GmbH

Results Overview of R1Z-1505/P by RECOM Power GmbH

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming

R1Z-1505/P Information

R1Z-1505/P by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MC1505L Rochester Electronics LLC MC1505 - A/D Converter, 1 Func, Bipolar, CDIP16
PTEA415050N2AD Texas Instruments 1-OUTPUT 82.5W DC-DC REG PWR SUPPLY MODULE, LEAD FREE, PLASTIC, MODULE-8
THVD1505DR Texas Instruments Bus-polarity correcting RS-485 transceiver with IEC-ESD protection 8-SOIC -40 to 125

Price & Stock for R1Z-1505/P

Part # Distributor Description Stock Price Buy
DISTI # 64X4788
Newark 1W Dc/Dc-Converter Econoline Smd 1Kv Reg Rohs Compliant: Yes |Recom Power R1Z-1505/P RoHS: Compliant Min Qty: 33 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 25 $20.2600
  • 50 $18.8200
  • 100 $18.2000
  • 250 $17.5800
$17.5800 / $20.2600 Buy Now
DISTI # R1Z-1505/P-ND
DigiKey DC DC CONVERTER 5V 1W Min Qty: 33 Lead time: 16 Weeks Container: Tube Temporarily Out of Stock
  • 33 $16.3676
$16.3676 Buy Now
DISTI # 919-R1Z-1505/P
Mouser Electronics Isolated DC/DC Converters - SMD CONV DC/DC 1W 15VIN 05VOUT RoHS: Compliant 0
  • 1 $17.3300
  • 5 $17.1800
  • 10 $16.3600
  • 50 $16.3500
  • 99 $15.7800
  • 264 $15.6100
$15.6100 / $17.3300 Order Now
DISTI # 10014500
RECOM Power 1W DC/DC-Converter 'ECONOLINE' SMD 1kV reg RoHS: Compliant 0
RFQ
DISTI # 72186142
RS DC-DC Converter, SMD 1kV reg, Single, 1W, 05V, 200mA, R1Z Series Min Qty: 33 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk 0
  • 33 $19.4300
  • 66 $18.6500
  • 132 $18.0700
$18.0700 / $19.4300 RFQ
Onlinecomponents.com Regulated DC-DC Converter - 1W - Input: 15VDC (+/-) 5% - Output: 5VDC - Short Circuit Protection - 8 Lead SMD RoHS: Compliant 0
  • 1 $17.7200
  • 10 $15.8200
  • 33 $15.3400
  • 66 $14.9000
  • 132 $14.0800
  • 264 $13.7100
  • 528 $13.5000
$13.5000 / $17.7200 Buy Now
DISTI # 000000000006049784
Sager Isolated DC/DC Converters - SMD CONV DC/DC 1W 15VIN 05VOUT Min Qty: 1 0
  • 1 $17.1400
  • 5 $16.5900
  • 10 $15.8200
  • 25 $15.3500
  • 50 $15.1200
  • 100 $14.7000
$14.7000 / $17.1400 Buy Now

Part Details for R1Z-1505/P

R1Z-1505/P Part Data Attributes

Parametric Data
R1Z-1505/P RECOM Power GmbH
Buy Now Datasheet
Compare Parts:
R1Z-1505/P RECOM Power GmbH DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-10/6
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RECOM POWER GMBH
Part Package Code SFM
Package Description ROHS COMPLIANT, SMD-10/6
Pin Count 10/6
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer RECOM Power
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max 15.75 V
Input Voltage-Min 14.25 V
Input Voltage-Nom 15 V
JESD-30 Code R-XDMA-G6
JESD-609 Code e1
Length 15.24 mm
Load Regulation-Max 1%
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 70 °C
Operating Temperature-Min -40 °C
Output Voltage-Max 5.1 V
Output Voltage-Min 4.9 V
Output Voltage-Nom 5 V
Package Body Material UNSPECIFIED
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) 245
Seated Height-Max 9.5 mm
Surface Mount YES
Technology HYBRID
Temperature Grade OTHER
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form GULL WING
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Total Power Output-Max 1 W
Trim/Adjustable Output NO
Width 10.7 mm

Alternate Parts for R1Z-1505/P

This table gives cross-reference parts and alternative options found for R1Z-1505/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R1Z-1505/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
R1Z-1505/H RECOM Power GmbH Check for Price DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-10/6 R1Z-1505/P vs R1Z-1505/H
R1Z-1505 RECOM Power GmbH Check for Price DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-10/6 R1Z-1505/P vs R1Z-1505
R1Z-1505/HP-R RECOM Power GmbH Check for Price DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-10/6 R1Z-1505/P vs R1Z-1505/HP-R
R1Z-1505/HP RECOM Power GmbH Check for Price DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SMD-10/6 R1Z-1505/P vs R1Z-1505/HP
