R1S-1212 Information
R1S-1212 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MGN1S1212MC-R7 | Murata Manufacturing Co Ltd | DC-DC 1W SM 12-12V GAN | |
| AM27C512-120DC | Rochester Electronics LLC | AM27C512 - 512K (64K x 8) CMOS EPROM | |
| AM27C512-120DE | Rochester Electronics LLC | AM27C512 - 512K (64K x 8) CMOS EPROM |
Price & Stock for R1S-1212
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64X4170
|
Newark | Dc-Dc Converter, Medical, 12V, 0.084A, Power Supply Applications:Medical, Dc/Dc Converter Type:Dip, Input Ratio:1:1, Output Power Max:1W, No. Of Outputs:1 Output, Output Voltage - Output 1:12V, Output Current - Output 1:84Ma Rohs Compliant: Yes |Recom Power R1S-1212 RoHS: Compliant Min Qty: 40 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.6000 / $7.2600 | Buy Now |
|
DISTI #
945-3298-ND
|
DigiKey | DC DC CONVERTER 12V 1W Min Qty: 1 Lead time: 16 Weeks Container: Tube |
39 In Stock |
|
$6.6929 / $7.7500 | Buy Now |
|
DISTI #
919-R1S-1212
|
Mouser Electronics | Isolated DC/DC Converters - SMD 1W DC/DC 1kV UNREG 12Vin 12Vout RoHS: Compliant | 99 |
|
$6.4300 / $7.7500 | Buy Now |
|
DISTI #
70052188
|
RS | Recom Iso DC-DC Converter, Vin 10.8 to 13.2V dc, Vout 12V dc, I/O isolation 1kV Min Qty: 40 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 0 |
|
$7.4900 / $8.5100 | RFQ |
|
|
Onlinecomponents.com | Unregulated DC-DC Coverter - 1W - Input: 12VDC (+/-) 10% - Output: 12VDC - 8 Lead SMD RoHS: Compliant |
27 Partner Stock 185 Factory Stock |
|
$5.7500 / $8.6300 | Buy Now |
|
|
Quest Components | DC-DC UNREGULATED POWER SUPPLY MODULE, 1 OUTPUT, 1W, HYBRID | 5 |
|
$7.3500 / $14.7000 | Buy Now |
|
DISTI #
R1S-1212
|
TME | Converter: DC/DC, 1W, Uin: 10.8÷13.2VDC, Uout: 12VDC, Iout: 84mA, SMT Min Qty: 1 | 41 |
|
$5.7000 / $6.7600 | Buy Now |
|
DISTI #
R1S-1212
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 40 | 0 |
|
$5.5000 | Buy Now |
|
DISTI #
000000000006049114
|
Sager | Isolated DC/DC Converters - SMD 1W DC/DC 1kV UNREG 12Vin 12Vout Min Qty: 1 | 0 |
|
$6.3100 / $7.3400 | Buy Now |
|
|
Master Electronics | Unregulated DC-DC Coverter - 1W - Input: 12VDC (+/-) 10% - Output: 12VDC - 8 Lead SMD RoHS: Compliant |
27 Partner Stock 185 Factory Stock |
|
$5.7500 / $8.6300 | Buy Now |
Part Details for R1S-1212

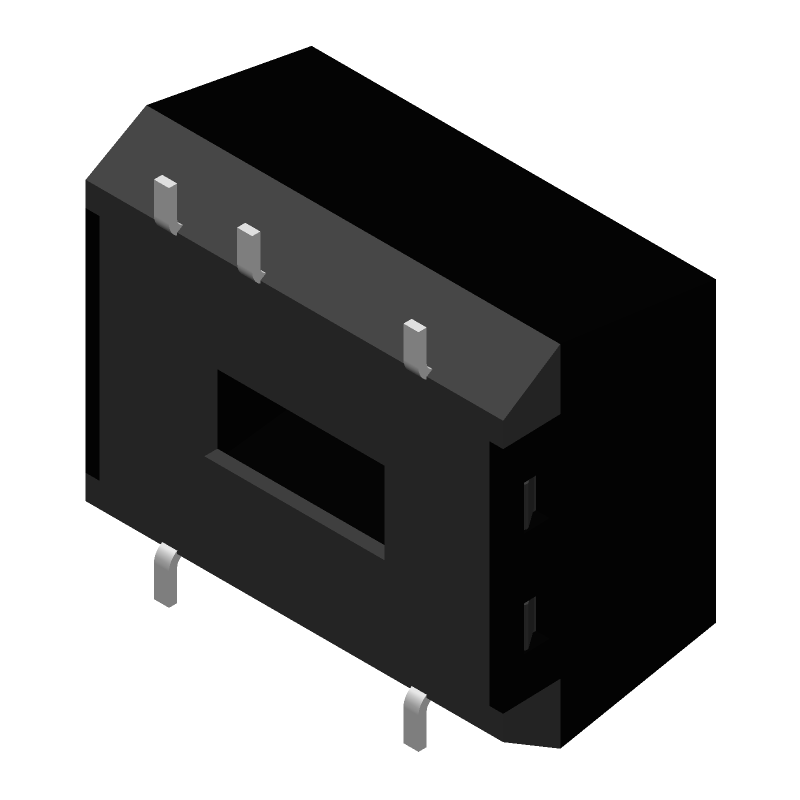

R1S-1212 CAD Models
R1S-1212 Part Data Attributes
|
|
R1S-1212
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R1S-1212
RECOM Power GmbH
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SMD-8/5
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | MODULE | |
| Package Description | SMD-8/5 | |
| Pin Count | 8/5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 13.2 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XDMA-G5 | |
| JESD-609 Code | e1 | |
| Length | 12.75 mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.084 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,5LEAD,.45 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 255 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 7.5 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 5 | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 10.7 mm |
