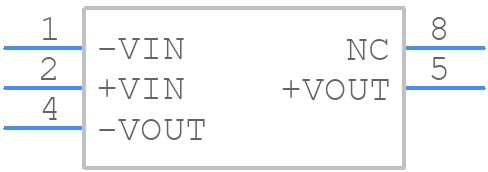

Part Symbol
-

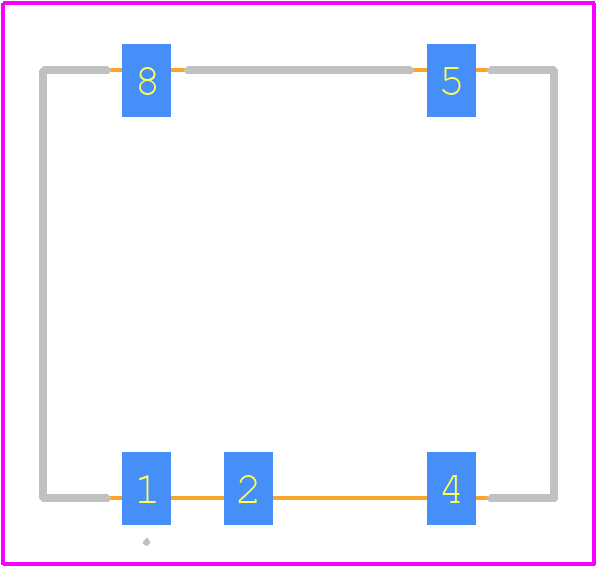

Footprint
-

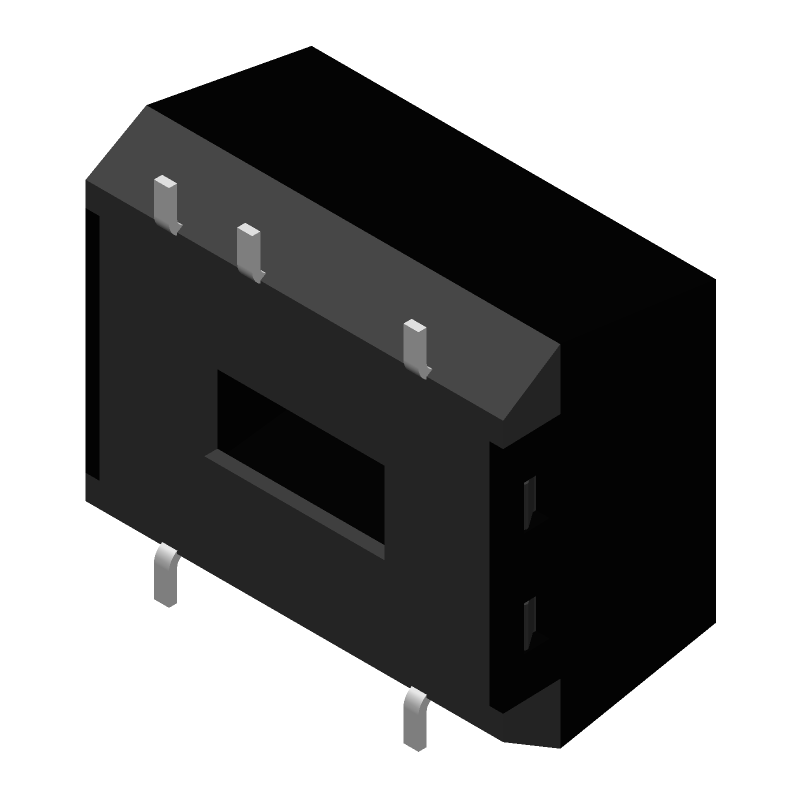

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R1S-0509-R by RECOM Power GmbH
Results Overview of R1S-0509-R by RECOM Power GmbH
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
R1S-0509-R Information
R1S-0509-R by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HI1-0509-7 | Rochester Electronics LLC | HI1-0509 - Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16 | |
| HI1-0509A/B | Rochester Electronics LLC | HI1-0509 - Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16 | |
| 50000-5099ELF | Amphenol Communications Solutions | High Pin Count, Backplane Connectors, Receptacle, Right Angle, Through Hole, 3 Row, 99 Positions, 0 Guide Pin, 2.54mm (0.100in) Pitch |
Price & Stock for R1S-0509-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
945-R1S-0509-RCT-ND
|
DigiKey | DC DC CONVERTER 9V 1W Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2179 In Stock |
|
$6.0500 / $7.9700 | Buy Now |
|
DISTI #
919-R1S-0509-R
|
Mouser Electronics | Isolated DC/DC Converters - SMD 1W DC/DC 1kV UNREG 5Vin 9Vout RoHS: Compliant | 293 |
|
$6.0500 / $7.6800 | Buy Now |
|
DISTI #
73560504
|
RS | DC-DC-Converter, 1W, 5Vin, 9Vout, Unregulated, SMD 5 Pin, R1S R1D Series Min Qty: 500 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 0 |
|
$7.9200 / $8.5100 | RFQ |
|
|
Onlinecomponents.com | Unregulated DC-DC Coverter - 1W - Input: 5VDC (+/-) 10% - Output: 9VDC - 8 Lead SMD - Tape&Reel RoHS: Compliant | Alternative Product Available |
|
$5.6200 / $11.7800 | Buy Now |
|
DISTI #
R1S-0509-R
|
TME | Converter: DC/DC, 1W, Uin: 4.5÷5.5VDC, Uout: 9VDC, Iout: 111mA, SMT Min Qty: 500 | 0 |
|
$6.2300 | RFQ |
|
DISTI #
000000000006049051
|
Sager | Isolated DC/DC Converters - SMD 1W DC/DC 1kV UNREG 5Vin 9Vout Min Qty: 1 | 0 |
|
$6.4600 / $7.5400 | Buy Now |
|
|
Master Electronics | Unregulated DC-DC Coverter - 1W - Input: 5VDC (+/-) 10% - Output: 9VDC - 8 Lead SMD - Tape&Reel RoHS: Compliant | Alternative Product Available |
|
$5.6200 / $11.7800 | Buy Now |
Part Details for R1S-0509-R
R1S-0509-R CAD Models
R1S-0509-R Part Data Attributes
|
|
R1S-0509-R
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R1S-0509-R
RECOM Power GmbH
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid, SMD-8/5
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | MODULE | |
| Package Description | SMD-8/5 | |
| Pin Count | 8/5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-XDMA-G5 | |
| JESD-609 Code | e1 | |
| Length | 12.75 mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.111 A | |
| Output Voltage-Max | 9.45 V | |
| Output Voltage-Min | 8.55 V | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,5LEAD,.45 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 255 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 7.5 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 5 | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 10.7 mm |
R1S-0509-R Frequently Asked Questions (FAQ)
-
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
-
Yes, the R1S-0509-R is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screw torque procedures to ensure the module's reliability.
-
To ensure reliability in high-temperature environments, RECOM recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and using a heat sink can help to reduce the module's operating temperature.
-
RECOM recommends using a low-ESR input capacitor with a value of 10-22 μF, X7R or X5R dielectric, and a voltage rating of at least 50V. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ripple.
-
Yes, the R1S-0509-R can be used in a redundant or parallel configuration to achieve higher power output or to improve system reliability. However, it's essential to follow RECOM's guidelines for parallel and redundant operation, and to ensure that the modules are properly synchronized and monitored.
