Switches / Rocker Switches / R1973ABLKYILEF1
Datasheets
R1973ABLKYILEF1 by:

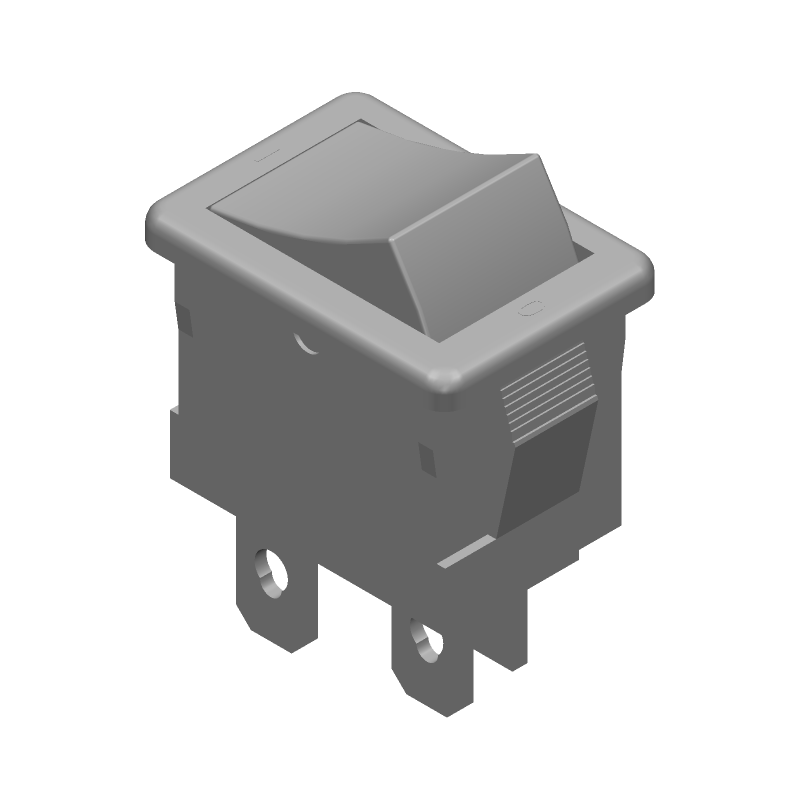

Rocker Switch, SPST, On-off, Quick Connect Terminal, Rocker Actuator, Panel Mount

Part Details for R1973ABLKYILEF1 by E-Switch Inc

Results Overview of R1973ABLKYILEF1 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

R1973ABLKYILEF1 Information

R1973ABLKYILEF1 by E-Switch Inc is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for R1973ABLKYILEF1

Part # Distributor Description Stock Price Buy
DISTI # EG5577-ND
DigiKey SWITCH ROCKER SPST 9A 125V Min Qty: 100 Lead time: 15 Weeks Container: Bulk Temporarily Out of Stock
  • 100 $2.0286
$2.0286 Buy Now
DISTI # 612-R1973ABLKYILEF1
Mouser Electronics Rocker Switches 9A 125VAC SPST Faston RoHS: Compliant 85
  • 1 $2.7100
  • 10 $2.4300
  • 100 $2.0000
  • 500 $1.8300
  • 1,000 $1.7500
  • 2,500 $1.6900
$1.6900 / $2.7100 Buy Now
DISTI # 74852116
RS Rocker Switch, SPST, ON-OFF, 9A, 125V AC, QC 0.187", R1973 Series Min Qty: 100 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 100 $3.2900
$3.2900 RFQ

Part Details for R1973ABLKYILEF1

R1973ABLKYILEF1 Part Data Attributes

Parametric Data
R1973ABLKYILEF1 E-Switch Inc
Buy Now Datasheet
Compare Parts:
R1973ABLKYILEF1 E-Switch Inc Rocker Switch, SPST, On-off, Quick Connect Terminal, Rocker Actuator, Panel Mount
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.70.00
Samacsys Manufacturer E-Switch
Actuator Length 0.244 inch
Actuator Material POLYCARBONATE
Actuator Type ROCKER
Additional Feature YELLOW ILLUMINATED NEON BULB
Body Breadth 13.0048 mm
Body Color BLACK
Body Height 13.9954 mm
Body Length or Diameter 18.5928 mm
Center Contact Material COIN SILVER
Center Contact Plating SILVER
Contact (AC) Max Rating R Load 6A@250VAC
Contact Current(AC)-Max 6 A
Contact Function ON-OFF
Contact Resistance 0.02 mΩ
Contact Voltage(AC)-Max 250 V
Dielectric Withstand Volts 1500VRMS V
Electrical Life 10000 Cycle(s)
End Contact Material COIN SILVER
End Contact Plating SILVER
Illumination LAMP
Insulation Resistance 1000000000 Ω
Insulator Material NYLON
Mounting Feature PANEL MOUNT
Operating Temperature-Min -30 °C
Surface Mount NO
Switch Function SPST
Switch Type ROCKER SWITCH
Terminal Length 0.315 inch
Terminal Material COPPER ALLOY
Termination Type QUICK CONNECT

Alternate Parts for R1973ABLKYILEF1

This table gives cross-reference parts and alternative options found for R1973ABLKYILEF1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R1973ABLKYILEF1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
R1973ABLKRILEF4 E-Switch Inc Check for Price Rocker Switch, SPST, On-off, Quick Connect Terminal, Rocker Actuator, Panel Mount R1973ABLKYILEF1 vs R1973ABLKRILEF4
R1973ABLKRILIF3 E-Switch Inc Check for Price Rocker Switch, SPST, On-off, Quick Connect Terminal, Rocker Actuator, Panel Mount R1973ABLKYILEF1 vs R1973ABLKRILIF3
