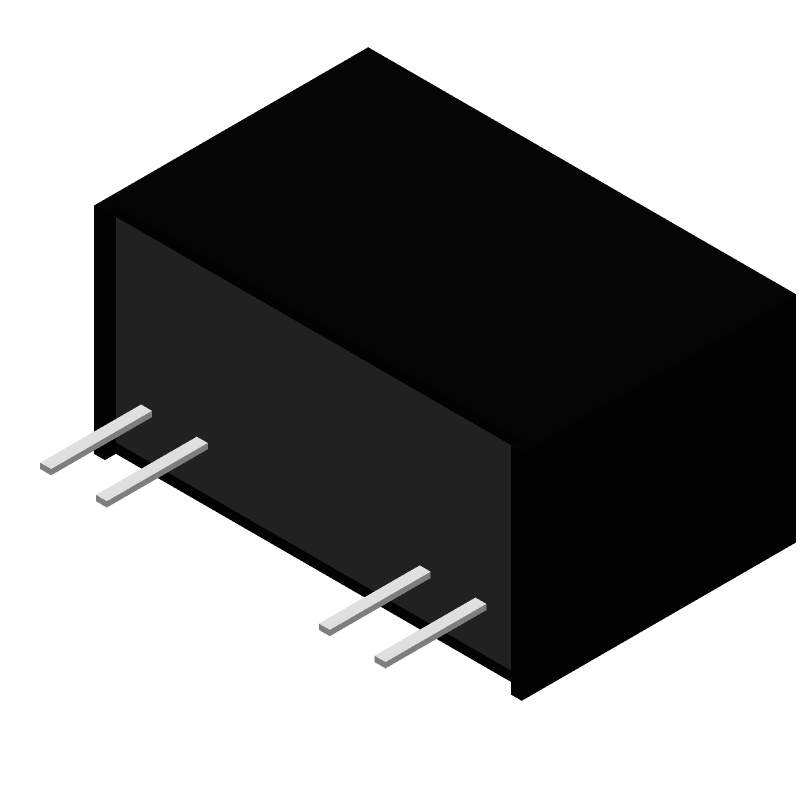

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R15P05S/P/X2/R8 by RECOM Power GmbH
Results Overview of R15P05S/P/X2/R8 by RECOM Power GmbH
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R15P05S/P/X2/R8 Information
R15P05S/P/X2/R8 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R15P05S/P/X2/R8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64X5049
|
Newark | 1W Dc/Dc-Converter Econoline Sip7 8Kv Unreg Rohs Compliant: Yes |Recom Power R15P05S/P/X2/R8 RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$25.8600 / $29.7900 | Buy Now |
|
DISTI #
R15P05S/P/X2/R8-ND
|
DigiKey | DC DC CONVERTER 5V 1W Min Qty: 25 Lead time: 17 Weeks Container: Tube | Temporarily Out of Stock |
|
$24.0272 | Buy Now |
|
DISTI #
919-R15P05SX2PR8
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 1W DC/DC 8kV UNREG 15Vin 5Vout RoHS: Compliant | 0 |
|
$22.9400 / $25.0200 | Order Now |
|
DISTI #
19900500
|
RECOM Power | 1W DC/DC-Converter 'ECONOLINE' SIP7 8kV unreg RoHS: Compliant | 0 |
|
RFQ | |
|
|
Onlinecomponents.com | DC-DC Converter - 1 Watt - SIP - Input: 15VDC (+/-) 10% - Output: 5VDC - Short Circuit Protection - 8kVDC Isolation - -40°C to +85°C RoHS: Compliant | 0 |
|
$19.8600 / $26.0700 | Buy Now |
|
DISTI #
000000000006048126
|
Sager | Isolated DC/DC Converters - Through Hole 1W DC/DC 8kV UNREG 15Vin 5Vout Min Qty: 1 | 0 |
|
$21.6000 / $25.2100 | Buy Now |
Part Details for R15P05S/P/X2/R8
R15P05S/P/X2/R8 CAD Models
R15P05S/P/X2/R8 Part Data Attributes
|
|
R15P05S/P/X2/R8
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R15P05S/P/X2/R8
RECOM Power GmbH
DC-DC Unregulated Power Supply Module
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-7/5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | CB, CSA, EN, IEC, UL | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 80% | |
| Input Voltage-Max | 16.5 V | |
| Input Voltage-Min | 13.5 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PSMA-T5 | |
| JESD-609 Code | e3 | |
| Length | 19.5 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | 5.25 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 255 | |
| Protections | OUTPUT OVER CURRENT | |
| Ripple Voltage (Main Out) | 0.0707 Vrms | |
| Seated Height-Max | 13 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 5 | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.8 mm |
