R1524N060B-TR-YE Information
R1524N060B-TR-YE by Nisshinbo Micro Devices is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1524N060B-TR-YE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1524N060B-TR-YE-ND
|
DigiKey | IC REG LINEAR 6V 200MA SOT23-5 Min Qty: 3000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.9626 / $0.9931 | Buy Now |
|
DISTI #
R1524N060B-TR-YE
|
Avnet Americas | LOW SUPPLY CURRENT 36V INPUT 200MA VOLTAGE REGULATOR - Tape and Reel (Alt: R1524N060B-TR-YE) Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.9581 | Buy Now |
|
DISTI #
848-R1524N060BTRYE
|
Mouser Electronics | LDO Voltage Regulators Low supply Current LDO Regulator RoHS: Compliant | 0 |
|
$0.9370 / $0.9560 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.8880 / $1.8590 | Buy Now |
Part Details for R1524N060B-TR-YE

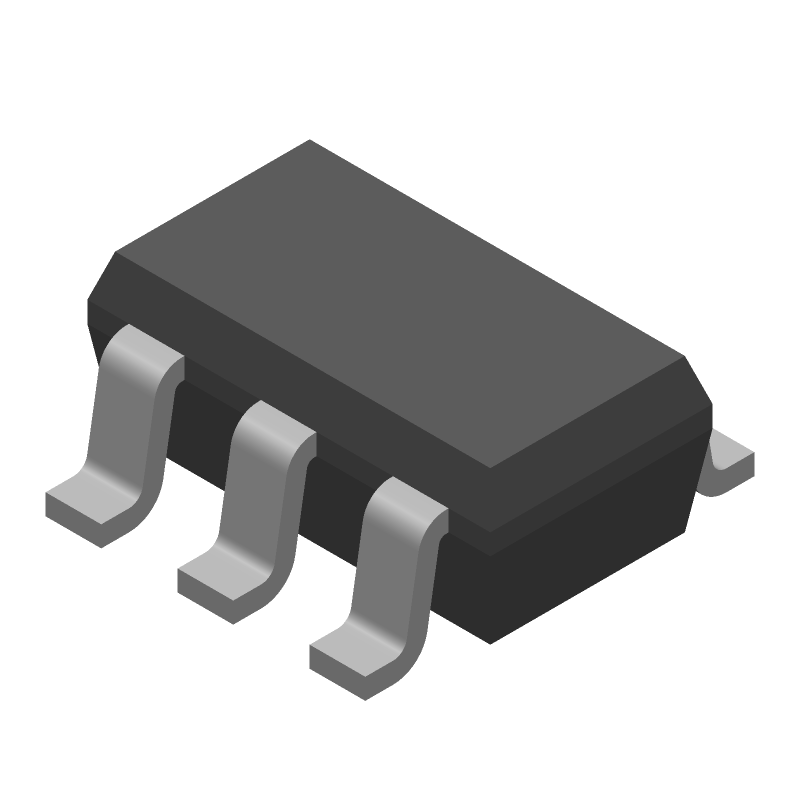

R1524N060B-TR-YE CAD Models
R1524N060B-TR-YE Part Data Attributes
|
|
R1524N060B-TR-YE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1524N060B-TR-YE
Nisshinbo Micro Devices
Fixed Positive LDO Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Nisshinbo | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.2 V | |
| Dropout Voltage1-Nom | 0.6 V | |
| Input Voltage Absolute-Max | 50 V | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.0348% | |
| Load Regulation-Max | 0.072% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -50 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -50 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 6.096 V | |
| Output Voltage1-Min | 5.904 V | |
| Output Voltage1-Nom | 6 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.3 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 1.6% | |
| Width | 1.6 mm |
