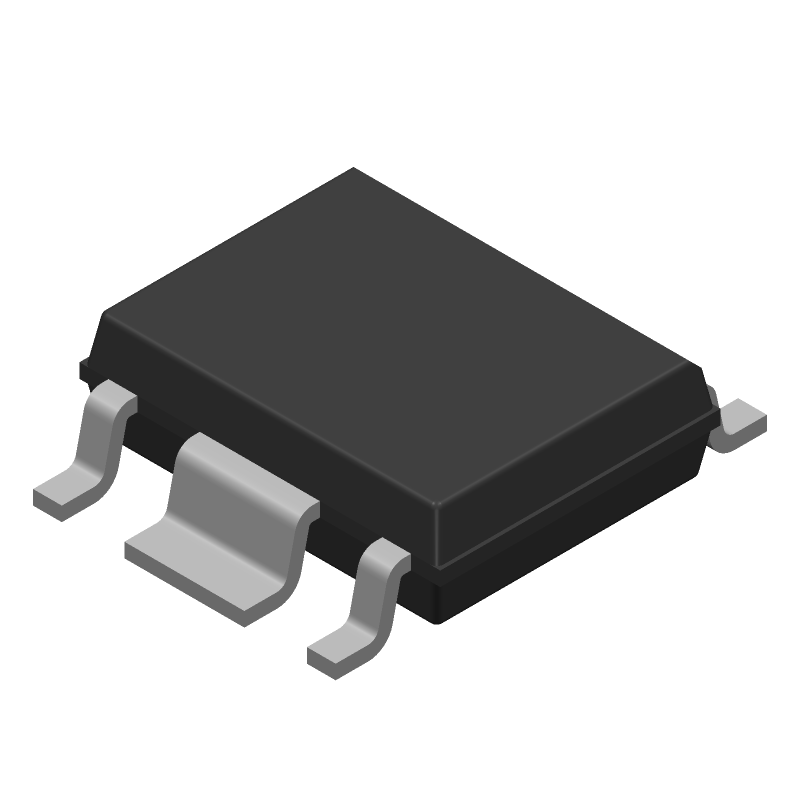

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R1518S341D-E2-FE by Nisshinbo Micro Devices
Results Overview of R1518S341D-E2-FE by Nisshinbo Micro Devices
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
Automotive
R1518S341D-E2-FE Information
R1518S341D-E2-FE by Nisshinbo Micro Devices is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1518S341D-E2-FE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1518S341D-E2-FE-ND
|
DigiKey | IC REG LINEAR 3.4V 1A 6-HSOP-J Min Qty: 1000 Lead time: 30 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.7369 / $0.7970 | Buy Now |
|
DISTI #
R1518S341D-E2-FE
|
Avnet Americas | LOW SUPPLY CURRENT 36V INPUT 1A VOLTAGE REGULATOR - Tape and Reel (Alt: R1518S341D-E2-FE) Min Qty: 1000 Package Multiple: 1000 Container: Reel | 0 |
|
$0.7276 | Buy Now |
|
DISTI #
848-R1518S341DE2FE
|
Mouser Electronics | LDO Voltage Regulators Low supply Current LDO Regulator RoHS: Compliant | 0 |
|
$0.7390 / $0.7960 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.7450 / $1.0860 | Buy Now |
Part Details for R1518S341D-E2-FE
R1518S341D-E2-FE CAD Models
R1518S341D-E2-FE Part Data Attributes
|
|
R1518S341D-E2-FE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1518S341D-E2-FE
Nisshinbo Micro Devices
Fixed Positive LDO Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Nisshinbo | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.6 V | |
| Dropout Voltage1-Nom | 0.9 V | |
| Input Voltage Absolute-Max | 50 V | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 3.5 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 5.02 mm | |
| Line Regulation-Max | 0.0477% | |
| Load Regulation-Max | 0.06% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 3.4612 V | |
| Output Voltage1-Min | 3.3388 V | |
| Output Voltage1-Nom | 3.4 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP6,.23,75 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.85 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.905 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.9 mm |
