R1501J090B-T1-FE Information
R1501J090B-T1-FE by Nisshinbo Micro Devices is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1501J090B-T1-FE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1501J090B-T1-FE-ND
|
DigiKey | IC REG LINEAR 9V 1A TO252-5-P2 Min Qty: 3000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.6645 / $0.6957 | Buy Now |
|
DISTI #
R1501J090B-T1-FE
|
Avnet Americas | 24V INPUT 1A VOLTAGE REGULATOR - Tape and Reel (Alt: R1501J090B-T1-FE) Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.6646 | Buy Now |
|
DISTI #
848-R1501J090BT1FE
|
Mouser Electronics | LDO Voltage Regulators LDO Regulator RoHS: Compliant | 0 |
|
$0.6520 / $0.6710 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.6160 / $1.2900 | Buy Now |
|
|
Quest Components | 2293 |
|
$0.3763 / $1.0750 | Buy Now |
Part Details for R1501J090B-T1-FE

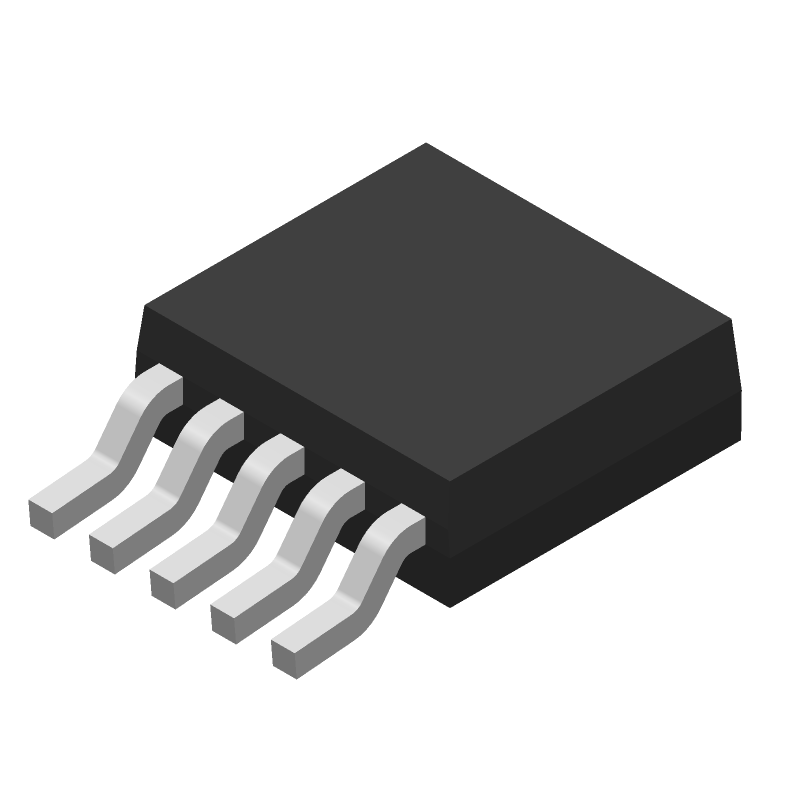

R1501J090B-T1-FE CAD Models
R1501J090B-T1-FE Part Data Attributes
|
|
R1501J090B-T1-FE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1501J090B-T1-FE
Nisshinbo Micro Devices
Fixed Positive LDO Regulator,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Package Description | TO-252-5-P2, 5-PIN | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Nisshinbo | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.775 V | |
| Dropout Voltage1-Nom | 0.475 V | |
| Input Voltage Absolute-Max | 36 V | |
| Input Voltage-Max | 24 V | |
| Input Voltage-Min | 10 V | |
| JESD-30 Code | R-PSSO-G5 | |
| Length | 6.6 mm | |
| Line Regulation-Max | 0.126% | |
| Load Regulation-Max | 0.3% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 9.315 V | |
| Output Voltage1-Min | 8.685 V | |
| Output Voltage1-Nom | 9 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP5H,.37,50TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Packing Method | TR | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 2.627 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 3.5% | |
| Width | 6.2 mm |
