Part Details for R1245S003G-E2-FE by Nisshinbo Micro Devices
Results Overview of R1245S003G-E2-FE by Nisshinbo Micro Devices
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R1245S003G-E2-FE Information
R1245S003G-E2-FE by Nisshinbo Micro Devices is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1245S003G-E2-FE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1245S003G-E2-FE-ND
|
DigiKey | IC REG BUCK ADJ 1.2A 8HSOP Min Qty: 1000 Lead time: 30 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.1138 / $1.1876 | Buy Now |
|
DISTI #
R1245S003G-E2-FE
|
Avnet Americas | 1.2A/30V INPUT PWM BUCK DC/DC CONVERTER - Tape and Reel (Alt: R1245S003G-E2-FE) Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$1.1109 | Buy Now |
|
DISTI #
848-R1245S003GE2FE
|
Mouser Electronics | Switching Voltage Regulators Buck DC/DC Converter RoHS: Compliant | 0 |
|
$1.1100 / $1.1800 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$1.1400 / $1.6600 | Buy Now |
|
DISTI #
86082172
|
Verical | Conv DC-DC 4.5V to 30V Step Down Single-Out 0.8V 1.2A 8-Pin HSOP-E EP T/R RoHS: Compliant Min Qty: 223 Package Multiple: 1 Date Code: 2101 | Americas - 7907 |
|
$1.4250 / $1.6875 | Buy Now |
|
|
Rochester Electronics | R1245S003G - 1.2A 30V Input PWM Step-down DC/DC Converter RoHS: Compliant Status: Active Min Qty: 1 | 7907 |
|
$1.1400 / $1.4200 | Buy Now |
Part Details for R1245S003G-E2-FE

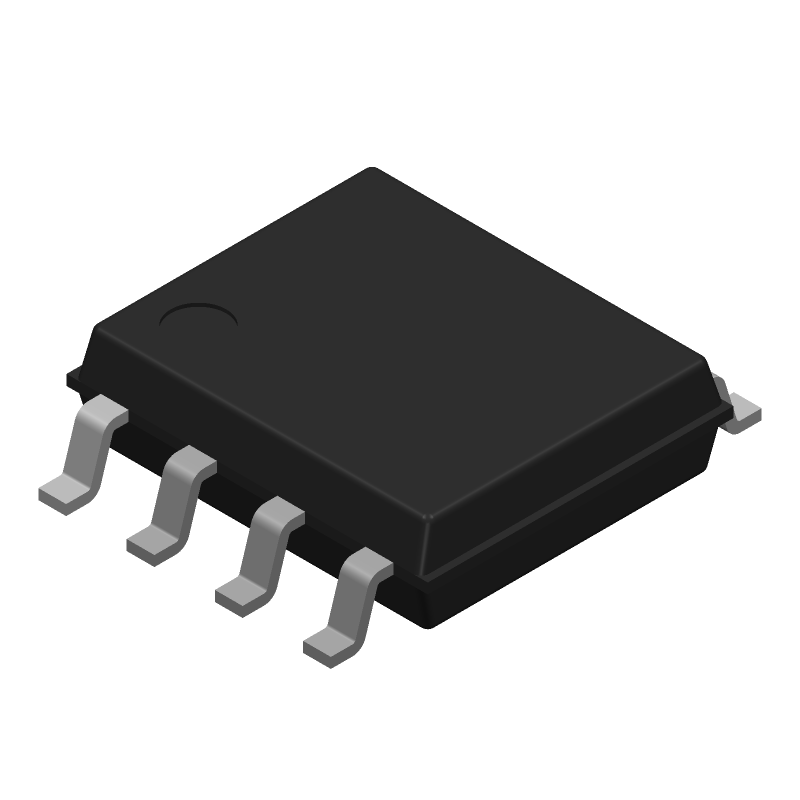

R1245S003G-E2-FE CAD Models
R1245S003G-E2-FE Part Data Attributes
|
|
R1245S003G-E2-FE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1245S003G-E2-FE
Nisshinbo Micro Devices
Switching Regulator, Current-mode, 1.2A, 2400kHz Switching Freq-Max, CMOS, PDSO8,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Nisshinbo | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 5.2 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.2 A | |
| Output Voltage-Min | 0.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP8,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Seated Height-Max | 1.6 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2400 kHz | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
