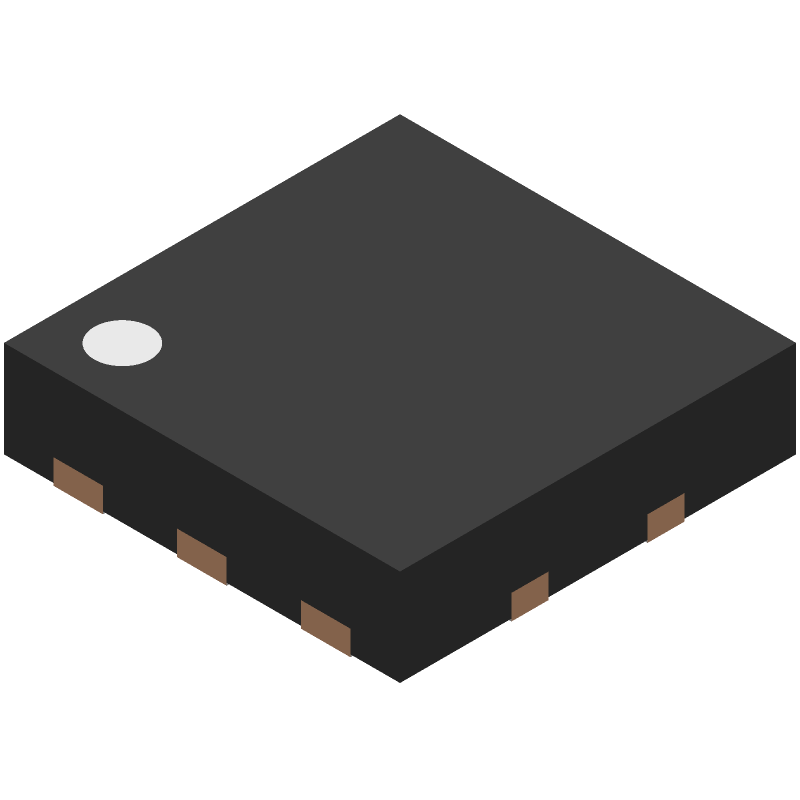

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R1202L411B-TR by Nisshinbo Micro Devices
Results Overview of R1202L411B-TR by Nisshinbo Micro Devices
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
R1202L411B-TR Information
R1202L411B-TR by Nisshinbo Micro Devices is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1202L411B-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1202L411B-TR-ND
|
DigiKey | IC REG BOOST ADJ 350MA 6DFN Min Qty: 5000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.4680 / $0.4829 | Buy Now |
|
DISTI #
R1202L411B-TR
|
Avnet Americas | PWM BOOST DC/DC CONVERTER FOR WHITE LED/PMOLED AND GENERAL USE - Tape and Reel (Alt: R1202L411B-TR) Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.4624 / $0.5048 | Buy Now |
|
DISTI #
848-R1202L411B-TR
|
Mouser Electronics | Switching Voltage Regulators PWM Step-up DCDC Converter for White LED/PMOLED and General Use with Shutdown Function RoHS: Compliant | 0 |
|
$0.4540 / $0.4810 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.4382 / $0.9180 | Buy Now |
Part Details for R1202L411B-TR
R1202L411B-TR CAD Models
R1202L411B-TR Part Data Attributes
|
|
R1202L411B-TR
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1202L411B-TR
Nisshinbo Micro Devices
Switching Regulator,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Nisshinbo | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PDSO-N6 | |
| Length | 1.6 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.45 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.06,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Seated Height-Max | 0.4 mm | |
| Supply Current-Max (Isup) | 1.2 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1400 kHz | |
| Technology | CMOS | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
