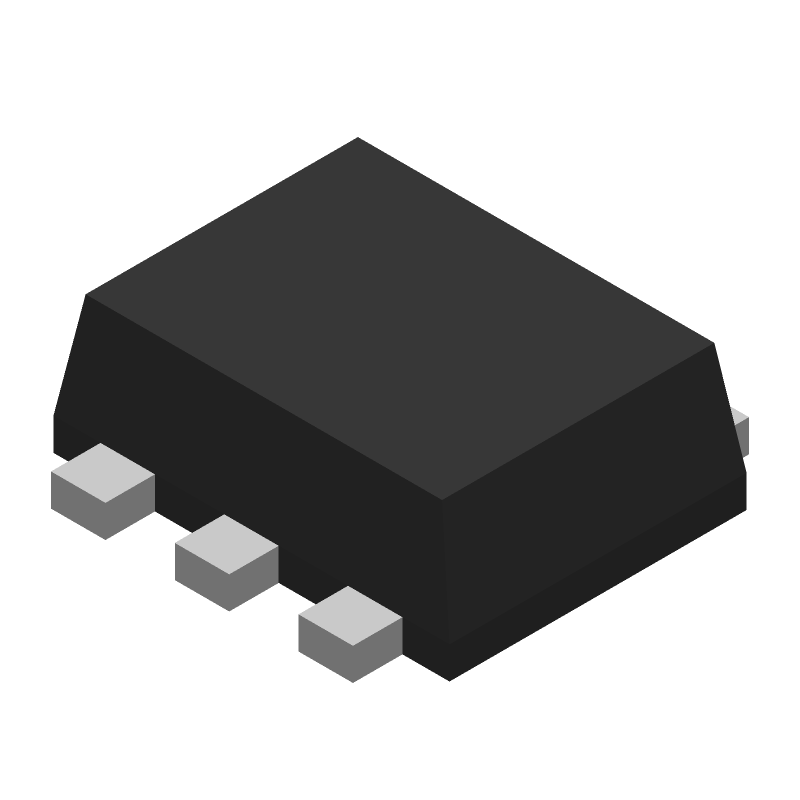

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R1180D281C-TR-FE by Nisshinbo Micro Devices
Results Overview of R1180D281C-TR-FE by Nisshinbo Micro Devices
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
R1180D281C-TR-FE Information
R1180D281C-TR-FE by Nisshinbo Micro Devices is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1180D281C-TR-FE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1180D281C-TR-FE-ND
|
DigiKey | IC REG LIN 2.8V 150MA SON1612-6 Min Qty: 4000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2249 / $0.2408 | Buy Now |
|
DISTI #
R1180D281C-TR-FE
|
Avnet Americas | LDO Voltage Regulators Low Supply Current 150mA Voltage Regulator (LDO Regulator) - Tape and Reel (Alt: R1180D281C-TR-FE) Min Qty: 4000 Package Multiple: 4000 Container: Reel | 0 |
|
$0.2305 | Buy Now |
|
DISTI #
848-R1180D281C-TR-FE
|
Mouser Electronics | LDO Voltage Regulators Low Supply Current 150mA Voltage Regulator (LDO Regulator) RoHS: Compliant | 0 |
|
$0.2270 / $1.1800 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.2360 / $0.3440 | Buy Now |
|
DISTI #
R1180D281C-TR-FE
|
EBV Elektronik | LDO Voltage Regulators Low Supply Current 150mA Voltage Regulator LDO Regulator (Alt: R1180D281C-TR-FE) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 25 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for R1180D281C-TR-FE
R1180D281C-TR-FE CAD Models
R1180D281C-TR-FE Part Data Attributes
|
|
R1180D281C-TR-FE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1180D281C-TR-FE
Nisshinbo Micro Devices
Fixed Positive LDO Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Package Description | SON-6 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Nisshinbo | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.4 V | |
| Dropout Voltage1-Nom | 0.25 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 3.3 V | |
| JESD-30 Code | R-PDSO-F6 | |
| Length | 1.6 mm | |
| Line Regulation-Max | 0.01512% | |
| Load Regulation-Max | 0.04% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 2.856 V | |
| Output Voltage1-Min | 2.744 V | |
| Output Voltage1-Nom | 2.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOF | |
| Package Equivalence Code | FL6,.047,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.6 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | FLAT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.2 mm |
