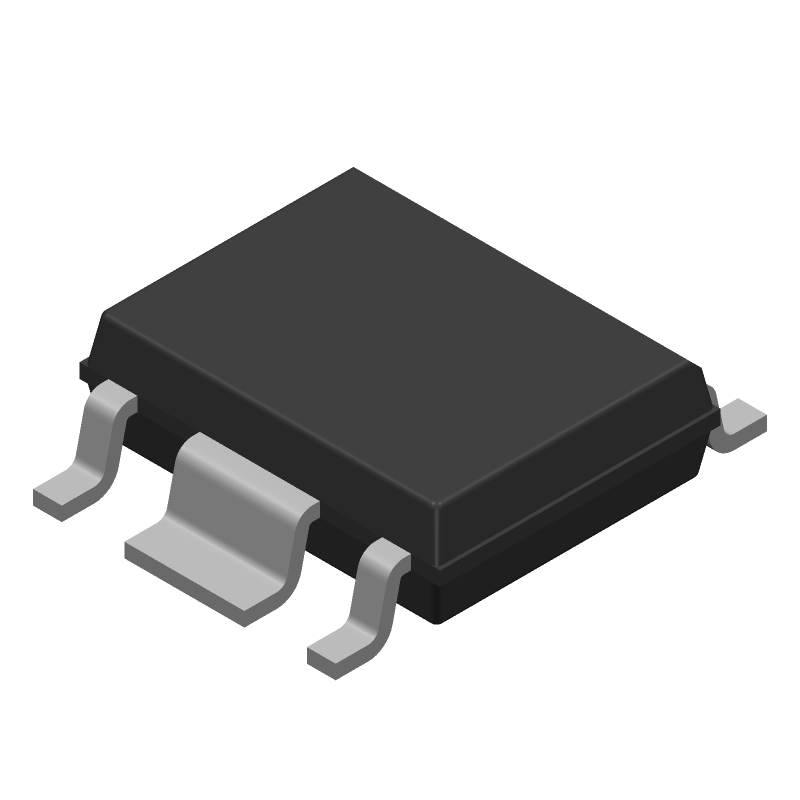

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R1172S331D-E2-FE by Nisshinbo Micro Devices
Results Overview of R1172S331D-E2-FE by Nisshinbo Micro Devices
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Robotics and Drones
R1172S331D-E2-FE Information
R1172S331D-E2-FE by Nisshinbo Micro Devices is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R1172S331D-E2-FE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R1172S331D-E2-FE-ND
|
DigiKey | IC REG LINEAR 3.3V 1A 6-HSOP-J Min Qty: 1000 Lead time: 30 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5127 / $0.5574 | Buy Now |
|
DISTI #
R1172S331D-E2-FE
|
Avnet Americas | LOW VOLTAGE 1A VOLTAGE REGULATOR - Tape and Reel (Alt: R1172S331D-E2-FE) Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.5105 | Buy Now |
|
DISTI #
848-R1172S331DE2FE
|
Mouser Electronics | LDO Voltage Regulators Low voltage LDO Regulator RoHS: Compliant | 970 |
|
$0.5030 / $1.8900 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.4913 / $0.7330 | Buy Now |
Part Details for R1172S331D-E2-FE
R1172S331D-E2-FE CAD Models
R1172S331D-E2-FE Part Data Attributes
|
|
R1172S331D-E2-FE
Nisshinbo Micro Devices
Buy Now
Datasheet
|
Compare Parts:
R1172S331D-E2-FE
Nisshinbo Micro Devices
Fixed Positive LDO Regulator, 3.3V, 0.1V Dropout, CMOS, PDSO6, HSOP-6
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NISSHINBO MICRO DEVICES INC | |
| Package Description | HSOP-6 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Nisshinbo | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.1 V | |
| Dropout Voltage1-Nom | 0.05 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 3.8 V | |
| JESD-30 Code | R-PDSO-G6 | |
| Length | 5.02 mm | |
| Line Regulation-Max | 0.01452% | |
| Load Regulation-Max | 0.03% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP6,.25,75 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Packing Method | TR | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.85 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.905 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.9 mm |
