R0.5S-2405/H Information
R0.5S-2405/H by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 93992-405HLF | Amphenol Communications Solutions | BergStik® 2.54mm, Board To Board Connector, Unshrouded Vertical Header, Through Hole, Single Row, 5 Positions, 2.54mm (0.100in) Pitch. | |
| 51760-10502405AALF | Amphenol Communications Solutions | PwrBlade®, Power Supply Connectors, 5P 24S 5P STB Right Angle Receptacle. | |
| 51740-10502405CALF | Amphenol Communications Solutions | PwrBlade®, Power Supply Connectors, 5P 24S 5P PF Vertical Receptacle. |
Price & Stock for R0.5S-2405/H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R0.5S-2405/H-ND
|
DigiKey | DC DC CONVERTER 5V 500MW Min Qty: 40 Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
$9.7485 | Buy Now |
|
DISTI #
919-R0.5S-2405/H
|
Mouser Electronics | Isolated DC/DC Converters - SMD 0.5W 24V 05V SMD 3kV unreg RoHS: Compliant | 0 |
|
$9.2200 / $10.4800 | Order Now |
|
|
Onlinecomponents.com | DC-DC Converter - 1/2 Watt - Single Output - Input: 24VDC (+/-) 10% - Output: 5VDC - 3kVDC Isolation - 8-Lead SMD RoHS: Compliant | 0 |
|
$7.9900 / $10.4800 | Buy Now |
|
DISTI #
R0.5S-2405/H
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 40 | 0 |
|
$7.6000 | Buy Now |
|
DISTI #
000000000006047354
|
Sager | Isolated DC/DC Converters - SMD 0.5W 24V 05V SMD 3kV unreg Min Qty: 1 | 0 |
|
$8.6900 / $10.1300 | Buy Now |
Part Details for R0.5S-2405/H

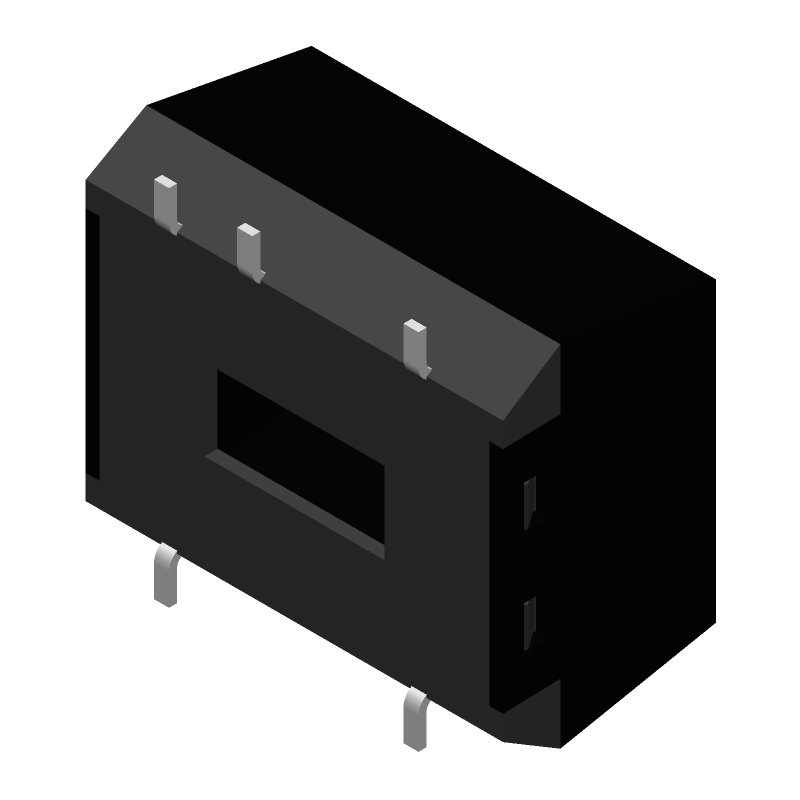

R0.5S-2405/H CAD Models
R0.5S-2405/H Part Data Attributes
|
|
R0.5S-2405/H
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R0.5S-2405/H
RECOM Power GmbH
DC-DC Unregulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SOP, GWDIP5/8,.48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 26.4 V | |
| Input Voltage-Min | 21.6 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-XDMA-G5 | |
| JESD-609 Code | e1 | |
| Length | 12.75 mm | |
| Load Regulation-Max | 15% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 5.25 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SOP | |
| Package Equivalence Code | GWDIP5/8,.48 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 7.25 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Power Output-Max | 0.5 W | |
| Trim/Adjustable Output | NO | |
| Width | 10.7 mm |
R0.5S-2405/H Frequently Asked Questions (FAQ)
-
RECOM recommends a PCB layout with a large copper area (at least 1 inch²) connected to the module's thermal pad, and multiple vias to dissipate heat effectively.
-
Yes, the R0.5S-2405/H is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to follow RECOM's guidelines for mechanical fixation and ensure proper mounting to prevent damage.
-
RECOM recommends following the guidelines in the datasheet for proper PCB layout, component placement, and shielding to minimize electromagnetic interference (EMI). Additionally, ensure that the module is installed in a metal enclosure with proper grounding.
-
RECOM recommends an output filter capacitance of ≤ 10µF to prevent oscillation and ensure stable operation. However, the exact value may vary depending on the specific application and load characteristics.
-
The R0.5S-2405/H is designed to operate up to 5,000 meters (16,400 ft) above sea level. However, derating may be necessary for higher altitudes, and RECOM recommends consulting their application notes for guidance.
