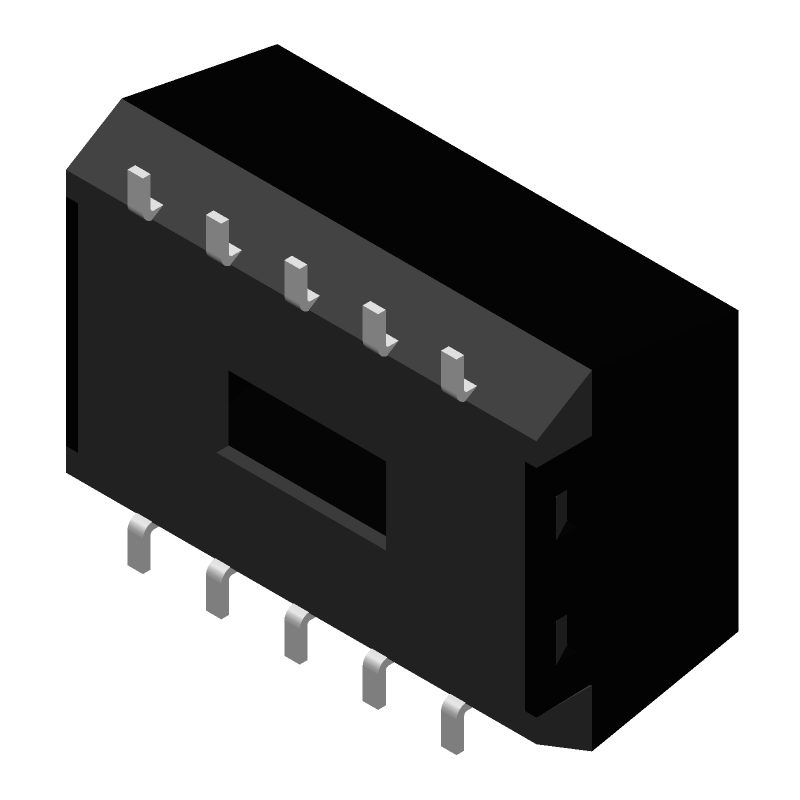

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R0.5D10-3.312 by RECOM Power GmbH
Results Overview of R0.5D10-3.312 by RECOM Power GmbH
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
R0.5D10-3.312 Information
R0.5D10-3.312 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R0.5D10-3.312
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64X2655
|
Newark | 0.5W Dc/Dc-Converter Econoline Smd 1Kv Unreg Rohs Compliant: Yes |Recom Power R0.5D10-3.312 RoHS: Compliant Min Qty: 33 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$10.4400 / $14.4600 | Buy Now |
|
DISTI #
2266-R0.5D10-3.312-ND
|
DigiKey | DC DC CONVERTER +/-12V 500MW Min Qty: 10 Lead time: 16 Weeks Container: Retail Package MARKETPLACE PRODUCT |
29 In Stock |
|
$8.6200 | Buy Now |
|
DISTI #
R0.5D10-3.312-ND
|
DigiKey | DC DC CONVERTER +/-12V 500MW Min Qty: 10 Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
$9.8242 | Buy Now |
|
DISTI #
919-R0.5D10-3.312
|
Mouser Electronics | Isolated DC/DC Converters - SMD 0.5W 3.3V +/-12V SMD 1kV unreg RoHS: Compliant | 0 |
|
$9.3700 / $11.0500 | Order Now |
|
|
Onlinecomponents.com | DC-DC Converter - 1/2 Watt - Dual Output - Input: 3.3VDC (+/-) 10% - Output: (+/-) 12VDC - 10-Lead SMD RoHS: Compliant |
29 Partner Stock |
|
$8.1700 / $10.7300 | Buy Now |
|
DISTI #
R0.5D10-3.312
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 33 | 0 |
|
$7.6300 | Buy Now |
|
DISTI #
000000000006047200
|
Sager | Isolated DC/DC Converters - SMD 0.5W 3.3V +/-12V SMD 1kV unreg Min Qty: 1 | 0 |
|
$8.7100 / $10.1500 | Buy Now |
|
|
Master Electronics | DC-DC Converter - 1/2 Watt - Dual Output - Input: 3.3VDC (+/-) 10% - Output: (+/-) 12VDC - 10-Lead SMD RoHS: Compliant |
29 Partner Stock |
|
$8.1700 / $10.7300 | Buy Now |
Part Details for R0.5D10-3.312
R0.5D10-3.312 CAD Models
R0.5D10-3.312 Part Data Attributes
|
|
R0.5D10-3.312
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R0.5D10-3.312
RECOM Power GmbH
DC-DC Unregulated Power Supply Module
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Additional Feature | IT HAS ALSO -5V OUTPUT | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 3.63 V | |
| Input Voltage-Min | 2.97 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | R-XDMA-G10 | |
| Length | 15.24 mm | |
| Load Regulation-Max | 15% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.021 A | |
| Output Voltage-Max | 5.25 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SOP | |
| Package Equivalence Code | GWDIP10,.44 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 7.25 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Power Output-Max | 0.5 W | |
| Trim/Adjustable Output | NO | |
| Width | 10.7 mm |
