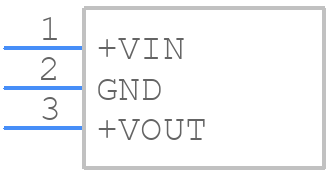

Part Symbol
-

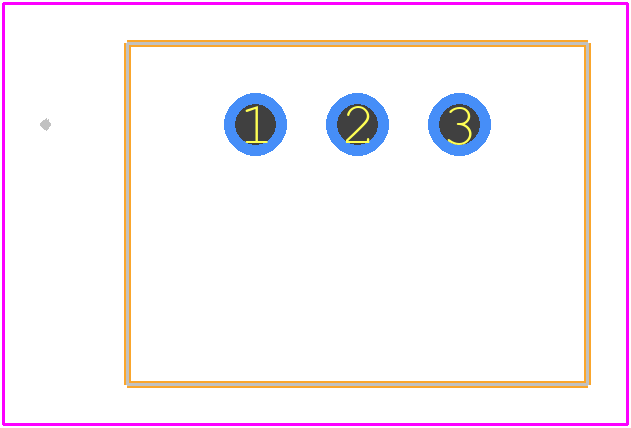

Footprint
-

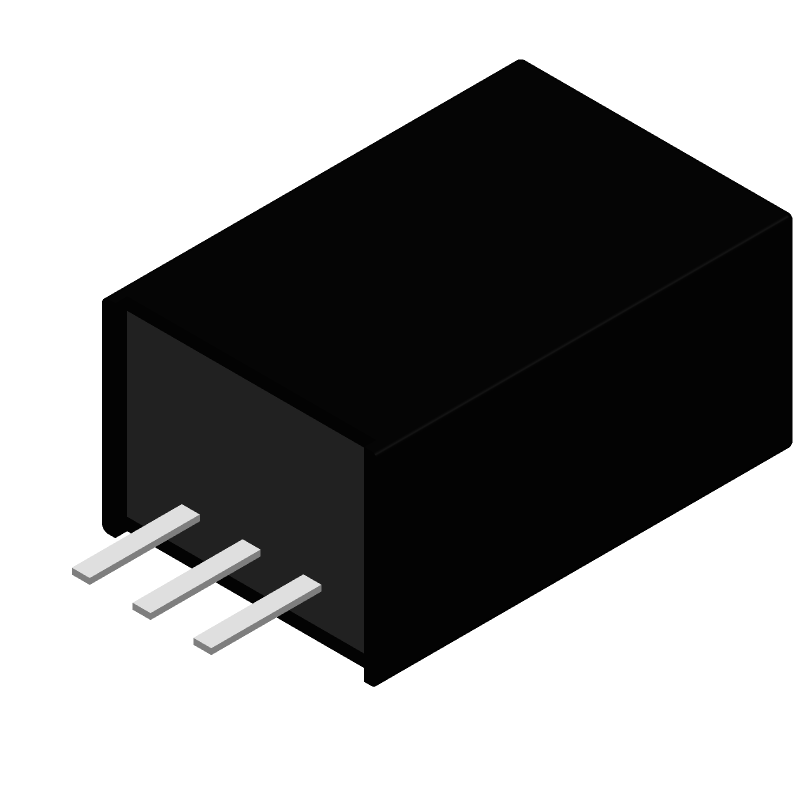

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R-78HB24-0.3 by RECOM Power GmbH
Results Overview of R-78HB24-0.3 by RECOM Power GmbH
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R-78HB24-0.3 Information
R-78HB24-0.3 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R-78HB24-0.3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1793168
|
Farnell | DC-DC CONVERTER, 24V, 0.3A RoHS: Compliant Min Qty: 1 Lead time: 7 Weeks, 1 Days Container: Each | 42 |
|
$16.9148 / $19.4222 | Buy Now |
|
DISTI #
945-1059-ND
|
DigiKey | DC DC CONVERTER 24V 7.2W Min Qty: 1 Lead time: 6 Weeks Container: Tube |
149 In Stock |
|
$15.2591 / $17.6700 | Buy Now |
|
DISTI #
919-R-78HB24-0.3
|
Mouser Electronics | Non-Isolated DC/DC Converters 0.3A DC/DC REG 36-72Vin 24Vout RoHS: Compliant | 172 |
|
$14.2800 / $17.1000 | Buy Now |
|
DISTI #
E02:0323_02277786
|
Arrow Electronics | Module DC-DC 1-OUT 24V 0.3A 7.2W 3-Pin SIP Tube Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2448 | Europe - 180 |
|
$13.8720 / $16.4724 | Buy Now |
|
DISTI #
70052262
|
RS | Recom Switching Regulator, 36 - 72V Input, 24V Output, 0.3A Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$16.4800 / $18.7200 | RFQ |
|
|
Future Electronics | R-78HB Series Single Output 24 V DC/DC Converter - SIP-3 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Tube | 42Tube |
|
$12.4300 / $13.0600 | Buy Now |
|
|
Onlinecomponents.com | DC-DC Switching Regulator - 36 to 72VDC Input - 24VDC@0.3A Output - LM78xx Pin Compatable RoHS: Compliant |
94 In Stock |
|
$11.9500 / $17.7900 | Buy Now |
|
DISTI #
87289843
|
Verical | Module DC-DC 1-OUT 24V 0.3A 7.2W 3-Pin SIP Tube Min Qty: 1 Package Multiple: 1 Date Code: 2448 | Americas - 180 |
|
$13.9842 / $16.6056 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 15 |
|
$10.1250 / $15.0000 | Buy Now |
|
|
Bristol Electronics | 11 |
|
RFQ |
Part Details for R-78HB24-0.3
R-78HB24-0.3 CAD Models
R-78HB24-0.3 Part Data Attributes
|
|
R-78HB24-0.3
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R-78HB24-0.3
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 7.2W, Hybrid, SIP-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 72 V | |
| Input Voltage-Min | 36 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-PSMA-T3 | |
| JESD-609 Code | e3 | |
| Length | 11.5 mm | |
| Load Regulation-Max | 0.6% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.5 A | |
| Output Voltage-Max | 24.72 V | |
| Output Voltage-Min | 23.28 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SIP3,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 18 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 5 | |
| Total Power Output-Max | 7.2 W | |
| Trim/Adjustable Output | NO | |
| Width | 8.5 mm |
