Part Details for R-78CK5.0-0.5 by RECOM Power GmbH
Results Overview of R-78CK5.0-0.5 by RECOM Power GmbH
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R-78CK5.0-0.5 Information
R-78CK5.0-0.5 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R-78CK5.0-0.5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4248099
|
Farnell | DC-DC CONVERTER, 5V, 0.5A RoHS: Compliant Min Qty: 1 Lead time: 16 Weeks, 1 Days Container: Each | 123 |
|
$3.1210 / $3.8413 | Buy Now |
|
DISTI #
945-R-78CK5.0-0.5-ND
|
DigiKey | 0.5A DC/DC-CONVERTER 'INNOLINE' Min Qty: 1 Lead time: 15 Weeks Container: Tube |
654 In Stock |
|
$2.7166 / $3.1400 | Buy Now |
|
DISTI #
919-R-78CK5.0-0.5
|
Mouser Electronics | Non-Isolated DC/DC Converters 500mA 6.5V-40Vin 5Vout RoHS: Compliant | 272 |
|
$2.6800 / $3.4000 | Buy Now |
|
DISTI #
80000323
|
RECOM Power | 0.5A DC/DC-Converter 'INNOLINE' SIP3 reg RoHS: Compliant | 660 |
|
RFQ | |
|
|
Onlinecomponents.com | 0.5A DC/DC-Converter - 5.0VDC - Input: 6.5-40 VDC - -40 to 100°C - SIP3 - Tube RoHS: Compliant |
43 In Stock 172 On Order 34 Factory Stock |
|
$2.2400 / $2.8200 | Buy Now |
|
DISTI #
R-78CK5.0-0.5
|
TME | Converter: DC/DC, Uin: 6.5÷40VDC, Uout: 5VDC, Iout: 500mA, SIP3, THT Min Qty: 1 | 0 |
|
$2.3600 / $2.7100 | RFQ |
|
DISTI #
R-78CK5.0-0.5
|
Richardson RFPD | AC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 43 | 0 |
|
$2.1900 | Buy Now |
|
DISTI #
000000000007167397
|
Sager | Non-Isolated DC/DC Converters 500mA 6.5V-40Vin 5Vout Min Qty: 1 | 215 |
|
$2.5000 / $2.9200 | Buy Now |
|
|
Master Electronics | 0.5A DC/DC-Converter - 5.0VDC - Input: 6.5-40 VDC - -40 to 100°C - SIP3 - Tube RoHS: Compliant |
43 In Stock 172 On Order 34 Factory Stock |
|
$2.2400 / $2.8200 | Buy Now |
Part Details for R-78CK5.0-0.5

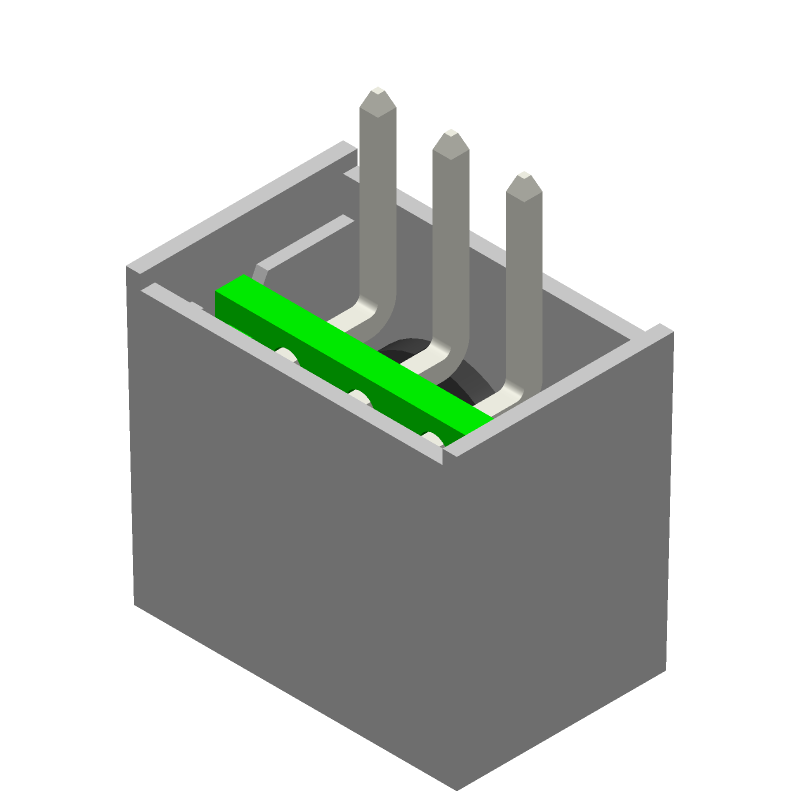

R-78CK5.0-0.5 CAD Models
