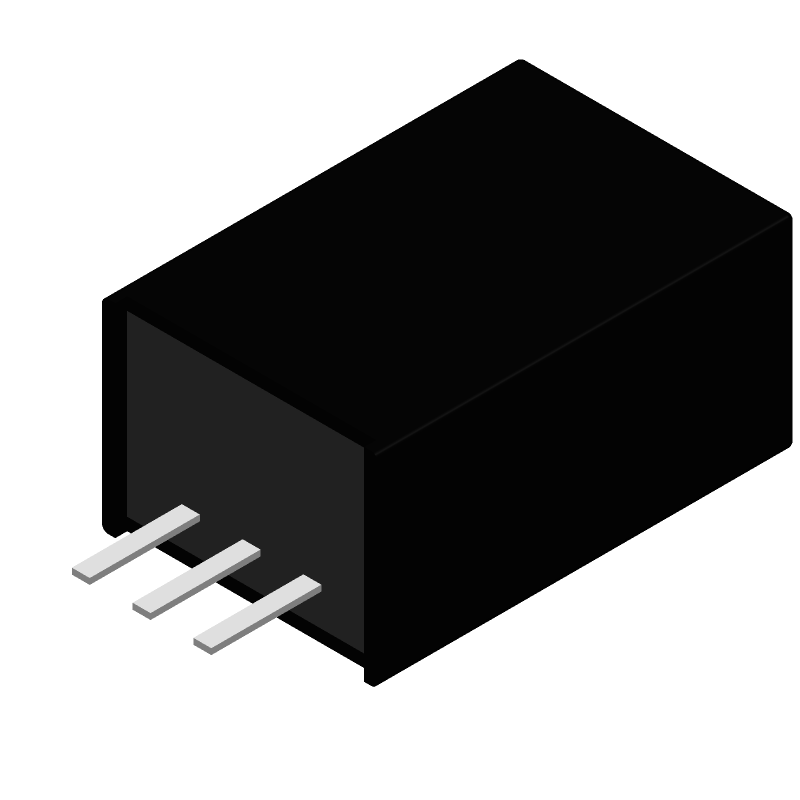

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R-78B12-1.0 by RECOM Power GmbH
Results Overview of R-78B12-1.0 by RECOM Power GmbH
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R-78B12-1.0 Information
R-78B12-1.0 by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R-78B12-1.0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1793153
|
Farnell | DC-DC CONVERTER, 12V, 1A RoHS: Compliant Min Qty: 1 Lead time: 7 Weeks, 1 Days Container: Each | 31 |
|
$11.0296 / $13.2461 | Buy Now |
|
DISTI #
945-1046-ND
|
DigiKey | DC DC CONVERTER 12V 12W Min Qty: 1 Lead time: 6 Weeks Container: Tube |
319 In Stock |
|
$10.0236 / $11.6100 | Buy Now |
|
DISTI #
919-R-78B12-1.0
|
Mouser Electronics | Non-Isolated DC/DC Converters 1A DC/DC REG 16-34Vin 12Vout RoHS: Compliant | 372 |
|
$9.3500 / $11.3500 | Buy Now |
|
DISTI #
E02:0323_02023466
|
Arrow Electronics | Module DC-DC 32VIN 1-OUT 12V 1A 12W 3-Pin SIP Tube Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks | Europe - 210 |
|
$9.1579 / $10.9479 | Buy Now |
|
DISTI #
70051995
|
RS | DC-DC Converter, Out 12VDC, In 16 to 34VDC, Thru-Hole, Encapsulated, 1 Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$13.4800 / $15.3200 | RFQ |
|
|
Future Electronics | R-78B-1.0 Series Single Output 12 V DC/DC Converter - SIP-3 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Tube | 140Tube |
|
$9.1600 / $9.6200 | Buy Now |
|
|
Onlinecomponents.com | DC-DC Switching Regulator - 16 to 32VDC Input - 12VDC@1A Output - LM78xx Pin Compatable RoHS: Compliant |
336 In Stock 1000 Factory Stock |
|
$8.2600 / $11.3200 | Buy Now |
|
DISTI #
46073344
|
Verical | Module DC-DC 32VIN 1-OUT 12V 1A 12W 3-Pin SIP Tube Min Qty: 1 Package Multiple: 1 | Americas - 210 |
|
$9.1839 / $10.9789 | Buy Now |
|
|
Future Electronics | R-78B-1.0 Series Single Output 12 V DC/DC Converter - SIP-3 Min Qty: 1 Package Multiple: 1 |
140 null |
|
$8.6400 / $9.0700 | Buy Now |
|
DISTI #
R-78B12-1.0
|
TME | Converter: DC/DC, 12W, Uin: 16÷32VDC, Uout: 12VDC, Iout: 1A, SIP3, PCB Min Qty: 1 | 372 |
|
$10.2700 / $11.7400 | Buy Now |
Part Details for R-78B12-1.0
R-78B12-1.0 CAD Models
R-78B12-1.0 Part Data Attributes
|
|
R-78B12-1.0
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R-78B12-1.0
RECOM Power GmbH
DC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid, ROHS COMPLIANT, PLASTIC, SIP-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Part Package Code | MODULE | |
| Package Description | SIP-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 32 V | |
| Input Voltage-Min | 16 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PSMA-T3 | |
| Length | 11.5 mm | |
| Load Regulation-Max | 0.4% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Output Voltage-Max | 12.36 V | |
| Output Voltage-Min | 11.64 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SIP3,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 18 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 12 W | |
| Trim/Adjustable Output | NO | |
| Width | 8.5 mm |
R-78B12-1.0 Frequently Asked Questions (FAQ)
-
The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
-
The R-78B12-1.0 is rated for operation up to 71°C, but derating is required above 50°C. Consult the datasheet for specific derating curves.
-
Use a 10uF ceramic capacitor between VIN and GND, and a 10uF ceramic capacitor between VOUT and GND, both with a voltage rating of 25V or higher.
-
The R-78B12-1.0 requires a minimum load of 5mA to maintain regulation. If the load is less than 5mA, consider adding a bleeder resistor to ensure proper operation.
-
No, it's not recommended to parallel multiple R-78B12-1.0 devices. Instead, consider using a higher-current version of the regulator or a different regulator designed for higher currents.
