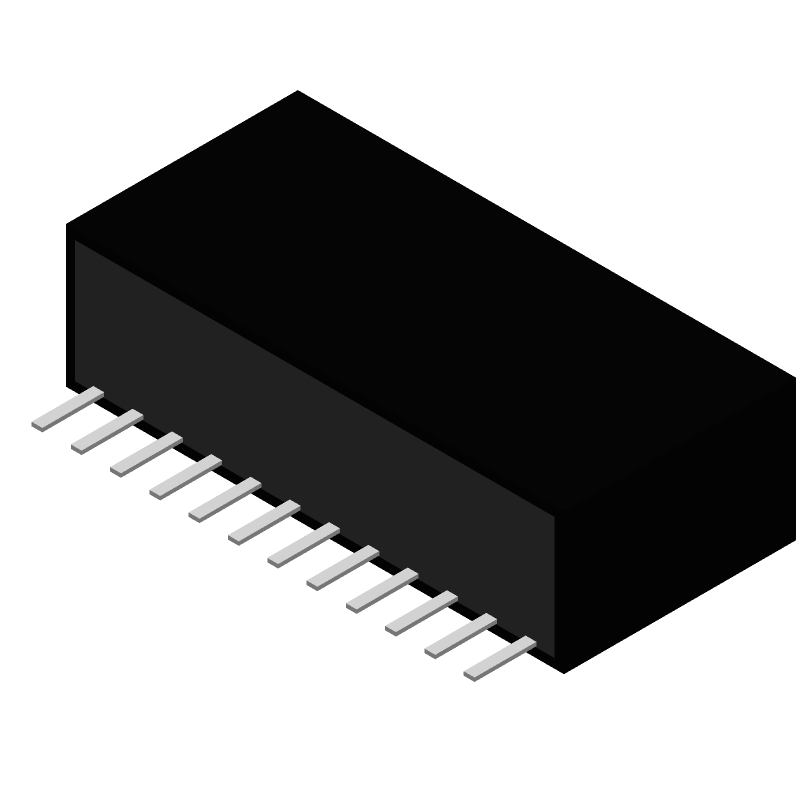

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for R-621.8P by RECOM Power GmbH
Results Overview of R-621.8P by RECOM Power GmbH
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
R-621.8P Information
R-621.8P by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for R-621.8P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
R-621.8P-ND
|
DigiKey | DC DC CONVERTER 1.8V Min Qty: 15 Lead time: 17 Weeks Container: Tube | Temporarily Out of Stock |
|
$21.5627 | Buy Now |
|
DISTI #
919-R-621.8P
|
Mouser Electronics | Non-Isolated DC/DC Converters DC/DC REG 9-32Vin 1.5-3.6Vout RoHS: Compliant | 0 |
|
$19.5800 / $22.1000 | Order Now |
|
DISTI #
73561675
|
RS | DC-DC-Converter, 2A, 9-32Vin, Vout, Regulated, SIP12, R-6 Series Min Qty: 15 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 0 |
|
$23.3700 / $25.1200 | RFQ |
|
|
Onlinecomponents.com | DC-DC Switching Regulator - 9 to 32VDC Input - 1.8VDC@2A Output - 12 Lead Vertical Mount SIP RoHS: Compliant | 0 |
|
$17.5600 / $23.0500 | Buy Now |
|
DISTI #
000000000006045604
|
Sager | Non-Isolated DC/DC Converters DC/DC REG 9-32Vin 1.5-3.6Vout Min Qty: 1 | 0 |
|
$19.1000 / $22.3000 | Buy Now |
Part Details for R-621.8P
R-621.8P CAD Models
R-621.8P Part Data Attributes
|
|
R-621.8P
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
R-621.8P
RECOM Power GmbH
DC-DC Regulated Power Supply Module
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECOM POWER GMBH | |
| Package Description | SIP-12 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | RECOM Power | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 32 V | |
| Input Voltage-Min | 9 V | |
| JESD-30 Code | R-PSMA-T12 | |
| JESD-609 Code | e3 | |
| Length | 32.2 mm | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.6 V | |
| Output Voltage-Min | 1.5 V | |
| Output Voltage-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 15.5 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3.6 W | |
| Trim/Adjustable Output | YES | |
| Width | 9.1 mm |
