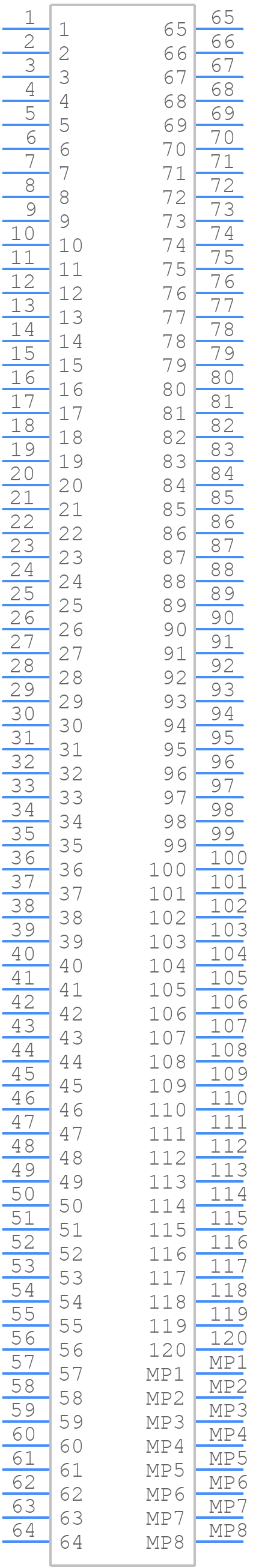

Part Symbol
-

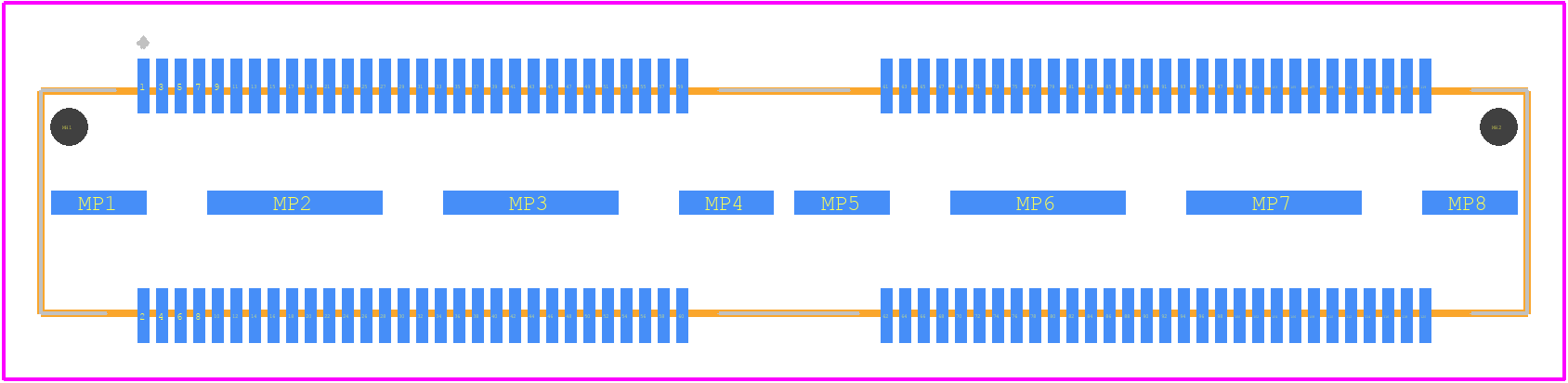

Footprint
-

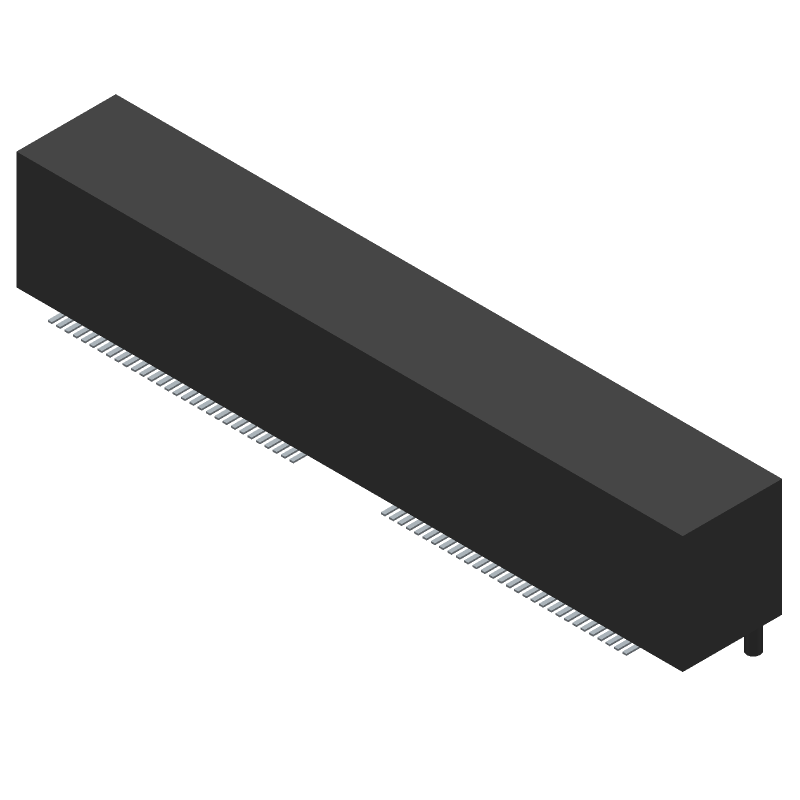

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for QTH-060-02-F-D-A-K by Samtec Inc
Results Overview of QTH-060-02-F-D-A-K by Samtec Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Internet of Things (IoT)
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Automotive
QTH-060-02-F-D-A-K Information
QTH-060-02-F-D-A-K by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000DR | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85 | |
| 74AC11008PWR | Texas Instruments | Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85 | |
| 74AC11138N | Texas Instruments | 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85 |
Price & Stock for QTH-060-02-F-D-A-K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96P5628
|
Newark | Mezzanine Conn, Hdr, 120Pos, 2Row, 0.5Mm, Mezzanine Connector Type:Header, Pitch Spacing:0.5Mm, No. Of Rows:2Rows, No. Of Contacts:120Contacts, Connector Mounting:Surface Mount Straight, Contact Material:Phosphor Bronze Rohs Compliant: Yes |Samtec QTH-060-02-F-D-A-K RoHS: Compliant Min Qty: 64 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.2200 / $6.3300 | Buy Now |
|
DISTI #
3937-QTH-060-02-F-D-A-K-ND
|
DigiKey | CONN HDR 120POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tray MARKETPLACE PRODUCT |
181 In Stock |
|
$14.3500 | Buy Now |
|
DISTI #
2266-QTH-060-02-F-D-A-K-ND
|
DigiKey | CONN HDR 120POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tray MARKETPLACE PRODUCT |
13 In Stock |
|
$10.3100 | Buy Now |
|
DISTI #
SAM9825-ND
|
DigiKey | CONN HDR 120POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tray |
12 In Stock |
|
$4.3000 / $5.2600 | Buy Now |
|
DISTI #
QTH-060-02-F-D-A-K
|
Avnet Americas | Mezzanine Connector, Header, 0.5 mm, 2 Rows, 120 Contacts, Surface Mount Straight - Trays (Alt: QTH-060-02-F-D-A-K) RoHS: Compliant Min Qty: 64 Package Multiple: 64 Lead time: 2 Weeks, 5 Days Container: Tray | 448 |
|
$4.0512 / $4.7432 | Buy Now |
|
DISTI #
200-QTH06002FDAK
|
Mouser Electronics | Board to Board & Mezzanine Connectors 0.50 mm Q Strip(R) High-Speed Ground Plane Terminal Strip RoHS: Compliant | 200 |
|
$4.3000 / $5.2600 | Buy Now |
|
|
Onlinecomponents.com | 0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip RoHS: Compliant |
193 In Stock |
|
$3.6600 / $5.8800 | Buy Now |
|
DISTI #
76881253
|
Verical | Conn Micro High Speed Terminal Strip HDR 120 POS 0.5mm Solder ST Top Entry SMD Tray RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2106 | Americas - 180 |
|
$5.5120 / $7.6440 | Buy Now |
|
DISTI #
5cd911fccd7c1c4c3869131e
|
Samtec | 0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip RoHS: Compliant Min Qty: 64 Lead time: 1 Weeks, 5 Days Container: Tray | 0 |
|
$3.6900 / $5.2600 | Buy Now |
|
DISTI #
QTH-060-02-F-D-A-K
|
IBS Electronics | CONN MICRO HIGH SPEED TERMINAL STRIP HDR 120 POS 0.5MM SOLDER ST TOP ENTRY SMD Q STRIP®, T/R Min Qty: 7 Package Multiple: 1 | 193 |
|
$4.7580 / $7.6440 | Buy Now |
Part Details for QTH-060-02-F-D-A-K
QTH-060-02-F-D-A-K CAD Models
QTH-060-02-F-D-A-K Part Data Attributes
|
|
QTH-060-02-F-D-A-K
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
QTH-060-02-F-D-A-K
Samtec Inc
Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 2 Weeks, 5 Days | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | E.L.P. | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.235 inch | |
| Body Depth | 0.286 inch | |
| Body Length | 1.575 inch | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | CENTRONIC | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.02 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 6.1722 mm | |
| Rated Current (Signal) | 2 A | |
| Terminal Pitch | 0.5 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 120 |
