QTH-030-02-F-D-A-K by: Samtec Inc

Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for QTH-030-02-F-D-A-K by Samtec Inc

Results Overview of QTH-030-02-F-D-A-K by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Internet of Things (IoT) Financial Technology (Fintech) Smart Cities Transportation and Logistics Automotive

QTH-030-02-F-D-A-K Information

QTH-030-02-F-D-A-K by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LD09P24A4GV00LF Amphenol Communications Solutions D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
DB5W5P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets.
DCV8W8P543M30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets.

Price & Stock for QTH-030-02-F-D-A-K

Part # Distributor Description Stock Price Buy
DISTI # 74AJ1230
Newark Connector Rohs Compliant: Yes |Samtec QTH-030-02-F-D-A-K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 17
  • 1 $6.6400
  • 10 $6.3700
  • 100 $5.2600
  • 500 $4.4500
  • 1,000 $3.8800
  • 2,500 $3.6900
$3.6900 / $6.6400 Buy Now
DISTI # SAM11622-ND
DigiKey CONN DIFF ARRAY PLG 60P SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tray 60
In Stock
  • 1 $4.6600
  • 130 $4.3700
  • 260 $4.0100
  • 520 $3.9200
  • 1,040 $3.6100
  • 2,535 $3.3000
$3.3000 / $4.6600 Buy Now
DISTI # QTH-030-02-F-D-A-K
Avnet Americas Mezzanine Connector, Header, 0.5 mm, 2 Rows, 60 Contacts, Surface Mount, Phosphor Bronze - Trays (Alt: QTH-030-02-F-D-A-K) RoHS: Compliant Min Qty: 65 Package Multiple: 65 Lead time: 2 Weeks, 3 Days Container: Tray 0
  • 65 $4.3610
  • 130 $3.6075
  • 260 $3.5890
  • 390 $3.5705
  • 520 $3.5520
$3.5520 / $4.3610 Buy Now
DISTI # 200-QTH03002FDAK
Mouser Electronics Board to Board & Mezzanine Connectors 0.50 mm Q Strip(R) High-Speed Ground Plane Terminal Strip RoHS: Compliant 731
  • 1 $4.6600
  • 260 $4.0100
  • 520 $3.9200
  • 1,040 $3.6100
$3.6100 / $4.6600 Buy Now
Onlinecomponents.com 0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip RoHS: Compliant 203 In Stock
  • 5 $5.4800
  • 65 $4.4500
  • 130 $4.2500
  • 260 $4.1300
  • 520 $3.7000
  • 1,040 $3.4700
  • 2,535 $3.3000
  • 5,005 $3.0400
$3.0400 / $5.4800 Buy Now
DISTI # 85946564
Verical Conn Micro High Speed Terminal Strip HDR 60 POS 0.5mm Solder ST Top Entry SMD Tray RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2443 Americas - 200
  • 10 $7.1240
  • 65 $5.7850
  • 130 $5.5250
  • 260 $5.3690
  • 520 $4.8100
$4.8100 / $7.1240 Buy Now
DISTI # 5cd9126bcd7c1c4c38699538
Samtec 0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip RoHS: Compliant Min Qty: 65 Lead time: 1 Weeks, 2 Days Container: Tray 0
  • 65 $4.6600
  • 130 $4.3700
  • 260 $4.0100
  • 520 $3.9200
  • 1,040 $3.6100
  • 2,535 $3.3000
  • 5,005 $3.0000
$3.0000 / $4.6600 Buy Now
DISTI # 000000000001342162
Sager Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip Min Qty: 65 0
  • 65 $4.6600
  • 130 $4.3700
  • 260 $4.0100
  • 520 $3.9200
  • 1,040 $3.6100
  • 2,535 $3.3000
$3.3000 / $4.6600 Buy Now
DISTI # QTH-030-02-F-D-A-K
Avnet Abacus Mezzanine Connector Header 05 mm 2 Rows 60 Contacts Surface Mount Phosphor Bronze (Alt: QTH-030-02-F-D-A-K) RoHS: Compliant Min Qty: 65 Package Multiple: 65 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip RoHS: Compliant 203 In Stock
  • 5 $5.4800
  • 65 $4.4500
  • 130 $4.2500
  • 260 $4.1300
  • 520 $3.7000
  • 1,040 $3.4700
  • 2,535 $3.3000
  • 5,005 $3.0400
$3.0400 / $5.4800 Buy Now

Part Details for QTH-030-02-F-D-A-K

QTH-030-02-F-D-A-K CAD Models

QTH-030-02-F-D-A-K Part Data Attributes

QTH-030-02-F-D-A-K Samtec Inc
Buy Now Datasheet
Compare Parts:

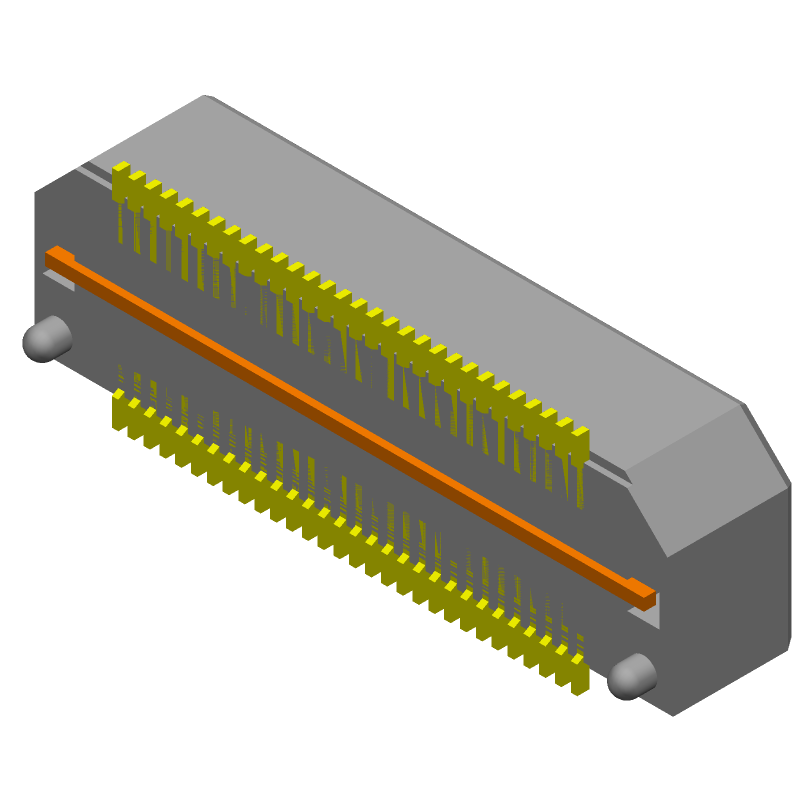

QTH-030-02-F-D-A-K Samtec Inc Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 2 Weeks, 3 Days
Samacsys Manufacturer SAMTEC
Additional Feature E.L.P., POLARIZED
Board Mounting Option PEG
Body Breadth 0.235 inch
Body Depth 0.286 inch
Body Length 0.787 inch
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating GOLD FLASH OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style CENTRONIC
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.02 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 6.1722 mm
Plating Thickness FLASH inch
Rated Current (Signal) 2 A
Terminal Pitch 0.5 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 60

Alternate Parts for QTH-030-02-F-D-A-K

This table gives cross-reference parts and alternative options found for QTH-030-02-F-D-A-K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of QTH-030-02-F-D-A-K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
QTH-030-01-H-D-A Samtec Inc $12.8493 Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, QTH-030-02-F-D-A-K vs QTH-030-01-H-D-A
BTH-030-01-L-D-LC Samtec Inc Check for Price Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, QTH-030-02-F-D-A-K vs BTH-030-01-L-D-LC

QTH-030-02-F-D-A-K Related Parts

QTH-030-02-F-D-A-K Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) as per Samtec's application notes.

  • Yes, the QTH-030-02-F-D-A-K connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.

  • The maximum operating temperature for the QTH-030-02-F-D-A-K connector is 125°C (257°F) as per Samtec's datasheet.

  • The QTH-030-02-F-D-A-K connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors for such applications.

  • The mating cycle life of the QTH-030-02-F-D-A-K connector is 500 cycles minimum as per Samtec's datasheet.
