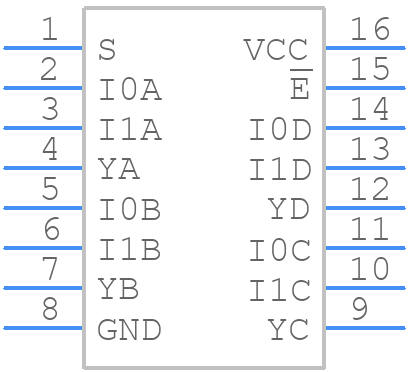

Part Symbol
-

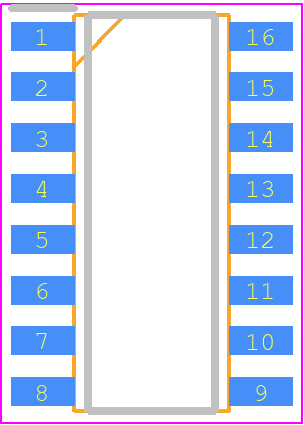

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for QS3257S1G8 by Renesas Electronics Corporation
Results Overview of QS3257S1G8 by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Communication and Networking
Automotive
QS3257S1G8 Information
QS3257S1G8 by Renesas Electronics Corporation is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for QS3257S1G8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3263043RL
|
Farnell | FET MUX/DEMUX, 2: 1, -40 TO 85DEG C RoHS: Compliant Min Qty: 500 Lead time: 19 Weeks, 1 Days Container: Reel | 1478 |
|
$0.2736 / $0.3427 | Buy Now |
|
DISTI #
3263043
|
Farnell | FET MUX/DEMUX, 2: 1, -40 TO 85DEG C RoHS: Compliant Min Qty: 1 Lead time: 19 Weeks, 1 Days Container: Cut Tape | 1478 |
|
$0.2736 / $0.6415 | Buy Now |
|
DISTI #
800-1728-1-ND
|
DigiKey | IC MUX/DEMUX 4 X 2:1 16-SOIC Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2394 In Stock |
|
$0.3434 / $0.7200 | Buy Now |
|
DISTI #
QS3257S1G8
|
Avnet Silica | Multiplexer Demultiplexer 4 Channels 21 475 V to 525 V 16 Pins SOIC (Alt: QS3257S1G8) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | IC MUX/DEMUX 4 X 2:1 16SOIC | 2500 |
|
RFQ |
Part Details for QS3257S1G8
QS3257S1G8 CAD Models
QS3257S1G8 Part Data Attributes
|
|
QS3257S1G8
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
QS3257S1G8
Renesas Electronics Corporation
High-Speed CMOS QuickSwitch Quad 2:1 Mux/Demux, SOIC0/Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Manufacturer Package Code | DCG16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Control Type | ENABLE LOW | |
| Count Direction | BIDIRECTIONAL | |
| Family | QS3V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS EXCHANGER | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 2 | |
| Number of Functions | 4 | |
| Number of Ports | 3 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 0.25 ns | |
| Propagation Delay (tpd) | 0.25 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.1 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
