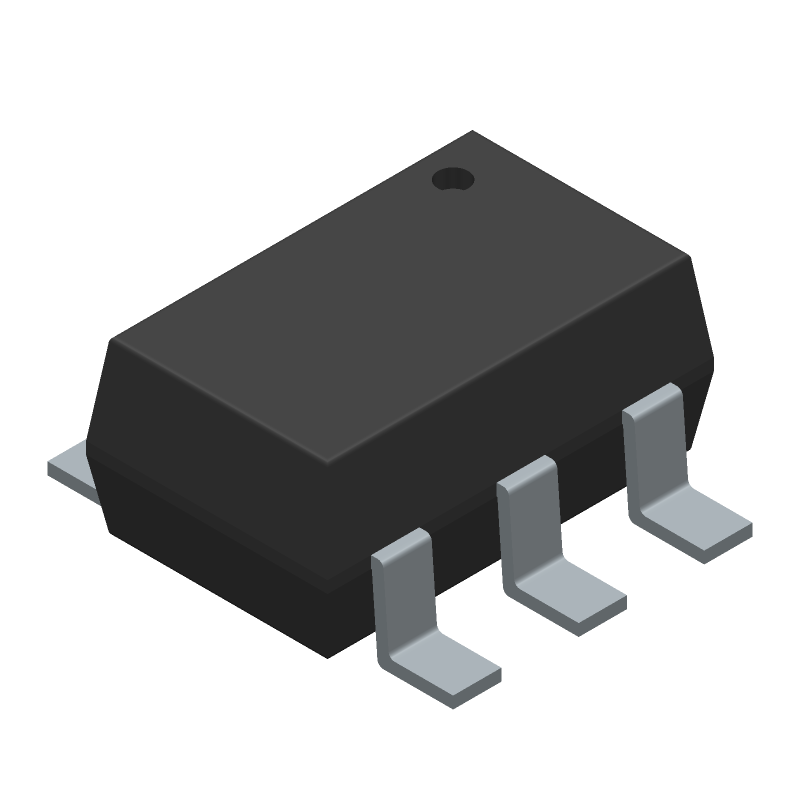

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for QPA4263ATR7 by Qorvo
Results Overview of QPA4263ATR7 by Qorvo
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
QPA4263ATR7 Information
QPA4263ATR7 by Qorvo is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for QPA4263ATR7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
QPA4263ATR7
|
Avnet Americas | Cascadable SiGe HBT Amplifier, 0 MHz to 3.5 GHz, 6 Pins, SOT-363 - Tape and Reel (Alt: QPA4263ATR7) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$1.0080 / $1.0290 | Buy Now |
|
DISTI #
772-QPA4263ATR7
|
Mouser Electronics | RF Amplifier DC-3.5GHz NF 3.7dB Gain 12.3dB RoHS: Compliant | 6081 |
|
$1.0500 / $3.6700 | Buy Now |
|
DISTI #
QPA4263ATR7
|
Avnet Asia | Cascadable SiGe HBT Amplifier, 0 MHz to 3.5 GHz, 6 Pins, SOT-363 (Alt: QPA4263ATR7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
QPA4263ATR7
|
Avnet Silica | Cascadable SiGe HBT Amplifier 0 MHz to 35 GHz 6 Pins SOT363 (Alt: QPA4263ATR7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 25 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
QPA4263ATR7
|
Avnet Silica | Silicon Carbide Schottky Diode Single 650 V 12 A 29 nC TO220 (Alt: QPA4263ATR7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for QPA4263ATR7
QPA4263ATR7 CAD Models
QPA4263ATR7 Part Data Attributes
|
|
QPA4263ATR7
Qorvo
Buy Now
Datasheet
|
Compare Parts:
QPA4263ATR7
Qorvo
Wide Band Low Power Amplifier,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | QORVO INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Date Of Intro | 2016-02-18 | |
| Samacsys Manufacturer | Qorvo | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Gain | 11.8 dB | |
| Input Power-Max (CW) | 18 dBm | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 3500 MHz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TSSOP6,.08 | |
| Power Supplies | 8 V | |
| RF/Microwave Device Type | WIDE BAND LOW POWER | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Terminal Finish | Matte Tin (Sn) | |
| VSWR-Max | 1.11 |
QPA4263ATR7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the input and output traces. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
-
The biasing of the QPA4263ATR7 should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias voltage of around 3.3V and a current bias of around 100mA is recommended. The bias points should be adjusted based on the specific application and operating conditions.
-
The maximum operating temperature of the QPA4263ATR7 is 105°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
-
The QPA4263ATR7 should be matched using a combination of series and shunt inductors, as well as capacitors, to achieve optimal performance. The matching network should be designed to provide a 50Ω input and output impedance match.
-
The QPA4263ATR7 should be stored in a dry, cool place, away from direct sunlight and moisture. The device should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
