QBH-2832-04 Information
QBH-2832-04 by Spectrum Control is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS2832DR | Texas Instruments | Non-inverting Fast Synchronous Buck MOSFET Drivers 8-SOIC -40 to 125 | |
| LM2832ZMY/NOPB | Texas Instruments | High Frequency 2.0A Load - Step-Down DC-DC Regulator 8-MSOP-PowerPAD -40 to 125 | |
| LM2832XMY/NOPB | Texas Instruments | High Frequency 2.0A Load - Step-Down DC-DC Regulator 8-MSOP-PowerPAD -40 to 125 |
Price & Stock for QBH-2832-04
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
657-QBH-2832-04
|
Mouser Electronics | RF Amplifier STANDARD LINEAR 2 WATT AMP RoHS: Compliant | 18 |
|
$461.4300 / $475.7500 | Buy Now |
|
DISTI #
QBH-2832-04
|
TTI | RF Amplifier STANDARD LINEAR 2 WATT AMP Min Qty: 1 Package Multiple: 1 Container: Bulk | Americas - 0 |
|
Buy Now | |
|
DISTI #
QBH-2832-04
|
Richardson RFPD | RF & MW POWER AMPLIFIER RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ |
Part Details for QBH-2832-04
QBH-2832-04 CAD Models
QBH-2832-04 Part Data Attributes
|
|

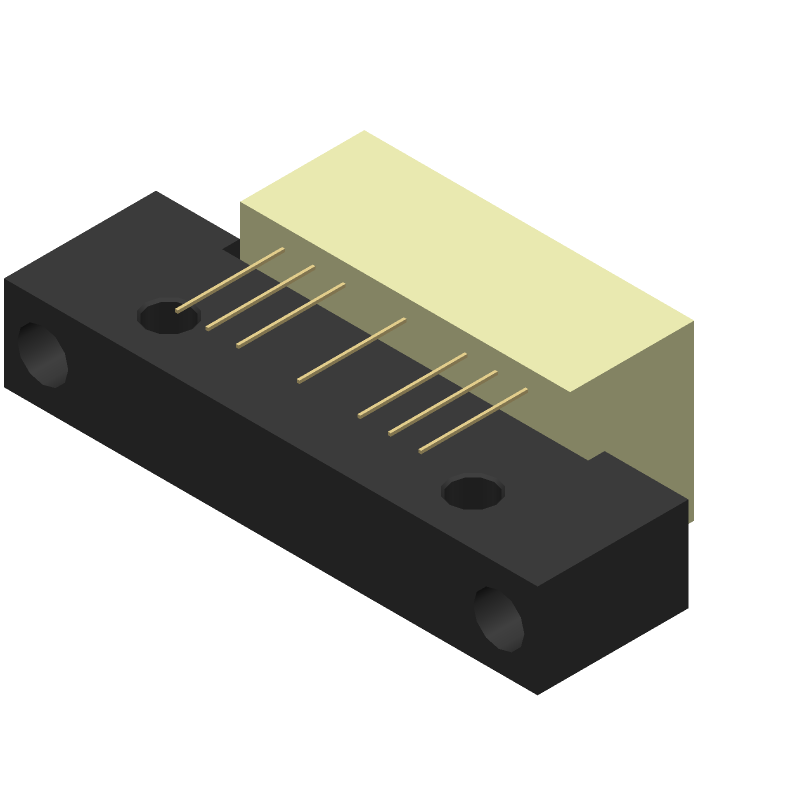

QBH-2832-04
Spectrum Control
Buy Now
Datasheet
|
Compare Parts:
QBH-2832-04
Spectrum Control
Wide Band Medium Power Amplifier,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | API TECHNOLOGIES CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | APITech | |
| Additional Feature | I/P POWER-MAX (PEAK)=20DBM | |
| Characteristic Impedance | 50 Ω | |
| Construction | MODULE | |
| Gain | 34 dB | |
| Input Power-Max (CW) | 5 dBm | |
| Mounting Feature | PANEL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 7 | |
| Operating Frequency-Max | 200 MHz | |
| Operating Frequency-Min | 1 MHz | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | -20 °C | |
| Power Supplies | 28 V | |
| RF/Microwave Device Type | WIDE BAND MEDIUM POWER | |
| Surface Mount | NO | |
| VSWR-Max | 2 |
