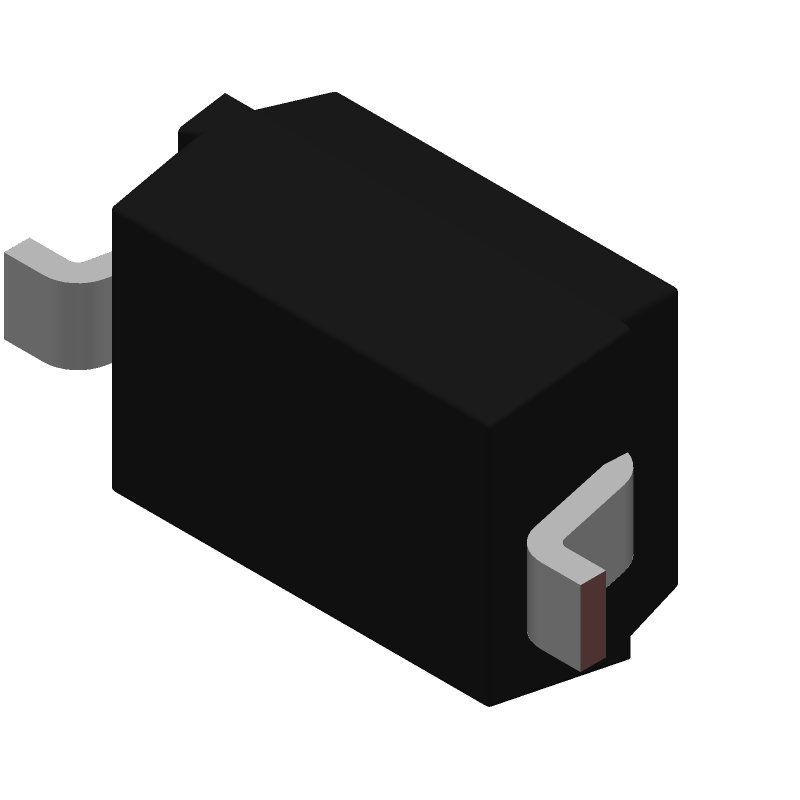

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PZU3.0B1A,115 by Nexperia
Results Overview of PZU3.0B1A,115 by Nexperia
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
PZU3.0B1A,115 Information
PZU3.0B1A,115 by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PZU3.0B1A,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PZU3.0B1A,115
|
Avnet Americas | Diode Zener Single 2.925V 2% 550mW 2-Pin SOD-323 T/R - Tape and Reel (Alt: PZU3.0B1A,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0196 / $0.0214 | Buy Now |
|
|
Rochester Electronics | Nexperia PZU3.0B1A - Zener Diode, 3V, 2%, 0.32W, Unidirectional, SC-76, 2 PIN RoHS: Compliant Status: Active Min Qty: 1 | 9000 |
|
$0.0174 / $0.0281 | Buy Now |
|
DISTI #
PZU3.0B1A,115
|
Avnet Silica | Diode Zener Single 2925V 2 550mW 2Pin SOD323 TR (Alt: PZU3.0B1A,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Silica - 0 |
|
Buy Now |
Part Details for PZU3.0B1A,115
PZU3.0B1A,115 CAD Models
PZU3.0B1A,115 Part Data Attributes
|
|
PZU3.0B1A,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PZU3.0B1A,115
Nexperia
PZUxBA series - Single Zener diodes@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | SC-76, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.32 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
