PZU3.0B,115 Information
PZU3.0B,115 by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PZU3.0B,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-PZU3.0B,115-ND
|
DigiKey | DIODE ZENER 3V 310MW SOD323F Min Qty: 8849 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT |
22114 In Stock |
|
$0.0300 | Buy Now |
|
DISTI #
1727-3723-1-ND
|
DigiKey | DIODE ZENER 3V 310MW SOD323F Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0266 / $0.2400 | Buy Now |
|
DISTI #
PZU3.0B,115
|
Avnet Americas | Diode Zener Single 3V 5% 550mW 2-Pin SOD-323F T/R - Tape and Reel (Alt: PZU3.0B,115) RoHS: Compliant Min Qty: 27000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0226 / $0.0252 | Buy Now |
|
DISTI #
771-PZU30B3115
|
Mouser Electronics | Zener Diodes Zener voltage regulator diodes in a SOD323F package RoHS: Compliant | 0 |
|
$0.0280 / $0.2400 | Order Now |
|
|
Rochester Electronics | Nexperia PZU3.0B - Zener Diode, 3V, 5%, 0.31W, Unidirectional, SOD2 RoHS: Compliant Status: Active Min Qty: 1 | 8740 |
|
$0.0202 / $0.0326 | Buy Now |
|
DISTI #
PZU3.0B,115
|
Avnet Silica | Diode Zener Single 3V 5 550mW 2Pin SOD323F TR (Alt: PZU3.0B,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for PZU3.0B,115

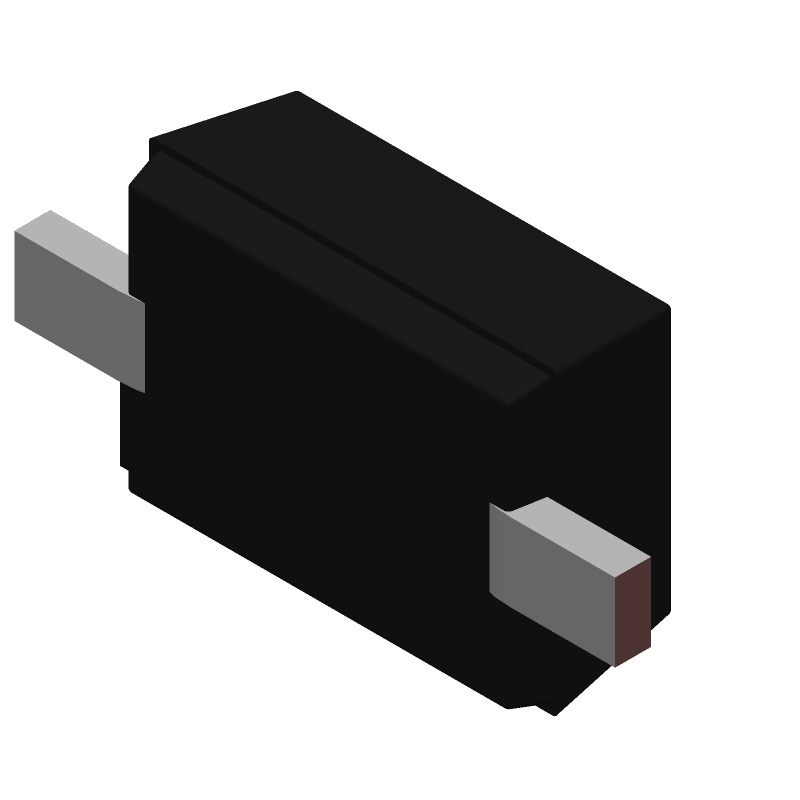

PZU3.0B,115 CAD Models
PZU3.0B,115 Part Data Attributes
|
|
PZU3.0B,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PZU3.0B,115
Nexperia
PZUxB series - Zener diodes in a SOD323F package@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | PLASTIC, SC-90, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323F | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.31 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
PZU3.0B,115 Frequently Asked Questions (FAQ)
-
The recommended footprint for PZU3.0B,115 is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a solder mask opening of 0.5 mm x 0.5 mm.
-
The thermal pad of PZU3.0B,115 should be connected to a copper plane on the PCB to ensure good thermal dissipation. A thermal via or a thermal pad with a diameter of at least 1.5 mm is recommended.
-
The maximum allowed voltage on the gate of PZU3.0B,115 is 20 V, but it's recommended to keep it below 15 V to ensure reliable operation and prevent damage to the device.
-
Yes, PZU3.0B,115 can be used in high-frequency applications up to 100 kHz, but it's essential to consider the device's parasitic capacitance and inductance, as well as the PCB layout, to minimize losses and ensure stable operation.
-
To ensure the reliability of PZU3.0B,115 in a high-temperature environment, it's essential to follow the recommended derating curves, keep the junction temperature below 150°C, and use a suitable thermal interface material to improve heat dissipation.
