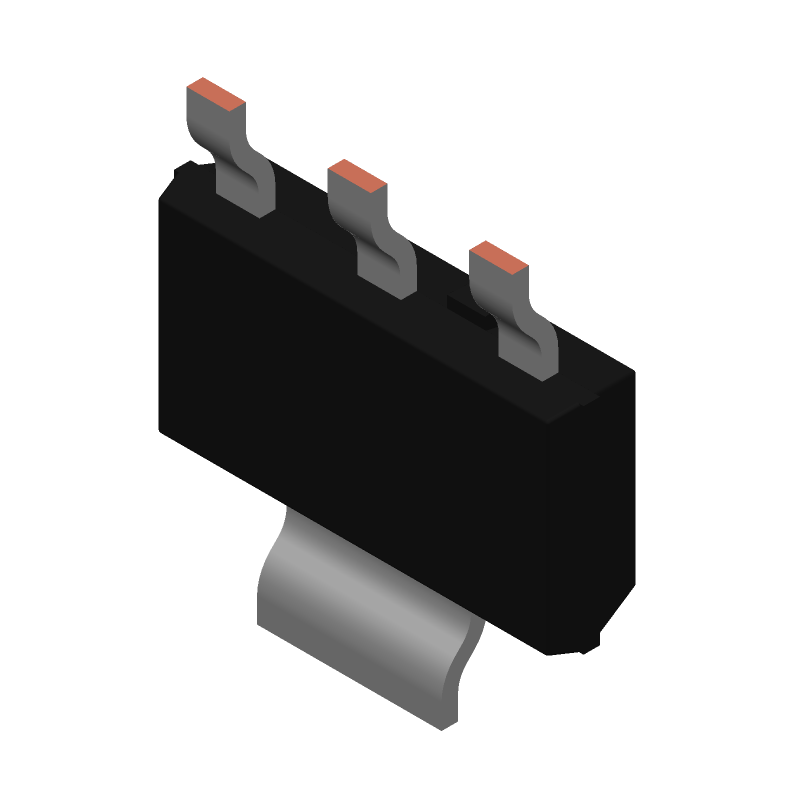

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PZT2222A/ZLF by Nexperia
Results Overview of PZT2222A/ZLF by Nexperia
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PZT2222A/ZLF Information
PZT2222A/ZLF by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PZT2222A/ZLF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Transistors | 1645 |
|
RFQ |
Part Details for PZT2222A/ZLF
PZT2222A/ZLF CAD Models
PZT2222A/ZLF Part Data Attributes
|
|
PZT2222A/ZLF
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PZT2222A/ZLF
Nexperia
PZT2222A - NPN switching transistor@en-us SC-73 4-Pin
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SC-73 | |
| Package Description | SMALL OUTLINE, R-PDSO-G4 | |
| Pin Count | 4 | |
| Manufacturer Package Code | SOT223 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 75 | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 250 ns | |
| Turn-on Time-Max (ton) | 35 ns |
Alternate Parts for PZT2222A/ZLF
This table gives cross-reference parts and alternative options found for PZT2222A/ZLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PZT2222A/ZLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PZT2222A/ZLX | Nexperia | Check for Price | PZT2222A - NPN switching transistor@en-us SC-73 4-Pin | PZT2222A/ZLF vs PZT2222A/ZLX |
