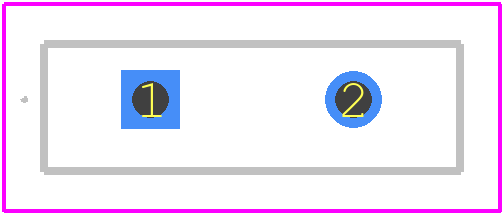

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PWR221T-30-3002F by Bourns Inc
Results Overview of PWR221T-30-3002F by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PWR221T-30-3002F Information
PWR221T-30-3002F by Bourns Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for PWR221T-30-3002F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53W9865
|
Newark | Power Resistor 1% /Tube Packaging |Bourns PWR221T-30-3002F RoHS: Not Compliant Min Qty: 300 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.6900 / $3.5500 | Buy Now |
|
DISTI #
PWR221T-30-3002F-ND
|
DigiKey | RES 30K OHM 1% 30W TO220-2 Min Qty: 1 Lead time: 12 Weeks Container: Tube |
300 In Stock |
|
$2.6621 / $6.7900 | Buy Now |
|
DISTI #
PWR221T-30-3002F
|
Avnet Americas | Resistor, 30 kOhm, ? 1%, 30 W, TO-220, Thick Film, High Power - Rail/Tube (Alt: PWR221T-30-3002F) RoHS: Compliant Min Qty: 300 Package Multiple: 50 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
$2.4576 / $2.5774 | Buy Now |
|
DISTI #
652-PWR221T-30-3002F
|
Mouser Electronics | Thick Film Resistors - Through Hole Pwr Resistor 1% 30 kOhms -55Cto150C RoHS: Compliant | 386 |
|
$2.6600 / $6.7900 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$2.6300 / $3.8400 | Buy Now |
|
DISTI #
PWR221T-30-3002F
|
Avnet Abacus | Resistor 30 kOhm 1 30 W TO220 Thick Film High Power (Alt: PWR221T-30-3002F) RoHS: Compliant Min Qty: 300 Package Multiple: 50 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$2.6300 / $3.8400 | Buy Now |
|
|
Vyrian | Resistors | 376 |
|
RFQ |
Part Details for PWR221T-30-3002F
PWR221T-30-3002F CAD Models
PWR221T-30-3002F Part Data Attributes
|
|
PWR221T-30-3002F
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
PWR221T-30-3002F
Bourns Inc
Fixed Resistor, Metal Glaze/thick Film, 2.25W, 30000ohm, 250V, 1% +/-Tol, -100,100ppm/Cel, 4112
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | TO-220 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.90 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | FREE AIR POWER : 2.25W | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.72 mm | |
| Lead Length | 12.7 mm | |
| Lead Spacing | 5.08 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 16.26 mm | |
| Package Length | 10.41 mm | |
| Package Style | Radial | |
| Package Width | 3.18 mm | |
| Packing Method | TUBE | |
| Rated Power Dissipation (P) | 30 W | |
| Rated Temperature | 25 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 30000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 1% | |
| Working Voltage | 250 V |
