Power Circuits / Power Supply Modules / PVB3-D5-S12-D
Datasheets

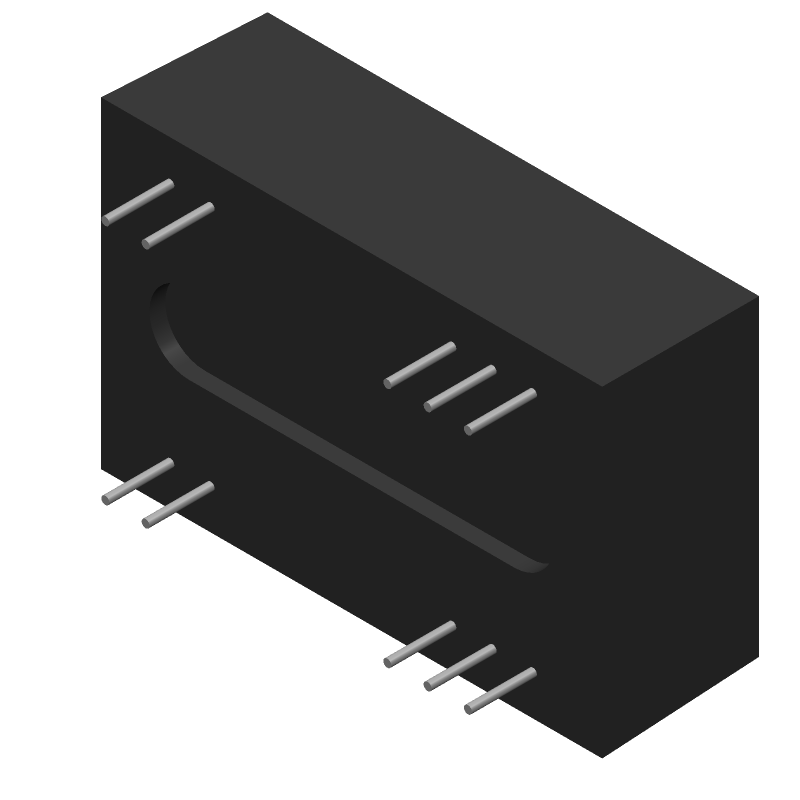

PVB3-D5-S12-D by:

12 Vdc, 0.25 A, 3 W, 4.5~9 Vdc Input Range

Part Details for PVB3-D5-S12-D by CUI Inc

Results Overview of PVB3-D5-S12-D by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PVB3-D5-S12-D Information

PVB3-D5-S12-D by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for PVB3-D5-S12-D

Part # Distributor Description Stock Price Buy
DISTI # 102-2874-ND
DigiKey DC DC CONVERTER 12V 3W Min Qty: 1 Lead time: 18 Weeks Container: Tube 35
In Stock
  • 1 $17.6600
  • 5 $16.6500
  • 15 $15.9900
  • 30 $15.5880
$15.5880 / $17.6600 Buy Now
Neutron USA Isolated DC/DC Converters dc-dc isolated, 3 W, 4.5 9 Vdc input, 12 Vdc, 250 mA, single regulated output, DIP 0
  • 1 $58.9900
$58.9900 Buy Now

Part Details for PVB3-D5-S12-D

PVB3-D5-S12-D Part Data Attributes

Parametric Data
PVB3-D5-S12-D CUI Inc
Buy Now Datasheet
Compare Parts:
PVB3-D5-S12-D CUI Inc 12 Vdc, 0.25 A, 3 W, 4.5~9 Vdc Input Range
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer CUI INC
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer CUI Inc.
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max 9 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 5 V
JESD-30 Code R-PDMA-T10
Length 31.6 mm
Load Regulation-Max 0.5%
Number of Functions 1
Number of Outputs 1
Number of Terminals 10
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Voltage-Max 12.36 V
Output Voltage-Min 11.64 V
Output Voltage-Nom 12 V
Package Body Material PLASTIC/EPOXY
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Seated Height-Max 10.7 mm
Surface Mount NO
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 3 W
Trim/Adjustable Output NO
Width 20.3 mm

Alternate Parts for PVB3-D5-S12-D

This table gives cross-reference parts and alternative options found for PVB3-D5-S12-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PVB3-D5-S12-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NDY0512C Murata Power Solutions $14.3698 DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, PACKAGE-24 PVB3-D5-S12-D vs NDY0512C
PYBJ3-D5-S12-OM CUI Inc Check for Price Power Supply Module PVB3-D5-S12-D vs PYBJ3-D5-S12-OM
PYBJ3-D5-S12-OD CUI Inc Check for Price Power Supply Module PVB3-D5-S12-D vs PYBJ3-D5-S12-OD
PYBJ3-D5-S12-M CUI Inc Check for Price Power Supply Module PVB3-D5-S12-D vs PYBJ3-D5-S12-M
NDY0512 C&D Technologies Inc Check for Price DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, PVB3-D5-S12-D vs NDY0512
