PVB3-D12-S12-D Information
PVB3-D12-S12-D by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PVB3-D12-S12-D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2266-PVB3-D12-S12-D-ND
|
DigiKey | DC DC CONVERTER 12V 3W Min Qty: 3 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
60 In Stock |
|
$28.6800 / $30.9700 | Buy Now |
|
DISTI #
102-2868-ND
|
DigiKey | DC DC CONVERTER 12V 3W Min Qty: 3 Lead time: 18 Weeks Container: Tube | Limited Supply - Call |
|
$16.4687 | Buy Now |
|
|
Onlinecomponents.com | 3 W, 2:1 Input Range, Single/Dual Regulated Output, 24 Pin DIP, 3000 Vdc Isolation Dc-Dc Converter - 12 Vdc, 0.25 A, 3 W, 9~18 Vdc Input Range RoHS: Compliant |
60 Partner Stock |
|
$0 | Buy Now |
Part Details for PVB3-D12-S12-D

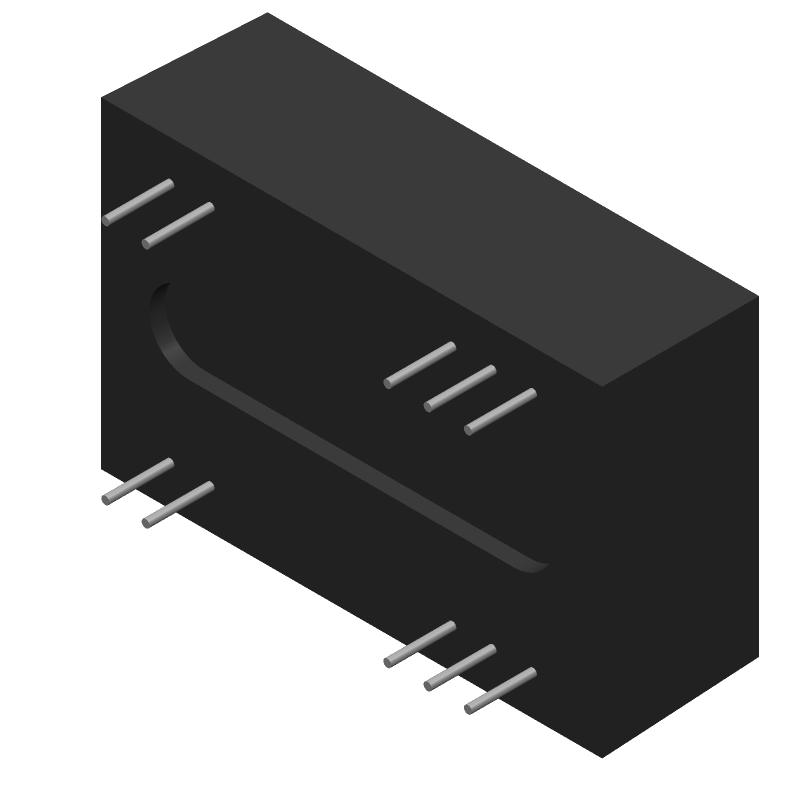

PVB3-D12-S12-D CAD Models
PVB3-D12-S12-D Part Data Attributes
|
|
PVB3-D12-S12-D
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PVB3-D12-S12-D
CUI Inc
12 Vdc, 0.25 A, 3 W, 9~18 Vdc Input Range
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | CUI INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDMA-T10 | |
| Length | 31.6 mm | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 12.36 V | |
| Output Voltage-Min | 11.64 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 10.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | NO | |
| Width | 20.3 mm |
PVB3-D12-S12-D Frequently Asked Questions (FAQ)
-
The operating temperature range for the PVB3-D12-S12-D is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside the recommended temperature range.
-
While the PVB3-D12-S12-D is designed to be rugged, it's still important to consider the vibration specifications. The device can withstand vibrations up to 10G peak acceleration, 10-2000 Hz frequency range. However, it's recommended to consult with CUI Inc or a qualified engineer to ensure the device meets the specific vibration requirements of your application.
-
For optimal performance and thermal management, it's recommended to follow the PCB layout guidelines provided in the datasheet. Additionally, ensure good thermal conductivity by using a thermal pad or heat sink, and maintain a minimum clearance of 1.5 mm around the device to allow for airflow.
-
The PVB3-D12-S12-D has a conformal coating to protect it from moisture, but it's still important to follow the recommended storage and operating conditions. Avoid exposing the device to extreme humidity (>90% RH) or immersion in water. If your application requires operation in a humid or wet environment, consider additional protection measures, such as potting or conformal coating.
-
Follow the recommended soldering process outlined in the datasheet, which includes a peak temperature of 260°C, a soldering time of 3-5 seconds, and a maximum of 3 reflows. Ensure the soldering iron is set to the correct temperature, and use a solder with a melting point above 217°C.
