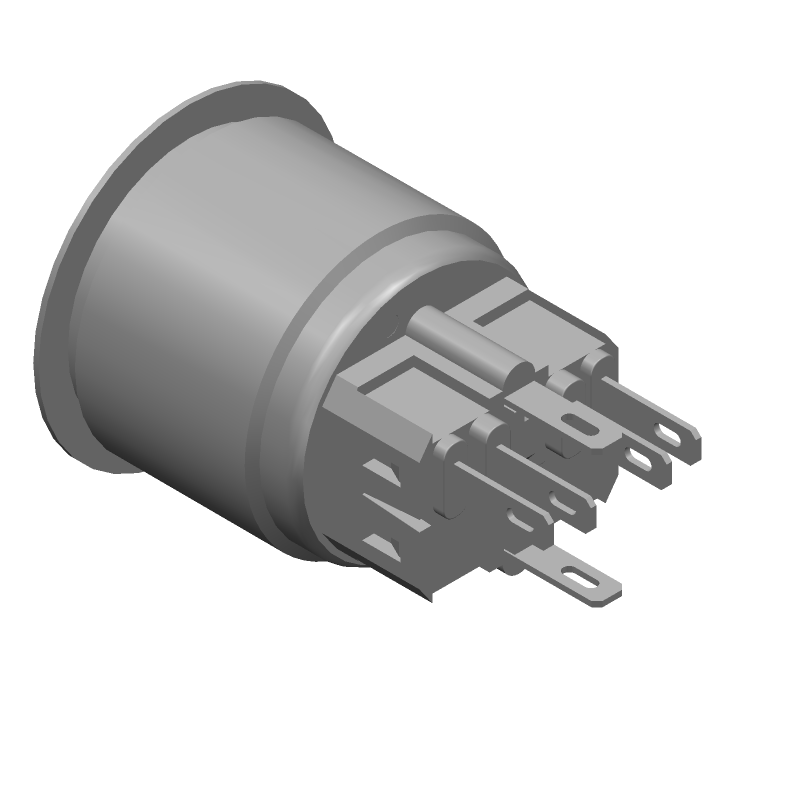

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PV8F2T0SS-344 by E-Switch Inc
Results Overview of PV8F2T0SS-344 by E-Switch Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
PV8F2T0SS-344 Information
PV8F2T0SS-344 by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for PV8F2T0SS-344
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64R5827
|
Newark | Ea Rohs Compliant: Yes |E-Switch PV8F2T0SS-344 RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$32.6400 / $34.9700 | Buy Now |
|
DISTI #
EG5272-ND
|
DigiKey | SWITCH PUSHBUTTON DPST 2A 36V Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
4 In Stock |
|
$21.7272 / $31.0700 | Buy Now |
|
DISTI #
612-PV8F2T0SS-344
|
Mouser Electronics | Pushbutton Switches Illuminated, Sealed Anti-vandal switch | 0 |
|
$21.7200 / $29.7700 | Order Now |
|
DISTI #
74830284
|
RS | Anti-Vandal Switch, DPST-NO/NC, OFF-ON, ON-OFF, 2A, 48V DC, Solder, IP65 Min Qty: 20 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$45.9000 | RFQ |
|
DISTI #
ESWPV8F2T0SS-344
|
Heilind Electronics | 52-PV8F2T0SS344 SEALED ANTI-VANDAL SWITCH | Americas - 3 in Stock |
|
$30.7234 / $30.7235 | Buy Now |
|
DISTI #
69080577
|
Verical | Switch Push Button OFF ON/ON OFF DPST Flat Button 2A 48VDC Maintained Contact Panel Mount Solder Medical Min Qty: 2 Package Multiple: 1 Date Code: 1733 | Americas - 17 |
|
$32.6300 / $40.4300 | Buy Now |
|
DISTI #
PV8F2T0SS-344
|
TME | Switch: vandal resistant, Pos: 2, SPST NC + NO, 2A/48VDC, IP65 Min Qty: 20 | 0 |
|
$25.8300 | RFQ |
|
DISTI #
ESWPV8F2T0SS-344
|
Interstate Connecting Components | 52-PV8F2T0SS344 SEALED ANTI-VANDAL SWITCH | 1 |
|
$30.7234 / $30.7235 | Buy Now |
|
|
Master Electronics | Pushbutton Switch - DPST-NO/NC - Anti-Vandal - 2A - 48VDC - 1 Pole On-Off/1 Pole Off-On - Stainless Steel Flush Round Button Actuator - Ring Illuminated With Blue 12VDC LED - 0.110" (2.8mm) Solder Quick Connect - Front Panel Mount. RoHS: Compliant |
17 In Stock |
|
$22.2400 / $31.1000 | Buy Now |
Part Details for PV8F2T0SS-344
PV8F2T0SS-344 CAD Models
PV8F2T0SS-344 Part Data Attributes
|
|
PV8F2T0SS-344
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
PV8F2T0SS-344
E-Switch Inc
Pushbutton Switch, SPDT, Maintained, 2A, 48VDC, Solder Lug Terminal, Panel Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.33 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Finish | STAINLESS STEEL | |
| Actuator Length | 0.079 inch | |
| Actuator Type | PUSHBUTTON | |
| Body Height | 8.5852 mm | |
| Bushing Diameter | 0.984 inch | |
| Bushing Type | M25X1 | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 2 A | |
| Contact (DC) Max Rating R Load | 2A@48VDC | |
| Contact Resistance | 0.05 mΩ | |
| Contact Voltage(DC)-Max | 48 V | |
| Dielectric Withstand Volts | 2000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | SILVER | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYAMIDE | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
PV8F2T0SS-344 Frequently Asked Questions (FAQ)
-
The operating temperature range of the PV8F2T0SS-344 is -40°C to 85°C.
-
Yes, the PV8F2T0SS-344 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The typical actuation force of the PV8F2T0SS-344 is around 2.2 N (newtons) ± 0.5 N.
-
Yes, the PV8F2T0SS-344 is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and other applications where vibration is a concern.
-
The recommended cleaning method for the PV8F2T0SS-344 is to use a soft, dry brush or a lint-free cloth to remove any debris or contaminants. Avoid using harsh chemicals or solvents, as they may damage the switch.
