Switches / Pushbutton Switches / PV7F2Y0SS-341
Datasheets
PV7F2Y0SS-341 by:

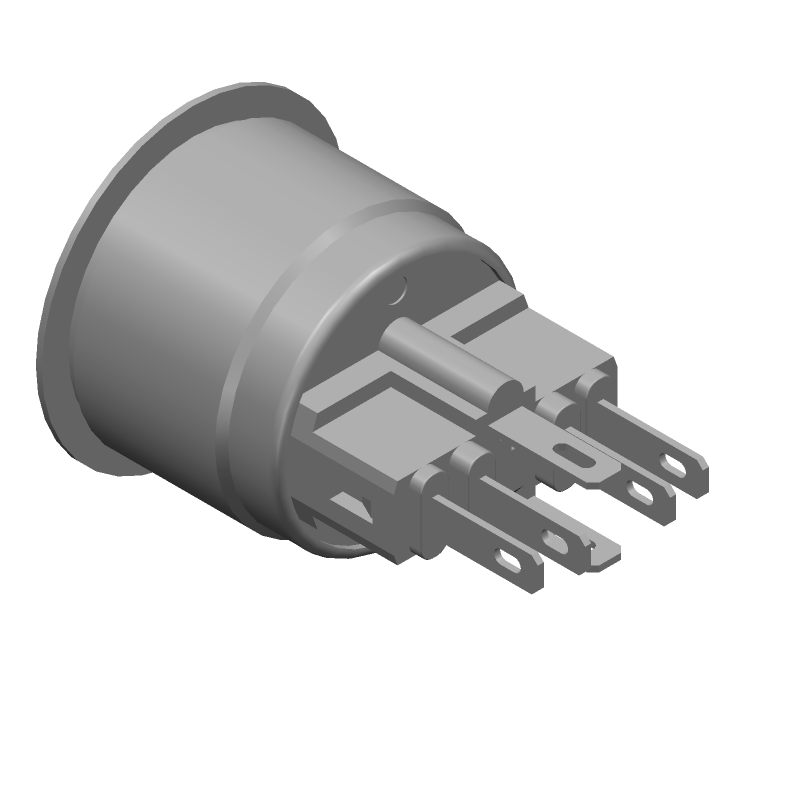

Pushbutton Switch, DPST, Momentary, 2A, 48VDC, Solder Lug Terminal, Panel Mount

Part Details for PV7F2Y0SS-341 by E-Switch Inc

Results Overview of PV7F2Y0SS-341 by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Consumer Electronics Education and Research Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

PV7F2Y0SS-341 Information

PV7F2Y0SS-341 by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for PV7F2Y0SS-341

Part # Distributor Description Stock Price Buy
DISTI # 27T5546
Newark Antivandal Sw, Spdt-Db, 2A, 48Vdc, Panel, Product Range:Pv7 Series, Panel Cutout Diameter:22Mm, Contact Configuration:Spdt-Db, Switch Operation:Off-(On), On-(Off), Pushbutton Actuator Style:Round Flush Flat, Contact Current Ac Max:- Rohs Compliant: Yes |E-Switch PV7F2Y0SS-341 RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 10 $20.9300
  • 25 $19.8500
  • 50 $19.6100
  • 100 $19.3800
  • 250 $19.0200
$19.0200 / $20.9300 Buy Now
DISTI # 141-PV7F2Y0SS-341-ND
DigiKey SWITCH PUSHBUTTON SPDT 2A 48V Min Qty: 1 Lead time: 13 Weeks Container: Bulk 387
In Stock
  • 1 $24.5000
  • 20 $20.2175
  • 40 $19.3352
  • 60 $18.8365
  • 100 $18.2256
  • 260 $17.1334
  • 500 $16.4223
$16.4223 / $24.5000 Buy Now
DISTI # 612-PV7F2Y0SS-341
Mouser Electronics Pushbutton Switches 2A 48VDC BLU LED 22mm OFF(ON) SPDT RoHS: Compliant 80
  • 1 $23.8400
  • 10 $23.3900
  • 20 $19.1100
  • 60 $18.6200
  • 100 $18.0000
  • 260 $16.9400
$16.9400 / $23.8400 Buy Now
DISTI # 72095853
RS Pushbutton Switch, IP65, DPST, OFF-(ON)/ON-(OFF), 2A,48VDC, Solder, PV7 Series Min Qty: 1 Package Multiple: 1 Container: Bulk 15
  • 1 $22.9200
  • 5 $21.0800
  • 10 $19.4800
  • 50 $17.6500
$17.6500 / $22.9200 Buy Now
DISTI # 75634974
RS Pushbutton Switch, IP65, DPST, OFF-(ON)/ON-(OFF), 2A,48VDC, Solder, PV7 Series Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Bulk 0
  • 1 $22.9200
  • 5 $21.0800
  • 10 $19.4800
  • 50 $17.6500
$17.6500 / $22.9200 RFQ
DISTI # 69080656
Verical Switch Push Button OFF (ON)/ON (OFF) SPST/SPST Flush Round Button 2A 48VDC Momentary Contact Panel Mount Solder Lug Min Qty: 2 Package Multiple: 1 Date Code: 2213 Americas - 275
  • 2 $30.6824
  • 20 $22.0471
  • 40 $21.9294
  • 60 $21.3647
  • 100 $20.6118
$20.6118 / $30.6824 Buy Now
DISTI # 87335283
Verical Switch Push Button OFF (ON)/ON (OFF) SPST/SPST Flush Round Button 2A 48VDC Momentary Contact Panel Mount Solder Lug Min Qty: 3 Package Multiple: 1 Americas - 19
  • 3 $24.3176
$24.3176 Buy Now
Bristol Electronics   20
RFQ
Quest Components   16
  • 1 $22.7700
  • 12 $21.6315
$21.6315 / $22.7700 Buy Now
DISTI # PV7F2Y0SS-341
TME Switch: vandal resistant, Pos: 2, SPST NC + NO, 2A/48VDC, IP65 Min Qty: 1 19
  • 1 $23.6600
  • 5 $21.7000
  • 10 $19.7400
$19.7400 / $23.6600 Buy Now
DISTI # PV7F2Y0SS-341
IBS Electronics PV7F2Y0SS-341 by E-SWITCH is a DPST anti-vandal pushbutton switch with off-mom/on-mom function, blue illumination, rated at 2A, 48VDC, ideal for robust applications. Min Qty: 1 Package Multiple: 1 275
  • 1 $33.9040
  • 20 $24.3620
  • 40 $24.2320
  • 60 $23.6080
  • 100 $22.7760
  • 260 $21.7230
  • 500 $20.4620
$20.4620 / $33.9040 Buy Now
Cytech Systems Limited SWITCH PUSHBUTTON SPDT 2A 48V 8
RFQ
Master Electronics Pushbutton Switch - DPST-NO/NC - Anti-Vandal - 2A - 48VDC - 1 Pole Off-(On)/1 Pole On-(Off) - Stainless Steel Flush Round Button Actuator - Ring Illuminated With Blue 2.8VDC LED - 0.110" (2.8mm) Solder Quick Connect - Front Panel Mount. RoHS: Compliant 275 In Stock
  • 1 $26.0800
  • 20 $18.7400
  • 40 $18.6400
  • 60 $18.1600
  • 100 $17.5200
  • 260 $16.7100
  • 500 $15.7400
$15.7400 / $26.0800 Buy Now

Part Details for PV7F2Y0SS-341

PV7F2Y0SS-341 Part Data Attributes

Parametric Data
PV7F2Y0SS-341 E-Switch Inc
Buy Now Datasheet
Compare Parts:
PV7F2Y0SS-341 E-Switch Inc Pushbutton Switch, DPST, Momentary, 2A, 48VDC, Solder Lug Terminal, Panel Mount
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.31
Samacsys Manufacturer E-Switch
Actuator Length 0.079 inch
Actuator Material STAINLESS STEEL
Actuator Type PUSHBUTTON
Additional Feature ROHS COMPLIANT
Body Length or Diameter 24.7904 mm
Center Contact Plating SILVER
Contact Current(DC)-Max 2 A
Contact (DC) Max Rating R Load 2A@48VDC
Contact Resistance 0.05 mΩ
Contact Voltage(DC)-Max 48 V
Dielectric Withstand Volts 2000VAC V
Electrical Life 50000 Cycle(s)
End Contact Plating SILVER
Housing Material STAINLESS STEEL
Illumination NON-ILLUMINATED
Insulation Resistance 1000000000 Ω
Insulator Material POLYBUTYLENE TEREPHTHALATE
Mounting Feature PANEL MOUNT
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Surface Mount NO
Switch Action MOMENTARY
Switch Function DPST
Switch Type PUSHBUTTON SWITCH
Termination Type SOLDER
