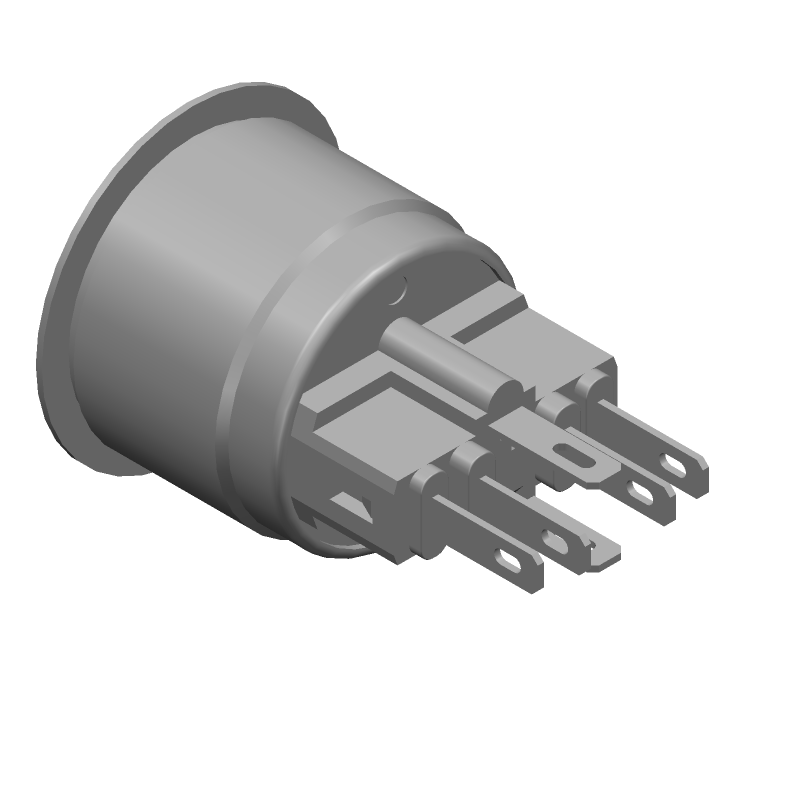

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PV7F2Y0SS-303 by E-Switch Inc
Results Overview of PV7F2Y0SS-303 by E-Switch Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
Transportation and Logistics
Automotive
PV7F2Y0SS-303 Information
PV7F2Y0SS-303 by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for PV7F2Y0SS-303
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AK4729
|
Newark | Pv7F2Y0Ss-303 Rohs Compliant: Yes |E-Switch PV7F2Y0SS-303 RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$22.9200 / $24.5700 | Buy Now |
|
DISTI #
141-PV7F2Y0SS-303-ND
|
DigiKey | SWITCH PB DPST-NO/NC 2A 48V Min Qty: 20 Lead time: 14 Weeks Container: Bulk | Temporarily Out of Stock |
|
$18.5095 | Buy Now |
|
DISTI #
612-PV7F2Y0SS303
|
Mouser Electronics | Pushbutton Switches Anti-vandal, DPST-NO/NC, Off-(On), On-(Off), Panel Mount, Front, Silver, LED, White, IP65 | 0 |
|
$17.5300 / $22.4200 | Order Now |
|
DISTI #
74830207
|
RS | Anti-Vandal Switch, DPST-NO/NC, OFF-(ON), ON-(OFF), 2A, 48V DC, Solder, IP65 Min Qty: 20 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$32.2500 | RFQ |
Part Details for PV7F2Y0SS-303
PV7F2Y0SS-303 CAD Models
PV7F2Y0SS-303 Part Data Attributes
|
|
PV7F2Y0SS-303
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
PV7F2Y0SS-303
E-Switch Inc
Pushbutton Switch, DPST, Momentary, 2A, 48VDC, Solder Lug Terminal, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.079 inch | |
| Actuator Material | STAINLESS STEEL | |
| Actuator Type | PUSHBUTTON | |
| Additional Feature | ROHS COMPLIANT | |
| Body Length or Diameter | 24.7904 mm | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 2 A | |
| Contact (DC) Max Rating R Load | 2A@48VDC | |
| Contact Resistance | 0.05 mΩ | |
| Contact Voltage(DC)-Max | 48 V | |
| Dielectric Withstand Volts | 2000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | SILVER | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | DPST | |
| Switch Type | PUSHBUTTON SWITCH | |
| Termination Type | SOLDER |
