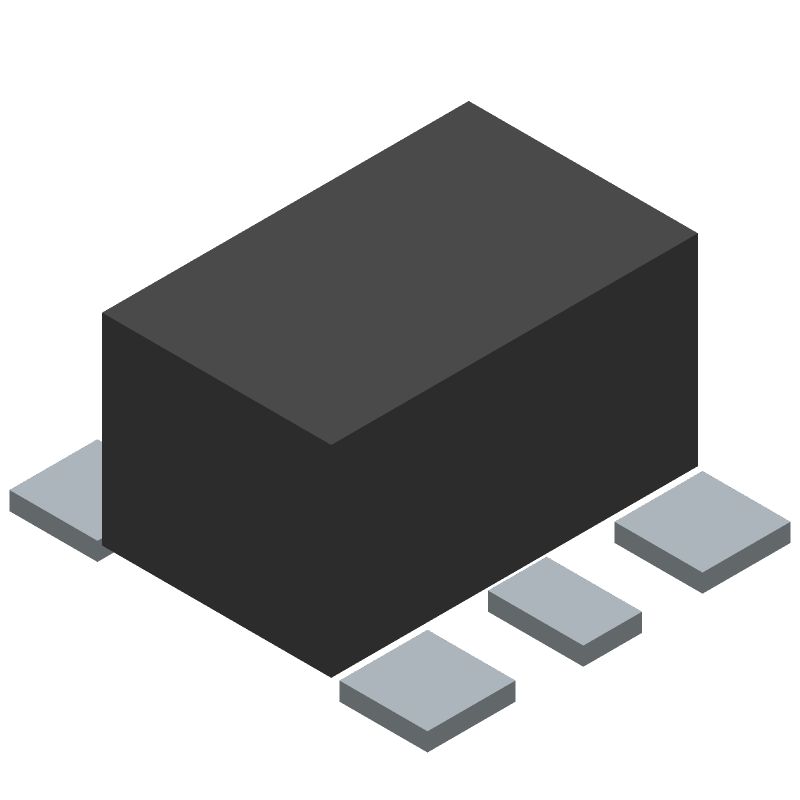

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PUMH11 by NXP Semiconductors
Results Overview of PUMH11 by NXP Semiconductors
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PUMH11 Information
PUMH11 by NXP Semiconductors is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PUMH11
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip 1 Exchange | INSTOCK | 15400 |
|
RFQ |
Part Details for PUMH11
PUMH11 CAD Models
PUMH11 Part Data Attributes
|
|
PUMH11
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
PUMH11
NXP Semiconductors
TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-88, 6 PIN, BIP General Purpose Small Signal
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SC-88 | |
| Package Description | PLASTIC, SC-88, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | NXP | |
| Additional Feature | BUILT IN BIAS RESISTOR RATIO IS 1 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 230 MHz |
Alternate Parts for PUMH11
This table gives cross-reference parts and alternative options found for PUMH11. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PUMH11, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PUMH10,115 | Nexperia | $0.0582 | PUMH10 - 50 V, 100 mA NPN/NPN resistor-equipped double transistor;ntttR1 = 2.2 kΩ, R2 = 47 kΩ@en-us TSSOP 6-Pin | PUMH11 vs PUMH10,115 |
| PUMH15 | Nexperia | Check for Price | Small Signal Bipolar Transistor | PUMH11 vs PUMH15 |
| PUMH19 | Nexperia | Check for Price | Small Signal Bipolar Transistor | PUMH11 vs PUMH19 |
| PUMH1 | Philips Semiconductors | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN | PUMH11 vs PUMH1 |
| PUMH10 | NXP Semiconductors | Check for Price | TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-88, 6 PIN, BIP General Purpose Small Signal | PUMH11 vs PUMH10 |
| PUMH16/T2 | NXP Semiconductors | Check for Price | TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SMD, SC-88, 6 PIN, BIP General Purpose Small Signal | PUMH11 vs PUMH16/T2 |
PUMH11 Frequently Asked Questions (FAQ)
-
NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The input capacitor selection depends on the input voltage, current, and frequency. NXP recommends using a low-ESR capacitor with a value between 1-10 μF, and a voltage rating that exceeds the maximum input voltage. The capacitor should be placed as close as possible to the PUMH11's input pins.
-
The PUMH11 has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
-
Common issues with output voltage regulation can be caused by incorrect input voltage, inadequate decoupling, or incorrect component selection. Troubleshooting steps include verifying the input voltage, checking the output voltage with an oscilloscope, and ensuring proper decoupling and component selection according to the datasheet and application notes.
-
Yes, the PUMH11 is suitable for high-reliability and automotive applications due to its AEC-Q100 qualification and compliance with various automotive standards. However, it's essential to follow NXP's guidelines for automotive applications and ensure that the device is used within its specified operating conditions.
