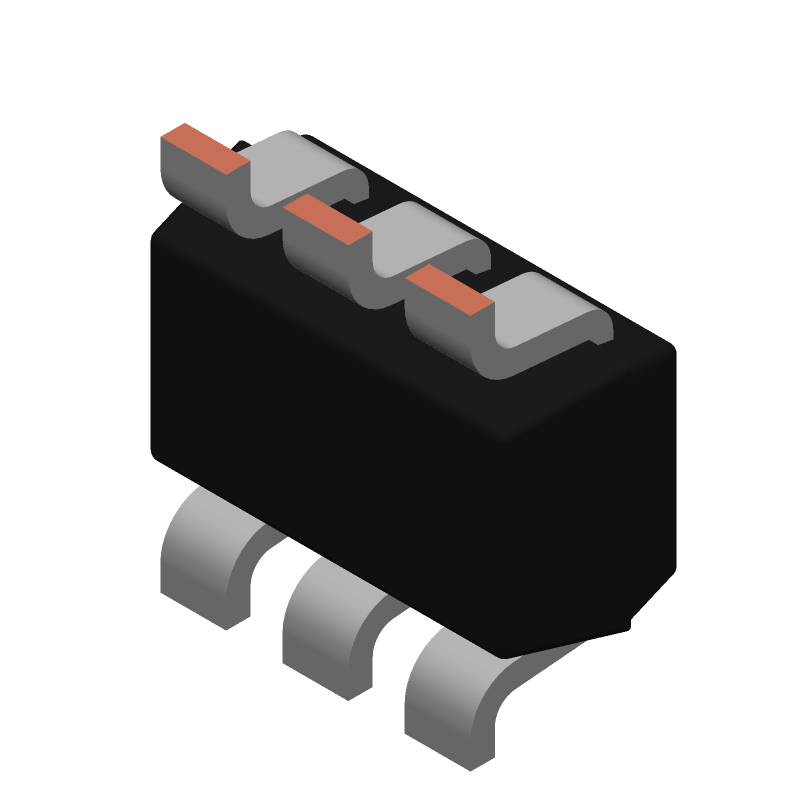

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PUMH11,115 by Nexperia
Results Overview of PUMH11,115 by Nexperia
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PUMH11,115 Information
PUMH11,115 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PUMH11,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93X4639
|
Newark | Trans, Rf Bipolar, 50V, 0.1A, Sot-363, Transistor Polarity:Dual Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current:100Ma, Base Input Resistor R1:10Kohm, No. Of Pins:6 Pin Rohs Compliant: Yes |Nexperia PUMH11,115 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 150000 |
|
$0.0370 / $0.0460 | Buy Now |
|
DISTI #
92K8297
|
Newark | Trans, Rf Bipolar, 50V, 0.1A, Sot-363, Transistor Polarity:Dual Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current:100Ma, Base Input Resistor R1:10Kohm, No. Of Pins:6 Pin Rohs Compliant: Yes |Nexperia PUMH11,115 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 263 |
|
$0.0570 / $0.2200 | Buy Now |
|
DISTI #
35AH5400
|
Newark | Pumh11/Sot363/Sc-88 Rohs Compliant: Yes |Nexperia PUMH11,115 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0280 / $0.0300 | Buy Now |
|
DISTI #
1727-4332-1-ND
|
DigiKey | TRANS PREBIAS 2NPN 50V 6-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
17890 In Stock |
|
$0.0266 / $0.2400 | Buy Now |
|
DISTI #
PUMH11,115
|
Avnet Americas | Trans Digital BJT NPN 50V 100mA 6-Pin TSSOP T/R - Tape and Reel (Alt: PUMH11,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 21000 |
|
$0.0169 / $0.0185 | Buy Now |
|
DISTI #
771-PUMH11115
|
Mouser Electronics | Digital Transistors 50 V, 100 mA NPN/NPN resistor-equipped double transistor, R1 = 10 kohm, R2 = 10 kohm RoHS: Compliant | 139713 |
|
$0.0260 / $0.2400 | Buy Now |
|
DISTI #
E02:0323_00017578
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2432 | Europe - 165000 |
|
$0.0196 / $0.0357 | Buy Now |
|
DISTI #
V72:2272_06543260
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 2513 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2219 Container: Cut Strips | Americas - 22031 |
|
$0.0318 / $0.0398 | Buy Now |
|
DISTI #
V36:1790_06543260
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2447 | Americas - 3000 |
|
$0.0173 / $0.0315 | Buy Now |
|
DISTI #
E21:3489_00017578
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 300mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 696 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2251 | Europe - 696 |
|
$0.0212 | Buy Now |
Part Details for PUMH11,115
PUMH11,115 CAD Models
PUMH11,115 Part Data Attributes
|
|
PUMH11,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PUMH11,115
Nexperia
PUMH11 - 50 V, 100 mA NPN/NPN resistor-equipped double transistor;ntttR1 = 10 kΩ, R2 = 10 kΩ@en-us TSSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | SC-88, SOT-363, TSSOP-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT363 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 1997-09-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | BUILT IN BIAS RESISTOR RATIO IS 1 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 2.5 pF | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 230 MHz | |
| VCEsat-Max | 0.15 V |
PUMH11,115 Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the PUMH11,115 near a thermal pad or a heat sink, ensuring good thermal conductivity. A 2-3 layer PCB with a solid ground plane and minimal thermal vias is recommended.
-
To ensure reliable operation in high-temperature environments, ensure the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal pad to dissipate heat, and consider using a thermal interface material to improve heat transfer.
-
The recommended soldering conditions for PUMH11,115 are: peak temperature 260°C, soldering time 10-30 seconds, and a soldering iron temperature of 350°C. Use a solder with a melting point above 217°C.
-
Handle the device by the body, avoiding touching the leads or pins. Store the device in its original packaging or a similar protective container, away from direct sunlight, moisture, and extreme temperatures.
-
The PUMH11,115 has an ESD rating of HBM 2 kV and MM 200 V. Handle the device with ESD-protective equipment, such as wrist straps, mats, and bags, to prevent damage from electrostatic discharge.
