Part Details for PUMH10-QAX by Nexperia
Results Overview of PUMH10-QAX by Nexperia
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PUMH10-QAX Information
PUMH10-QAX by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PUMH10-QAX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AK3567
|
Newark | Bipolar Discretes Rohs Compliant: Yes |Nexperia PUMH10-QAX RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1205 |
|
$0.0400 | Buy Now |
|
DISTI #
1727-PUMH10-QAXTR-ND
|
DigiKey | TRANS PREBIAS 2NPN 50V 6-TSSOP Min Qty: 9000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0350 | Buy Now |
|
DISTI #
PUMH10-QAX
|
Avnet Americas | Transistor Digital BJT NPN/NPN 50V 100mA 3-Pin SOT-363 T/R - Tape and Reel (Alt: PUMH10-QAX) RoHS: Compliant Min Qty: 33000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0212 / $0.0217 | Buy Now |
|
DISTI #
771-PUMH10-QAX
|
Mouser Electronics | Digital Transistors NPN/NPN resistor-equipped double transistor, R1 = 2.2 kohm, R2 = 47 kohm RoHS: Compliant | 2115 |
|
$0.0280 / $0.2400 | Buy Now |
|
DISTI #
PUMH10-QAX
|
TTI | Digital Transistors NPN/NPN resistor-equipped double transistor, R1 = 2.2 kohm, R2 = 47 kohm RoHS: Compliant pbFree: Pb-Free Min Qty: 27000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0277 | Buy Now |
|
DISTI #
PUMH10-QAX
|
IBS Electronics | PUMH10-QAX by NEXPERIA is a dual NPN/PNP transistor array with low saturation voltage, high current gain, and operates at a maximum collector current of 100mA, suitable for switching applications. Min Qty: 33000 Package Multiple: 1 | 0 |
|
$0.0273 / $0.0295 | Buy Now |
|
DISTI #
PUMH10-QAX
|
EBV Elektronik | Transistor Digital BJT NPNNPN 50V 100mA 3Pin SOT363 TR (Alt: PUMH10-QAX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Transistors | 1247 |
|
RFQ |
Part Details for PUMH10-QAX

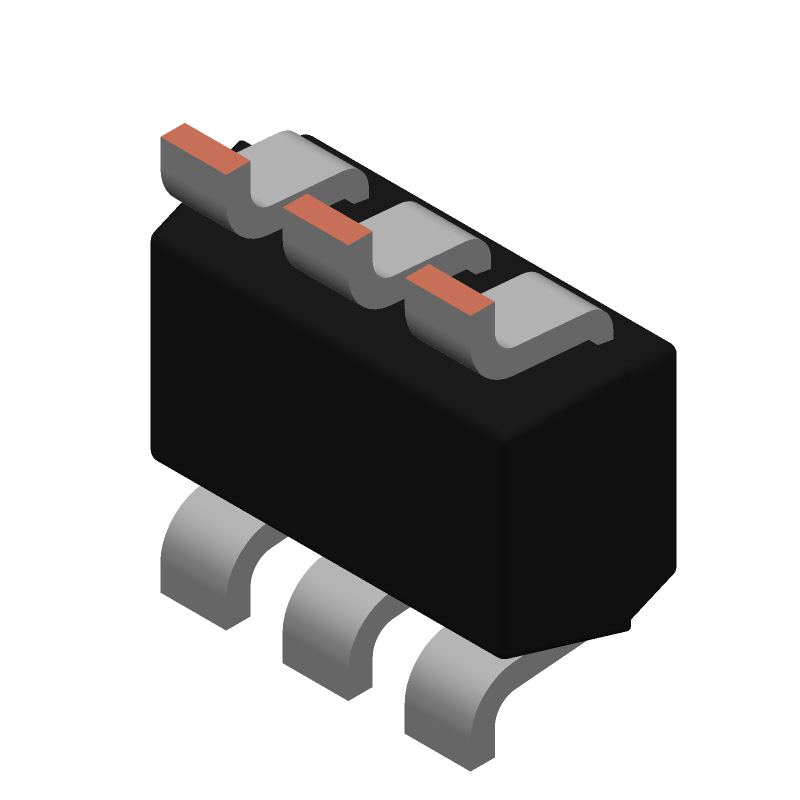

PUMH10-QAX CAD Models
PUMH10-QAX Part Data Attributes
|
|
PUMH10-QAX
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PUMH10-QAX
Nexperia
PUMH10-Q - NPN/NPN resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 47 kΩ@en-us TSSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | SC-88, SOT-363, TSSOP-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT363 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | BUILT-IN BIAS RESISTOR RATIO IS 21 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 2.5 pF | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PDSO-G6 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Reference Standard | AEC-Q101; IEC-60134 | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 230 MHz | |
| VCEsat-Max | 0.1 V |
