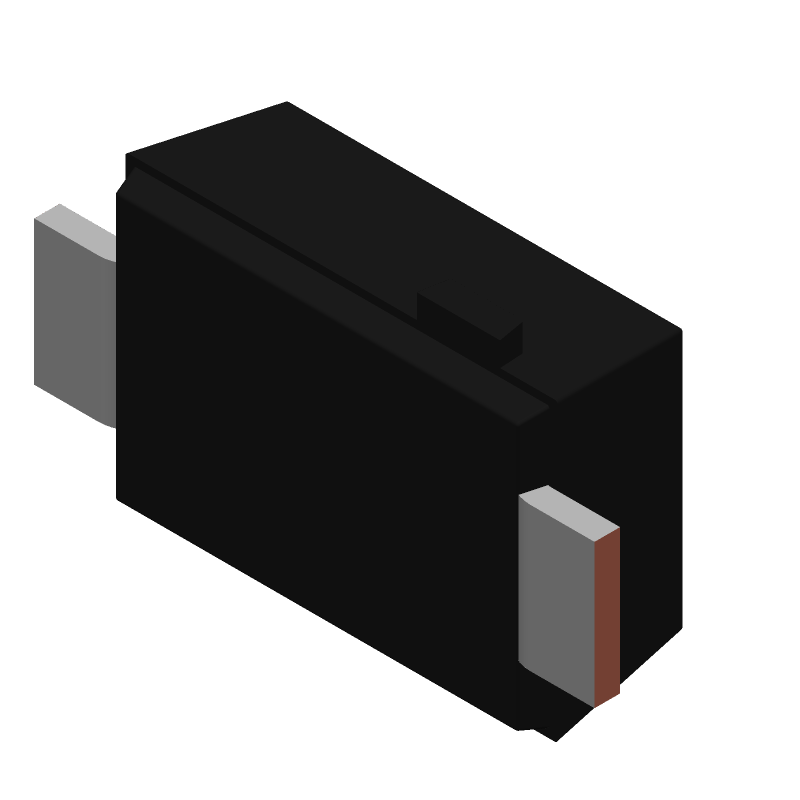

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PTVS5V0S1UR by Nexperia
Results Overview of PTVS5V0S1UR by Nexperia
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PTVS5V0S1UR Information
PTVS5V0S1UR by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PTVS5V0S1UR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 12 | 1275 |
|
$0.0900 / $0.4500 | Buy Now |
|
|
Cytech Systems Limited | 1000 |
|
RFQ |
Part Details for PTVS5V0S1UR
PTVS5V0S1UR CAD Models
PTVS5V0S1UR Part Data Attributes
|
|
PTVS5V0S1UR
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PTVS5V0S1UR
Nexperia
Trans Voltage Suppressor Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | PLASTIC PACKAGE-2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Breakdown Voltage-Max | 7 V | |
| Breakdown Voltage-Min | 6.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-2; IEC-61643-321 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
PTVS5V0S1UR Frequently Asked Questions (FAQ)
-
A good PCB layout for PTVS5V0S1UR involves keeping the device close to the protected circuit, using short and wide traces, and ensuring good thermal conductivity. A 4-layer PCB with a solid ground plane is recommended.
-
PTVS5V0S1UR is designed to handle high surge currents. It can absorb surge currents up to 500 A (8/20 μs) and clamp the voltage to a safe level, protecting the downstream circuitry.
-
The maximum operating temperature for PTVS5V0S1UR is 150°C. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
-
Yes, PTVS5V0S1UR is AEC-Q101 qualified, making it suitable for use in automotive applications. It meets the stringent requirements for reliability and performance in harsh automotive environments.
-
PTVS5V0S1UR is designed to withstand ESD strikes up to ±30 kV (IEC 61000-4-2). It can absorb the ESD energy and clamp the voltage to a safe level, protecting the downstream circuitry.
